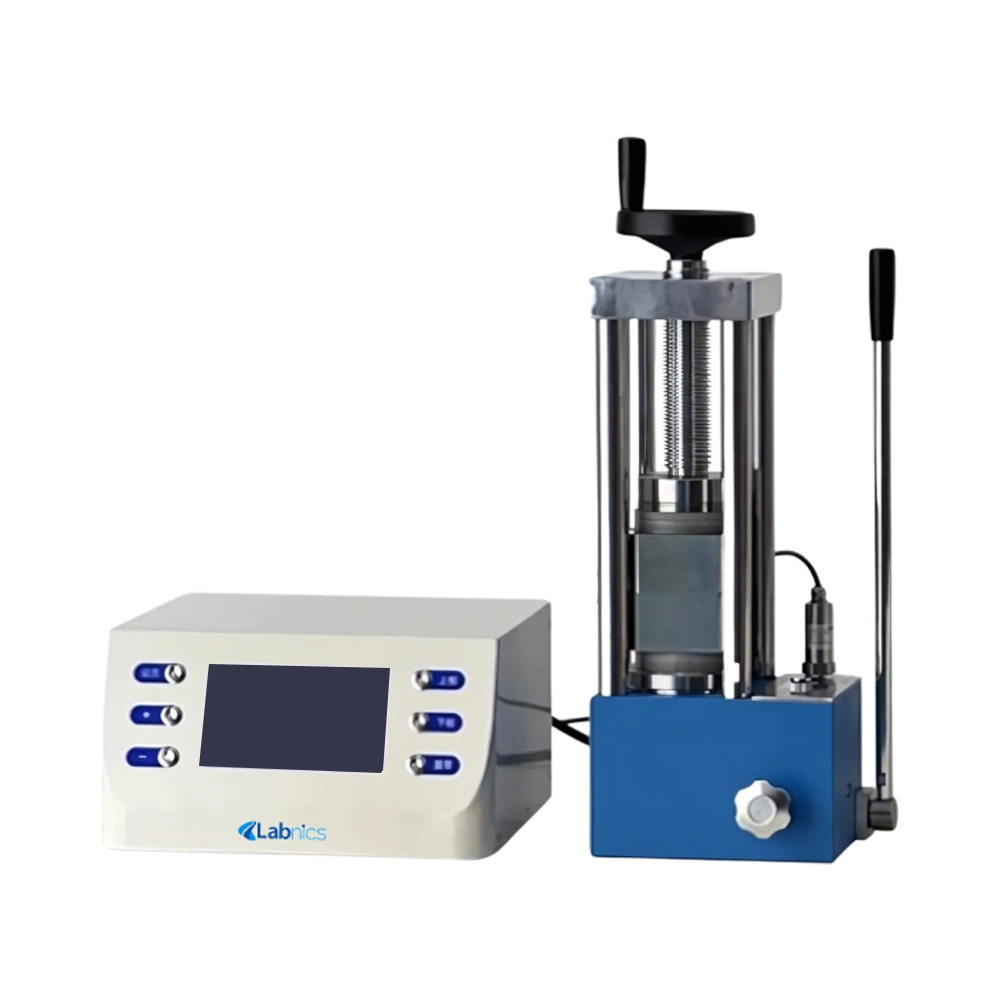

Manual Hot Press NMHP-101 is designed for making round pellet-shaped samples with a maximum temperature of 300 ℃. It offers a pressure range of 0 to 24T (0 to 34MPa) with a single heating platen for efficient sample preparation. Its design combines a manual pellet press with a heatable pellet pressing die set for versatile use. This press ensures uniform heating and pressure for high-quality, consistent pellets. Our model is built with a durable structure, ensuring reliable performance and long service life.
$17,500.00
Specifications
| Pressure Range | 0 to 24T (0 to 34 MPa) |
| Piston Diameter | 95 mm |
| Main overall structure | Main integrated sealing structure |
| Heating temperature | Room temperature -300℃ |
| Temperature controller accuracy | +/-0.1℃ |
| Pressure Holding time | ≥ 1S (has no time limit) |
| Insulation method | Imported insulation board |
| Cooling method | Quick cooling with water chiller |
| Power Consumption | 300 W |
| Power Supply | 110V, 60 Hz |
| Heating platen size | 100×100 mm |
| Unit Dimension (K×P×H) | 245×175×460 mm |
| Overall Dimensions (L×W×H) | 800 × 470 × 460 mm |
| Weight | 60 kg |
Features
Applications
Ask Expert
Manual Hot Presses are designed for producing round pellet-shaped samples with maximum temperatures of 300°C. They offer a high pressure for efficient sample preparations. These presses feature combinations of manual pellet presses for versatile operations. They include compact structures for easy handling and laboratory uses. Our models ensure stable performances and precise temperature controls for consistent results.
