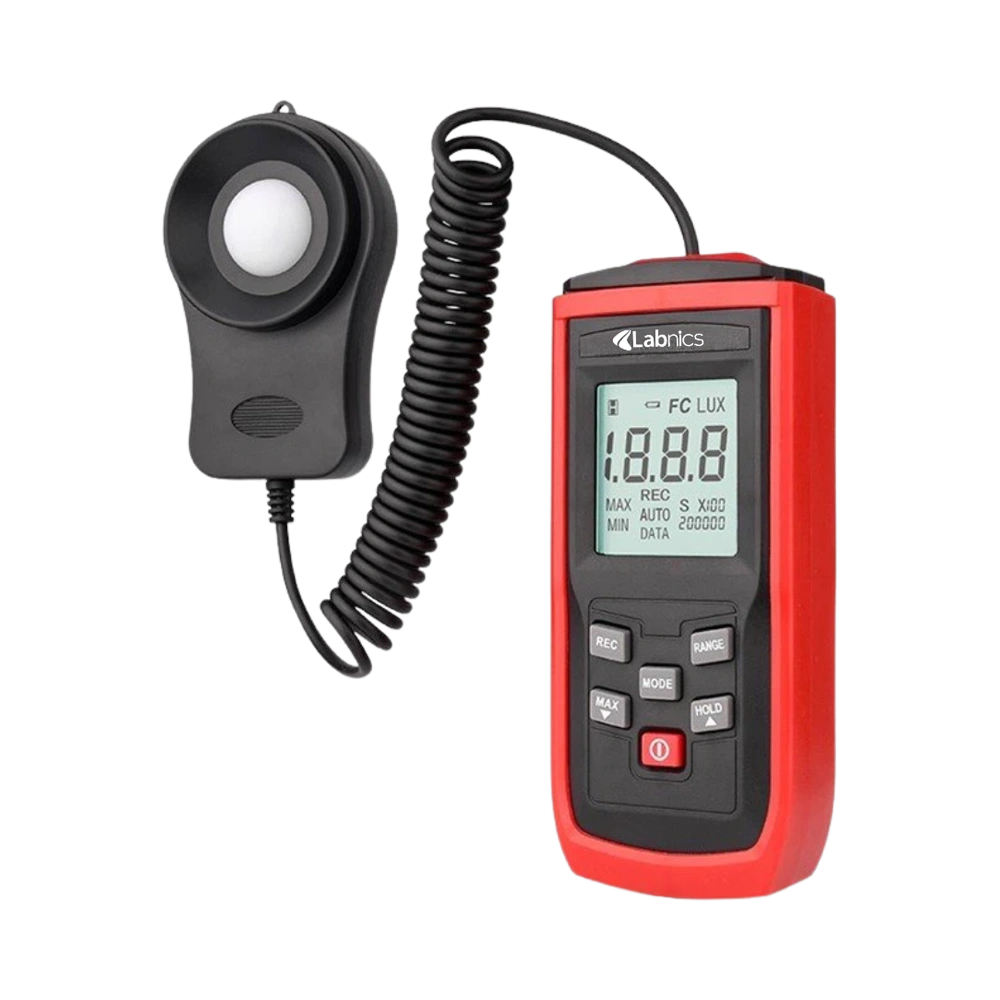

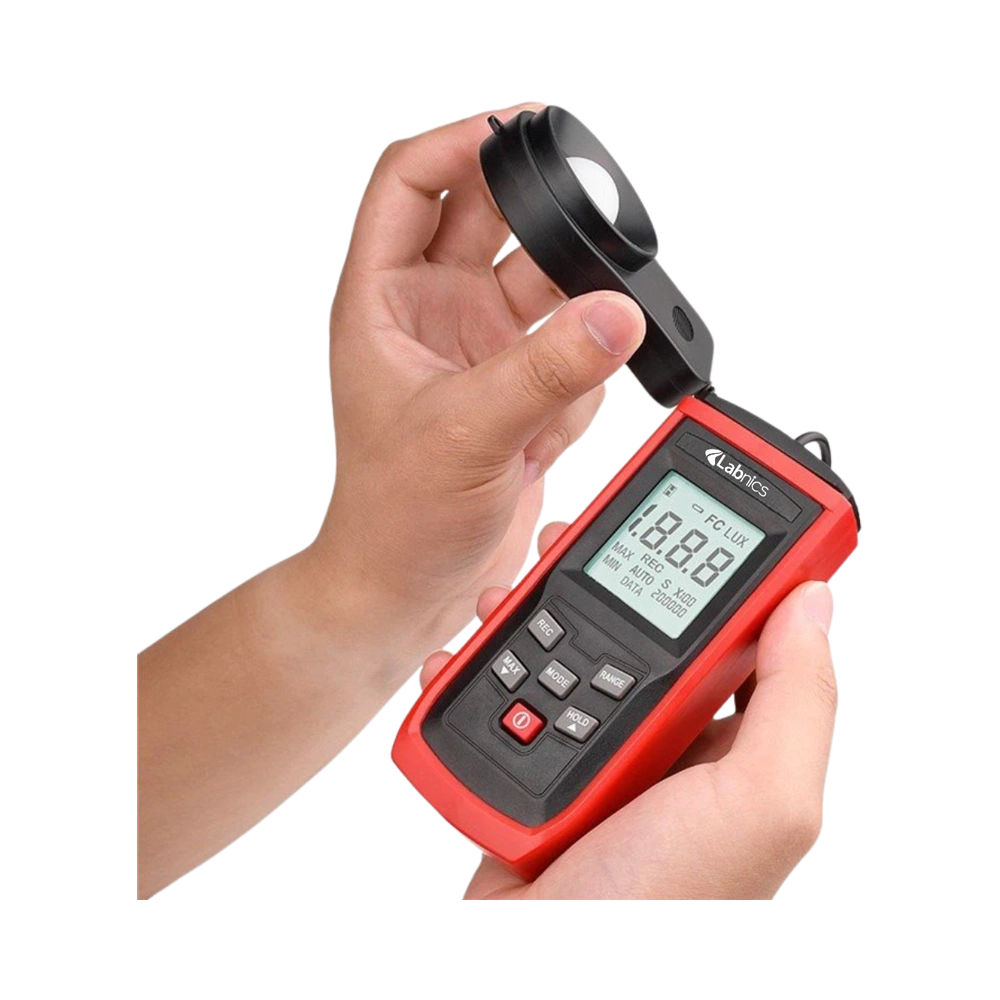

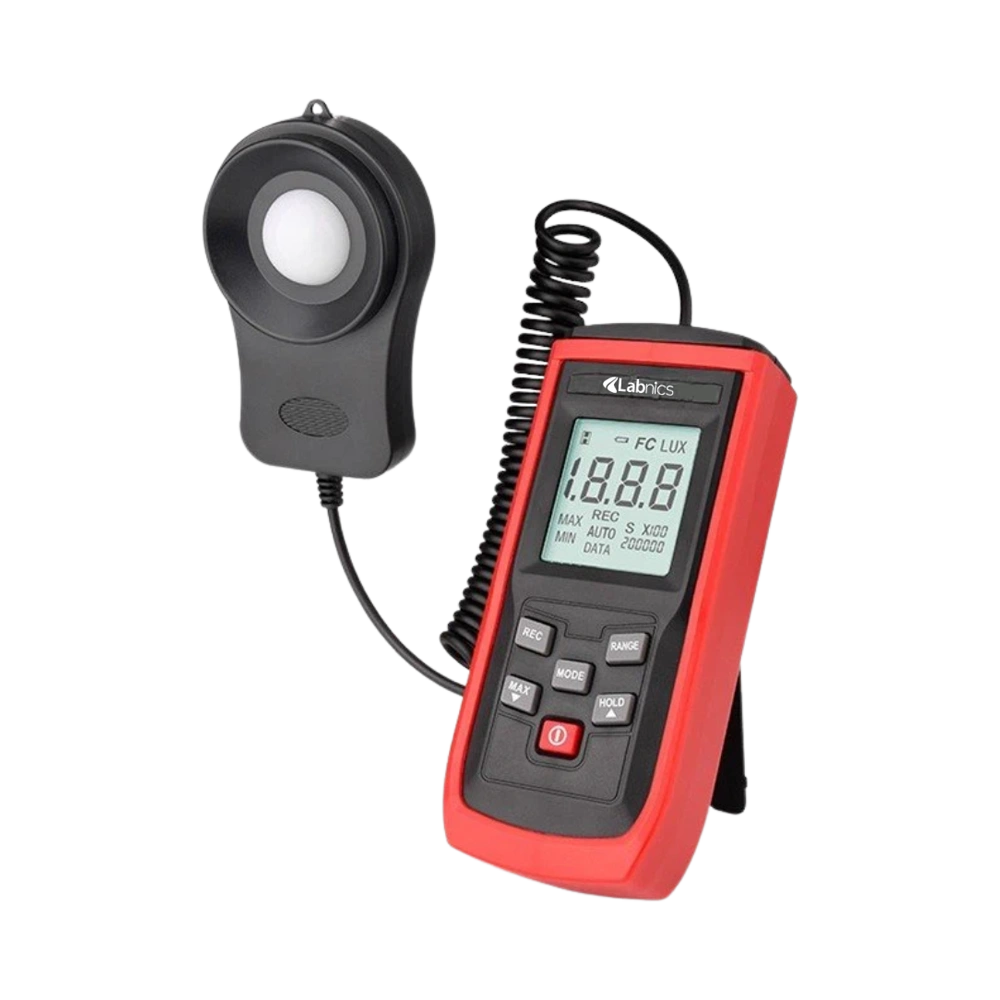

Lux Meter NLXM-204 is designed with a 120-degree incident angle and ensures a test deviation of ±2 percent. It features a large digital screen for clear and easy reading of measurements. This unit offers manual and automatic range switching for flexible operation. It includes an elastic extension cable that allows convenient positioning during use. Our lux meter offers a value hold function to freeze readings on the screen during measurement.
$875.00
Specifications
| Measurement Range | 0.1 to 200000 Lux / 0.01 to 20000 Fc |
| Measuring Levels | 200, 2000, 20000, 200000 Lux; 200, 2000, 20000 Fc |
| Accuracy | ±(3% + 10), calibrated at 2856 K |
| Resolution | Lux: <200: 0.1; ≥200: 1 Fc: <200: 0.01; ≥200: 1 |
| Display | 4-digit, max 1999 |
| Display Size | 34 × 31 mm |
| Sensor Type | Digital light probe with filters |
| Sampling Rate | 2 times per second |
| Incident Angle | 120° |
| Test Deviation | ±2% |
| Temperature Range | -10 to 50°C |
| Operating Humidity | Up to 80% RH, altitude <2000 m |
| Storage Conditions | -10 to 50°C, max 70% RH (battery removed) |
| Spectral Range | 400 to 700 nm |
| Data Storage | 50 groups |
| Power Supply | 2 × 1.5V AAA batteries |
| Dimensions | 24 × 9.5 × 5.5 cm |
| Weight | 0.31 kg |
Features
Applications
Ask Expert
FAQ for Lux Meter NLXM-204
1: What does the value hold function do in the Lux Meter NLXM-204?
The Lux Meter NLXM-204 includes a value hold function that freezes the current reading on the display, making it easier to record results even if the lighting conditions change or the device is moved.
2: Does the Lux Meter NLXM-204 support automatic range selection?
Yes, the Lux Meter NLXM-204 is equipped with both manual and automatic range switching, enabling smooth transitions between different light levels without manual adjustment.
3: What should I do if the display on the Lux Meter NLXM-204 becomes unclear?
If the display of the Lux Meter NLXM-204 appears dim or unclear, check the battery level. The built-in low battery indicator will alert you when the batteries need replacement.
4: What is the purpose of the 120-degree incident angle in the Lux Meter NLXM-204?
Our Lux Meter NLXM-204 features a 120-degree incident angle to capture a wider spread of light, allowing for accurate and consistent measurements in various lighting environments.
5: How should I maintain the Lux Meter NLXM-204 for long-term use?
To maintain the Lux Meter NLXM-204, keep it in a dry environment, remove the batteries during long-term storage, and clean the sensor regularly to preserve measurement accuracy.
