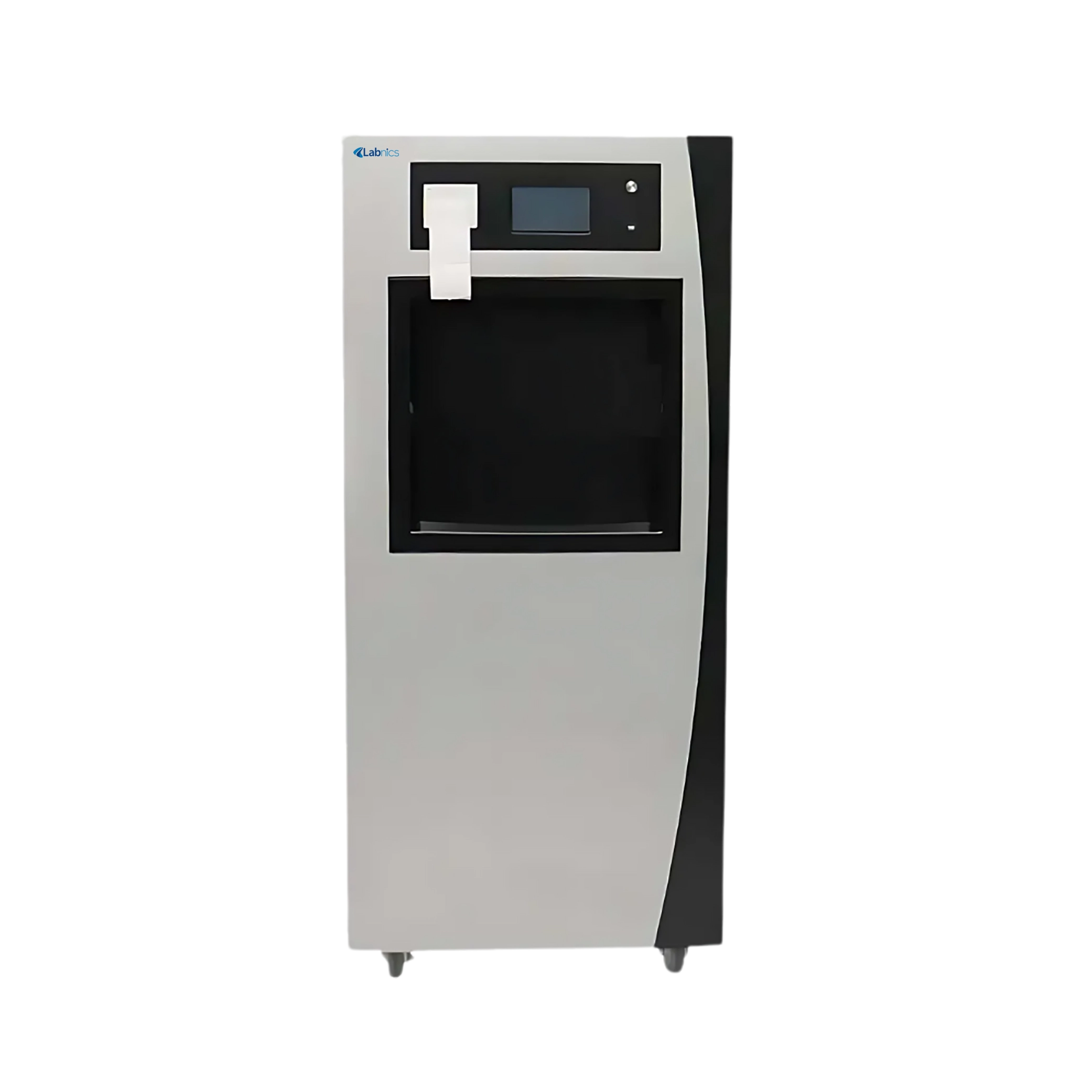

Low Temperature Plasma Sterilizer NLTPS-202
Low Temperature Plasma Sterilizer NLTPS-202 offers a spacious 192L chamber, providing ample space for sterilization. It is made from 304 stainless steel or 5052 aluminum alloy to ensure long-lasting performance. Our unit uses two layers of aluminum alloy punching plates to load items for the process. It includes a high-strength vacuum pump that is durable and resistant to H₂O₂. This sterilizer features an oil mist filtration system to reduce fuel consumption and prevent oil mist leakage.
| Capacity | 192L |
| Type | Capsule |
| Sterilization temperature | 45 to 60℃ |
| Sterilization agent | 60% H₂O₂ |
| Sterilization cycle |
Fast sterilization: ≤30 min Standard sterilization: ≤50min Enhanced sterilization: ≤60min |
| Sterilization time | 30 to 60mins |
| Working pressure | -50pa |
| Highest anti-pressure value | 10pa |
| Vacuum pump system | Yes |
| Installation environment temperature | 5 to 45°C |
| Heating method | Electric |
| Master controller | Siemens PLC control |
| Display | 7-inch LCD touchscreen |
| Loading method | 2 layers of aluminum alloy punching plate loaded with sterile items |
| Chamber material | 304 Stainless steel/ 5052 aluminum alloy |
| Carton material | Carbon steel baking plastic powder and ABS |
| Electrode material | 5052 Aluminum alloy |
| Sealing door material | 5052 Aluminum alloy |
| Alarm system | High & low-temperature alarming system |
| Door | Automatic vertical sliding door with anti-pinch function |
| Door open mode | Using mandrel drive electric lift door |
| Foot switch | Yes |
| Printer | Yes |
| Operation height | ≤160cm |
| Air filter accuracy | ≤0.2µm |
| Power consumption | 4.3kW |
| Power supply | AC220V, 50Hz |
| Chamber dimension | 820×510×460mm |
| Packaging dimension | 1270×910×1880mm |
| Net weight | 390kg |
| Gross weight | 450kg |
Low Temperature Plasma Sterilizer NLTPS-202 is used to sterilize materials by utilizing low-temperature hydrogen peroxide vapor to kill microorganisms. It is widely applied in hospitals, laboratories, pharmaceutical industries, and research facilities where precise sterilization is essential.
Labnics Low Temperature Plasma Sterilizers use ionized gas for safe and effective sterilization. They maintain precise thermal control to ensure consistent disinfection. These units include safety features such as pressure and temperature monitoring, leak detection, and automatic shut-off. They are fully automated, ensuring reliable sterilization with minimal human intervention. Our low temperature plasma sterilizers come with an LCD touchscreen display for easy and user-friendly operation.
| Maximum central temperature | 825℃±50℃ |
| Low grade temperature | 480℃ |
| Warm-up time | 20 minutes to maximum temperature |
| Sterilization time | 5 to 7 seconds |
