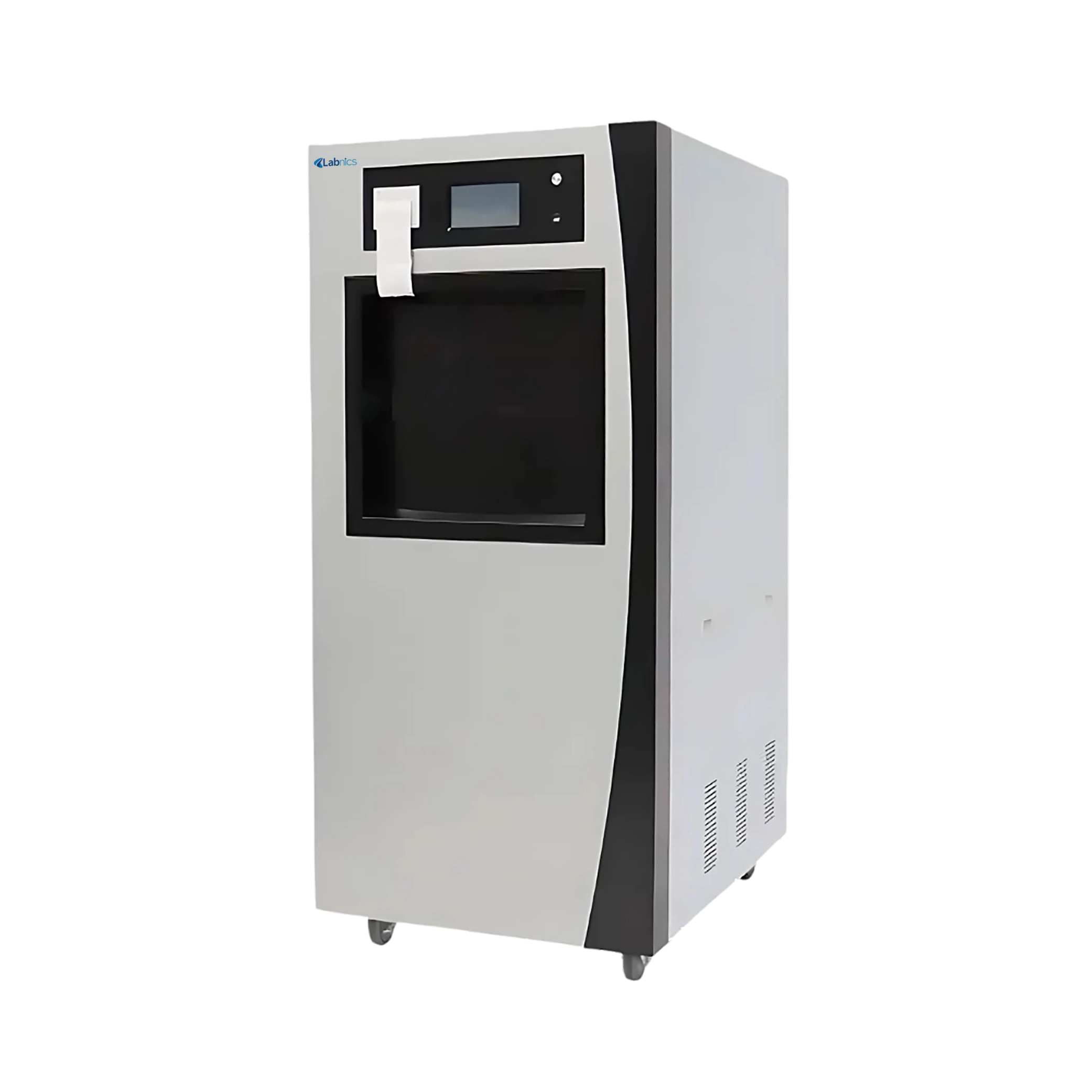

Low Temperature Plasma Sterilizer NLTPS-202 Catalog

FEATURES

• ⇋ Siemens PLC control for automation
• ⇋ LCD touchscreen for easy operation
• ⇋ High and low-temperature alarm system
• ⇋ Automatic door with anti-pinch function
• ⇋ Low thermal conductivity insulation material
• ⇋ High-quality pressure and temperature sensors
• ⇋ Compact design with easy mobility

SPECIFICATIONS

Capacity	192L
Type	Capsule
Sterilization temperature	45 to 60℃
Sterilization agent	60% H₂O₂
Sterilization cycle	Fast sterilization: ≤30 min Standard sterilization: ≤50min Enhanced sterilization: ≤60min
Sterilization time	30 to 60mins
Working pressure	-50pa
Highest anti-pressure value	10pa
Vacuum pump system	Yes
Installation environment temperature	5 to 45°C
Heating method	Electric
Master controller	Siemens PLC control
Display	7-inch LCD touchscreen
Loading method	2 layers of aluminum alloy punching plate loaded with sterile items
Chamber material	304 Stainless steel/ 5052 aluminum alloy
Carton material	Carbon steel baking plastic powder and ABS
Electrode material	5052 Aluminum alloy
Sealing door material	5052 Aluminum alloy
Alarm system	High & low-temperature alarming system
Door	Automatic vertical sliding door with anti-pinch function
Door open mode	Using mandrel drive electric lift door
Foot switch	Yes
Printer	Yes
Operation height	≤160cm
Air filter accuracy	≤0.2µm
Power consumption	4.3kW
Power supply	AC220V, 50Hz
Chamber dimension	820×510×460mm
Packaging dimension	1270×910×1880mm
Net weight	390kg
Gross weight	450kg

APPLICATIONS

Low Temperature Plasma Sterilizer NLTPS-202 is used to sterilize materials by utilizing low-temperature hydrogen peroxide vapor to kill microorganisms. It is widely applied in hospitals, laboratories, pharmaceutical industries, and research facilities where precise sterilization is essential.
