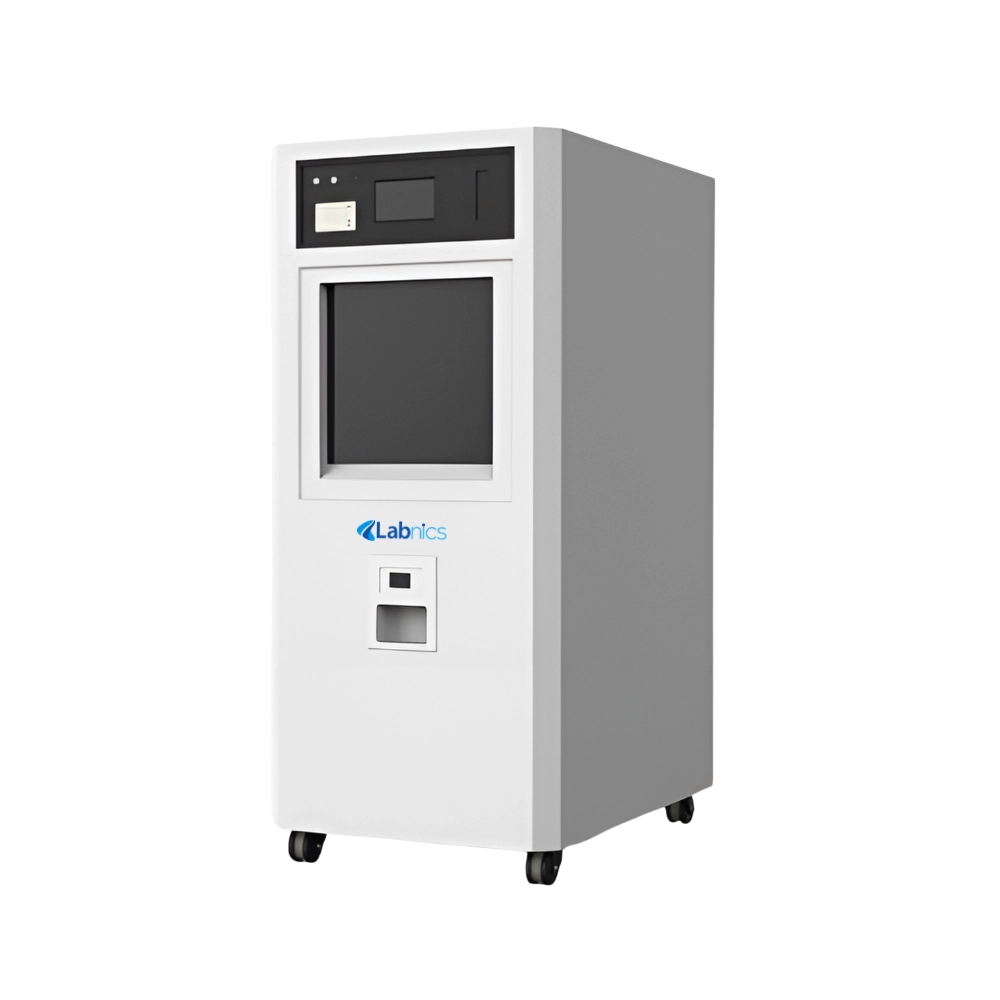

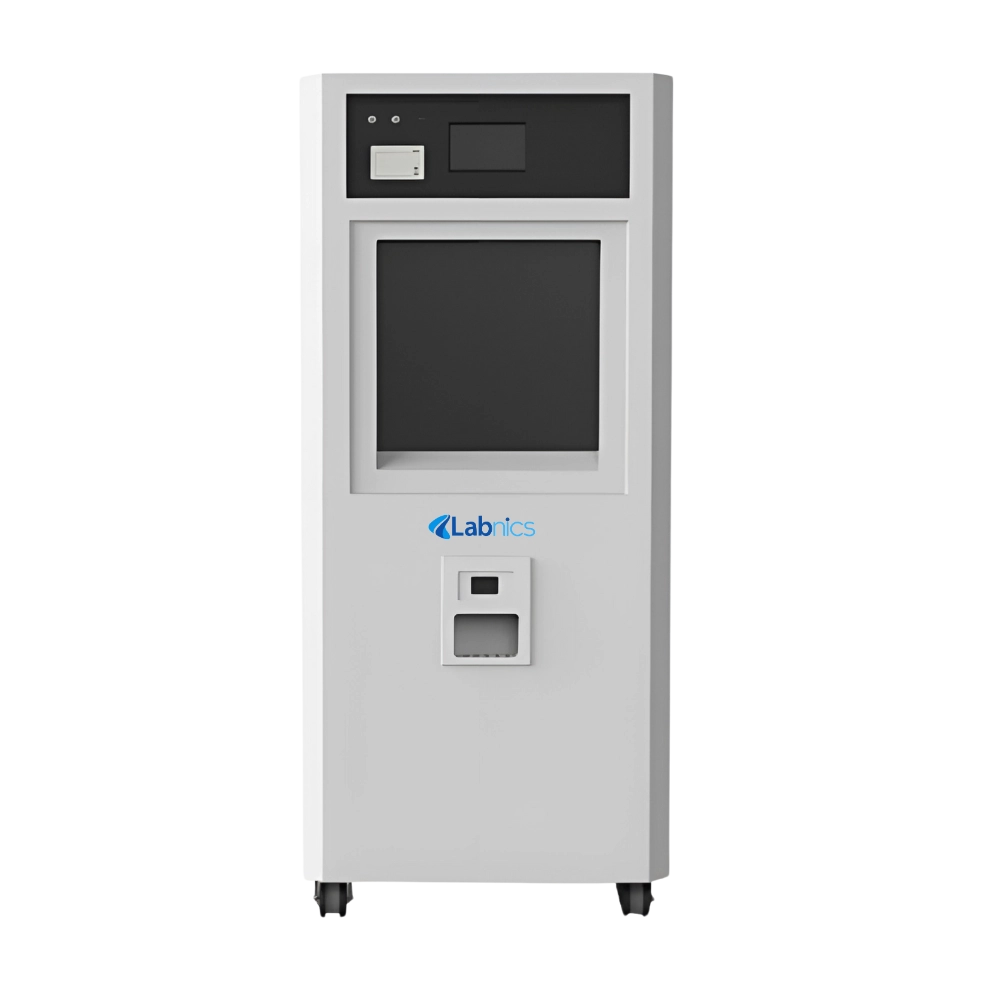

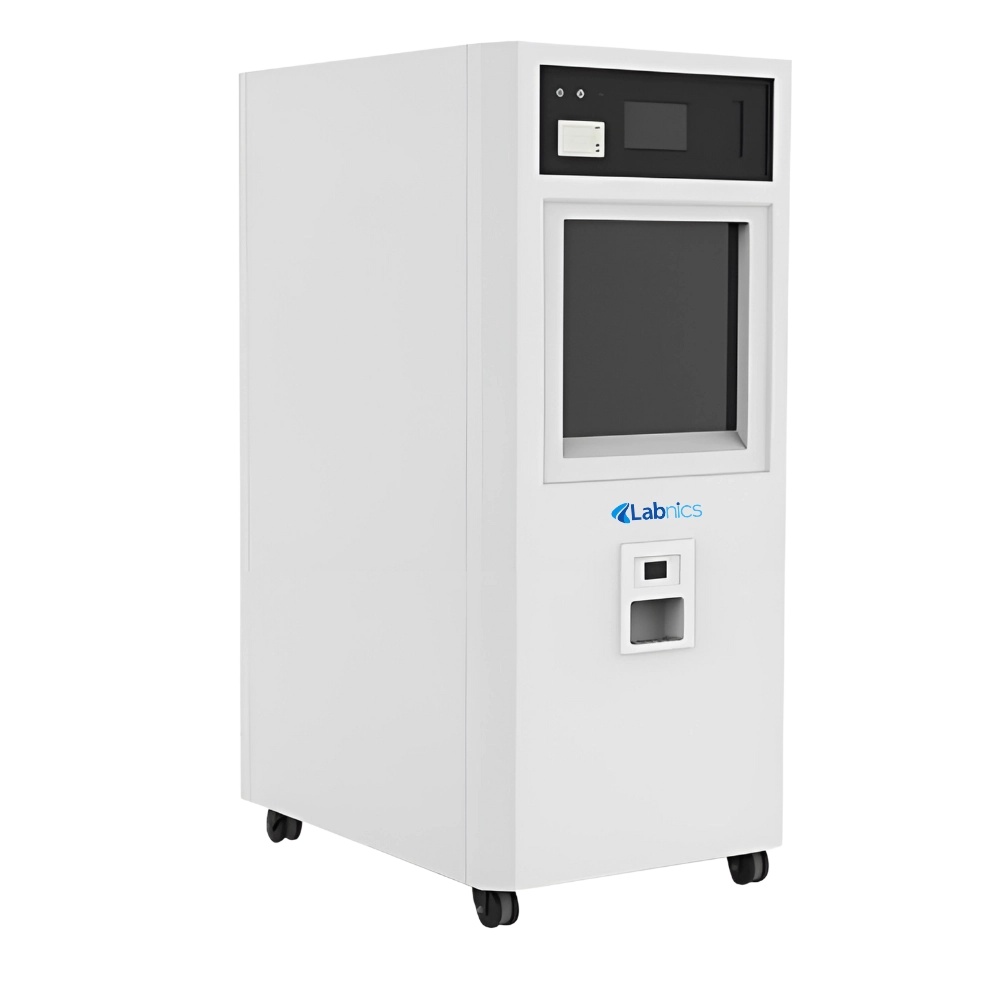

Low Temperature Plasma Sterilizer NLTPS-102
Low Temperature Plasma Sterilizer NLTPS-102 is designed with a 128L chamber, providing effective and efficient sterilization. It uses 12 vials of 60% H₂O₂ per cassette for precise sterilant delivery. This unit comes with an independently controlled biological indicator incubator for monitoring the effectiveness of the process. It is equipped with a high-efficiency H₂O₂ filter at the exhaust outlet to prevent sterilant leakage into the environment. It includes a mandrel drive electric lifting door with a double-layer seal to ensure airtight operation.
Capacity | 128L |
Type | Cassette |
Sterilization temperature | 50°C ± 5℃ |
Sterilization agent | 60% H2O2 |
Sterilization cycle |
Fast sterilization: ≤25 min Standard sterilization: ≤35min Enhanced sterilization: ≤55min |
H2O2 filling method |
Cassette, 12 vials of H2O2/cassette New cassette: Automatic delivery Used cassette: Automatic ejection |
Master controller | PLC control |
Display | 7-inch LCD touchscreen |

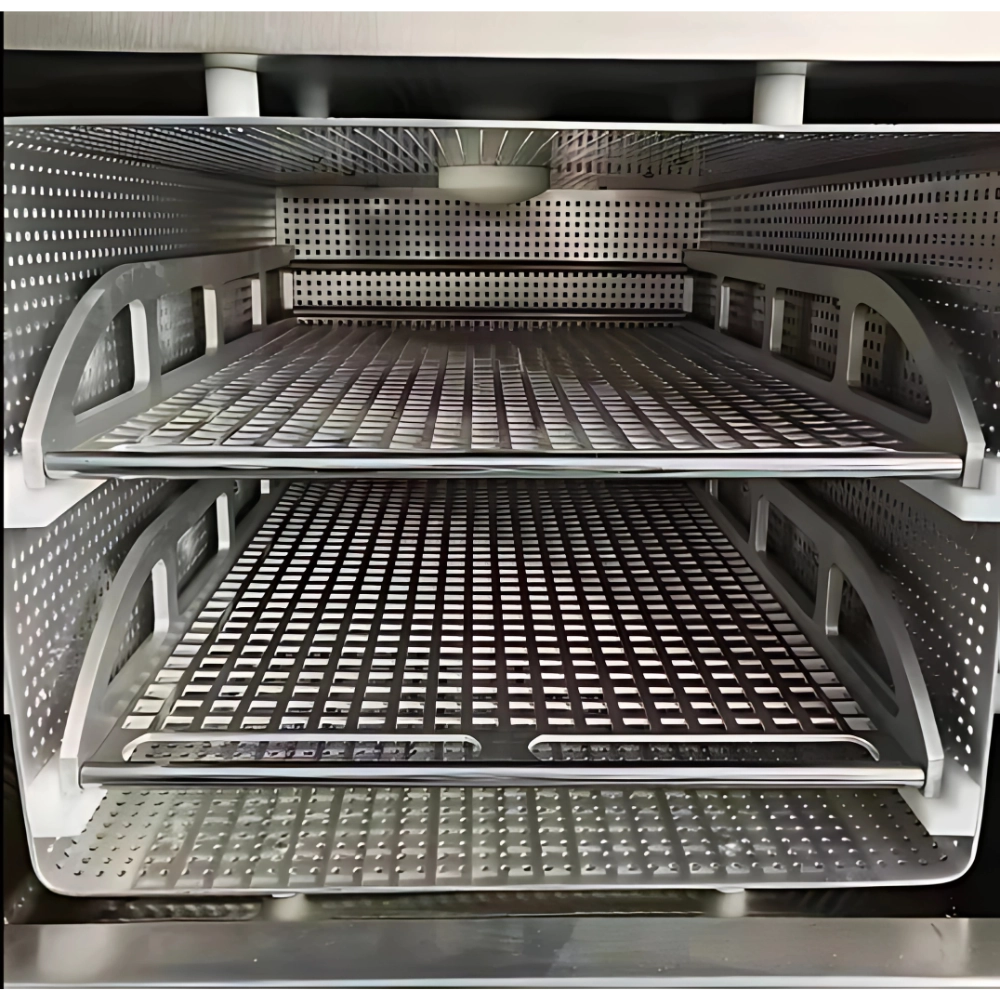

Loading method | 2 layers of aluminum alloy punching plate loaded with sterile items |
Test methods | Biological monitoring of Bacillus subtilis and Bacillus stearothermophilus |
Biological indicator cultivator | Yes |
Alarm system | High & low temperature alarming system |
Door | Automatic vertical sliding door with anti-pinch function |
Door number | Single-door/Double-door |
Power consumption | 500W |
Power supply | 110/220V, 50/60Hz |
Chamber dimension | 700×480×380mm |
External dimension | 890×780×1590mm |
Packaging dimension | 980×820×1820mm |
Gross weight | 283kg |
Low Temperature Plasma Sterilizer NLTPS-102 is used to eliminate microorganisms without harming heat-sensitive materials. It is applied in healthcare, pharmaceuticals, biotechnology, food processing, aerospace, electronics, and even medical device manufacturing.
Labnics Low Temperature Plasma Sterilizers use ionized gas for safe and effective sterilization. They maintain precise thermal control to ensure consistent disinfection. These units include safety features such as pressure and temperature monitoring, leak detection, and automatic shut-off. They are fully automated, ensuring reliable sterilization with minimal human intervention. Our low temperature plasma sterilizers come with an LCD touchscreen display for easy and user-friendly operation.
Maximum central temperature | 825℃±50℃ |
Low grade temperature | 480℃ |
Warm-up time | 20 minutes to maximum temperature |
Sterilization time | 5 to 7 seconds |
