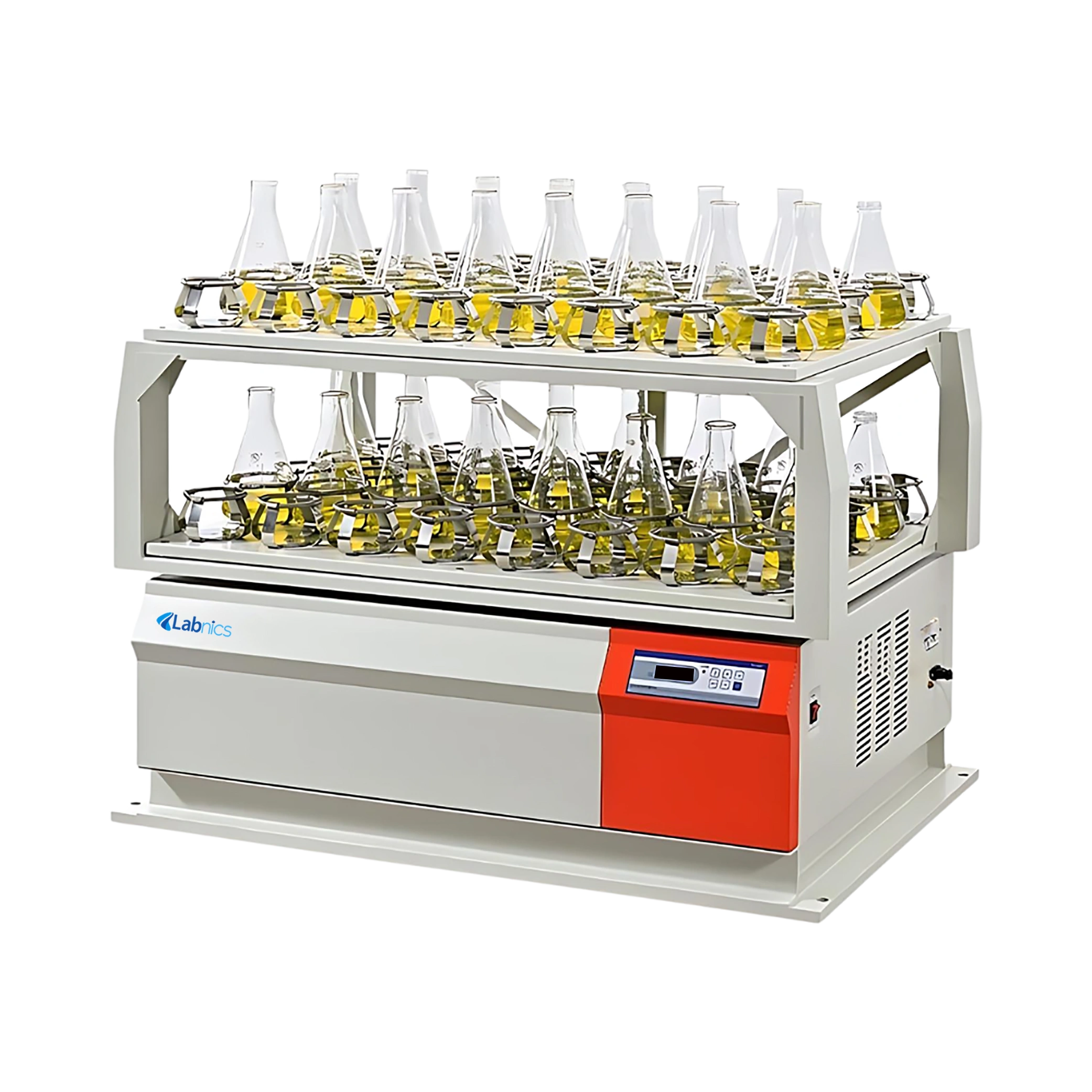

Large Capacity Orbital Shaker NLOS-201 provides a large maximum loading capacity of 1000 ml×80, 500 ml×120, and 250 ml×192. It operates with rotary motion at a speed range of 30 to 300 rpm, ensuring precise agitation. This unit features a 50 mm throw to deliver effective orbital shaking. It employs P.I.D. microcomputer control for accurate performance. Our shaker ensures intelligent operation through a touch screen, offering intuitive monitoring and user-friendly control.
$7,375.00
Specifications
| Maximum loading capacity | 1000ml×80 500ml×120 250ml×192 |
| Tray quantity | 2 |
| Rotation way | Rotary |
| Rotation speed | 30 to 300rpm |
| Rotation accuracy | ±1 rpm |
| Throw | 50mm |
| Curve editing | 8-segment rotational speed programming setting |
| Timing range | 0 to 9999H/0 to 9999min |
| Display | 7-inch TFT touch screen HD |
| Control | P.I.D microcomputer |
| Circulation mode | Natural convection |
| Drive mode | Single-axis balanced drive |
| Safety function | Emergency stop, hardware interlock, software interlock, overspeed and stall audible and visual alarms, short circuit, electric leakage, and overload protection devices. |
| Bearings | NSK original imported double row bearings |
| Power consumption | 290W |
| Power supply | 220V±10%, 50/60Hz |
| Tray size | 1108×740mm |
| External dimension | 1270×810×840mm |
| Net weight | 476 kg |
Features
Applications
Ask Expert
FAQ for Large Capacity Orbital Shaker NLOS-201
1: Is the Large Capacity Orbital Shaker NLOS-201 suitable for long-term heavy-duty use?
Our Large Capacity Orbital Shaker is built with a heavy-duty mechanical core made of finely processed ductile iron and NSK imported bearings. This construction provides stability, low vibration, and long operational life. It maintains consistent performance even under continuous high-capacity usage.
2: Can the Large Capacity Orbital Shaker export experiment data?
The Large Capacity Orbital Shaker offers optional USB data export and 3Q verification. This allows easy record-keeping and compliance with quality standards. It also helps in maintaining accurate documentation for reproducibility and reporting.
3: How quiet is the operation?
Our Large Capacity Orbital Shaker uses single-axis five-dimensional dynamic balance technology, which minimizes mechanical friction and vibration. This ensures low-noise operation suitable for shared laboratory environments. It delivers smooth agitation without disturbing other activities.
4: How do I maintain the Large Capacity Orbital Shaker NLOS-201 for long-term use?
Our Large Capacity Orbital Shaker requires minimal maintenance due to its durable construction and high-quality components. Regularly cleaning the trays and checking for dust or debris ensures smooth operation. It is also recommended to inspect bearings and electrical connections periodically to prevent unexpected downtime.
5: What should I do if the Large Capacity Orbital Shaker stops unexpectedly?
Our Large Capacity Orbital Shaker has built-in safety features that automatically stop operation in case of overspeed, stall, leakage, or overload. It is important to check the alerts on the touch screen to identify the issue. Following the user manual to reset the system usually resolves most interruptions safely.
6: Is the Large Capacity Orbital Shaker safe to operate?
Our Large Capacity Orbital Shakers include secure tray clamps and safety features to prevent spillage or sample accidents. They can be operated confidently, even with large or heavy sample loads. This enhances both safety and reliability in busy lab settings.
7: How easy is the Large Capacity Orbital Shaker to clean and maintain?
The Large Capacity Orbital Shakers are designed with smooth surfaces and removable trays, making cleaning fast and straightforward. Hygiene standards can be maintained without complicated procedures. Regular maintenance is simple, ensuring long-term reliable operation.
8: How precise is the shaking motion?
The Large Capacity Orbital Shakers provide smooth and uniform orbital motion, ensuring thorough mixing without disturbing the samples. Results remain consistent and reliable. This precision is especially important for sensitive experiments.
9: Is the Large Capacity Orbital Shaker suitable for sensitive biological samples?
Our Large Capacity Orbital Shakers provide gentle, controlled shaking options suitable for delicate cell cultures and biological samples. Sensitive materials can be handled without risk of damage. This makes them ideal for both research and clinical labs.
Labnics Large Capacity Orbital Shakers support multiple flasks and bottles simultaneously, allowing efficient handling of large sample volumes. They provide adjustable speed for gentle to vigorous shaking. These units feature two or more trays to maximize workspace efficiency.
They are made of durable, corrosion-resistant materials for long-lasting performance.
Our shakers include digital controls for easy monitoring of speed and time.
