| Flow Range |
0.0079 to 756.99 mL/min |
| Flow Resolution |
0.01 mL/min |
| Speed Range |
0.1 to 150 RPM |
| Speed Resolution |
0.01 RPM |
| Dispensing Volume |
0.1 to 9999 mL |
| Volume Resolution |
0.01 mL |
| Dispensing Time |
0.1 to 9999s |
| Pause Time |
0.1 to 9999s |
| Time Resolution |
0.01s |
| Repeat Number |
1 to 9999 times |
| Motor type |
stepper motor |
| Display |
4.3-inch industrial grade |
| Temperature Range |
0 to 40°C |
| Relative Humidity |
<80% |
| Working Mode |
Flow rate and dispensing mode |
| Control Method |
Touch screen and Mechanical keypad |
| Keypad Lifespan |
300,000 times |
| Flow Rate Accuracy |
<±0.5% |
| Back Suction Angle |
0 to 360° |
| External Control |
0 to 5 V, 0 to 10 V, 4 to 20 mA (option) |
| Output Interface |
Output motor working status (open-collector output) |
| Communication Interface |
RS232/RS485 support MODBUS protocol (RTU mode) |
| Start/Stop, Direction Signal |
Passive switch input (e.g., foot pedal) |
| Active Switch Signal |
Default 5V to 24V active input |
| Power Consumption |
<80 W |
| Dimension |
259 × 157 × 237 mm |
| Weight |
4.40 kg |

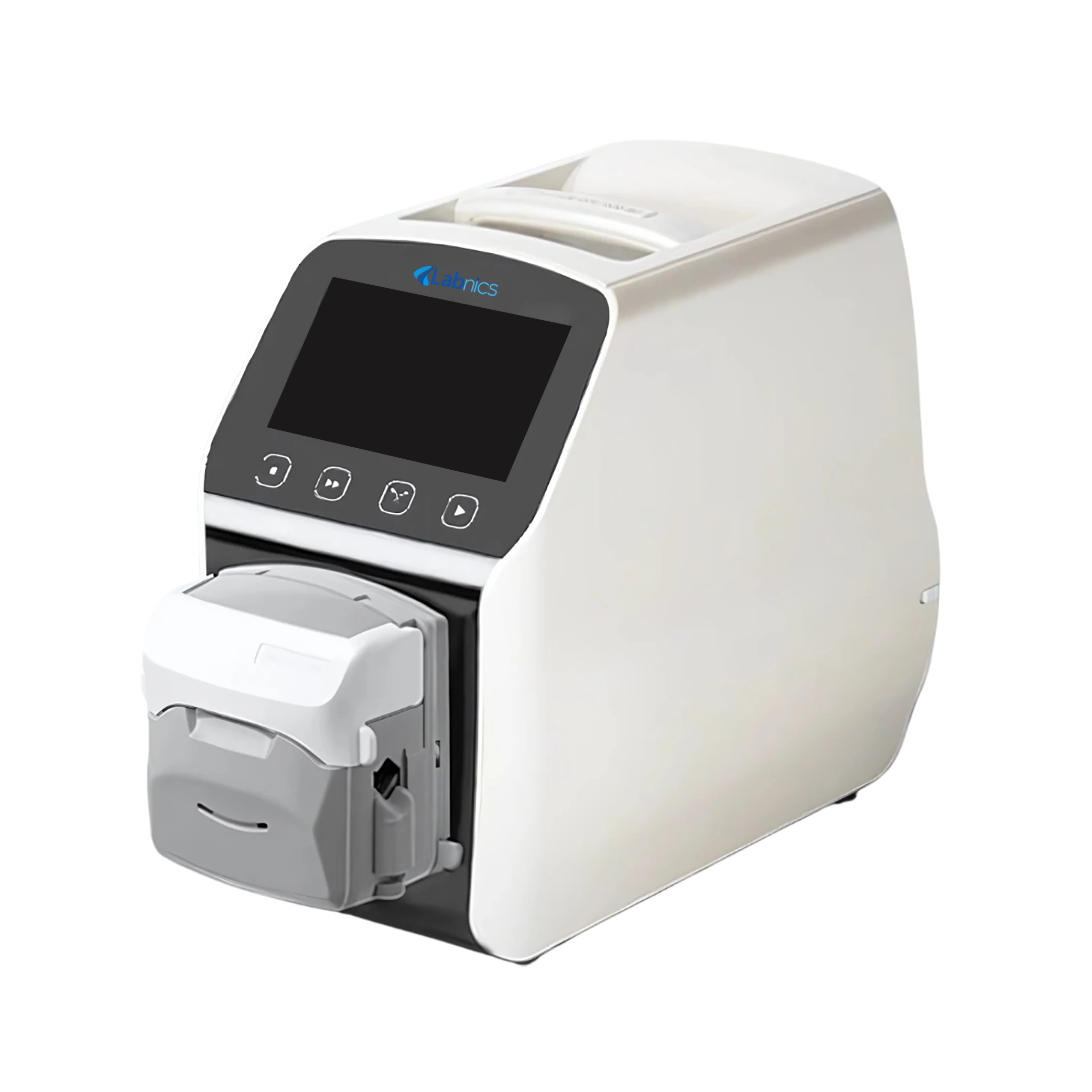

Intelligent Flow Peristaltic Pump NIFPP-403 is ideal for laboratory use, instrument calibration, and industrial production requiring precise and programmable fluid transfer. It meets diverse dispensing needs with reliable control and flexibility.
FAQ for Intelligent Flow Peristaltic Pump NIFPP-403
1: What is the purpose of the timing distribution and repetition functions in the Intelligent Flow Peristaltic Pump NIFPP-403?
The timing distribution and repetition features of the Intelligent Flow Peristaltic Pump NIFPP-403 enable users to program fluid delivery schedules with precise intervals and repeat counts, enhancing process automation.
2: How does the quick filling function improve the efficiency of the Intelligent Flow Peristaltic Pump NIFPP-403?
The quick filling function in the Intelligent Flow Peristaltic Pump NIFPP-403 allows rapid cleaning of the hose and filling of the pipeline, reducing downtime during maintenance and improving operational efficiency.
3: What maintenance practices help extend the lifespan of the Intelligent Flow Peristaltic Pump NIFPP-403?
Regular use of the quick filling function, routine inspection of tubing, and avoiding overload conditions help maintain the Intelligent Flow Peristaltic Pump NIFPP-403’s performance and longevity.
4: How do the touch screen and mechanical keypad improve the operation of the Intelligent Flow Peristaltic Pump NIFPP-403?
Our Intelligent Flow Peristaltic Pump NIFPP-403 features a 4.3-inch true color LCD touch screen combined with a mechanical keypad, enabling intuitive control and easy parameter adjustments for enhanced user experience.
5: How can the Intelligent Flow Peristaltic Pump NIFPP-403 be integrated with industrial automation systems?
The Intelligent Flow Peristaltic Pump NIFPP-403 supports multiple external control signals and communication protocols such as 0-5V, 0-10V, 4-20mA analog inputs, RS232, RS485, and MODBUS, allowing easy integration into automated industrial networks.
