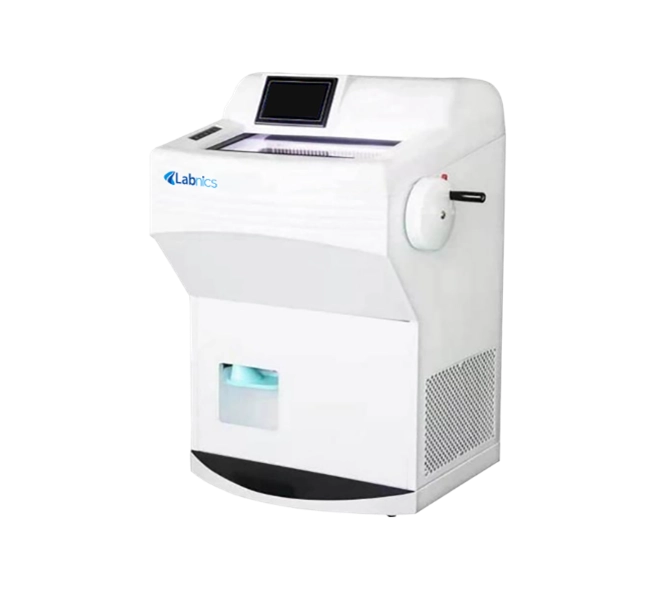

Cryostat Microtome NCRM-100

Name: Cryostat Microtome NCRM-100
Brand: Labnics
SKU: NCRM-100
Rating: 4.6 (364 reviews)

Cryostat Microtome NCRM-100 is a highly efficient and compact unit that offers vertical and horizontal movement of specimen. The unit is equipped with a LCD touch screen, a freezing specimen holder, a freezing tray, and a freezing knife for safe and reliable operation. Defrosting can be set in two different modes: automatic defrosting and manual defrosting. Designed with an easily detachable glass door that prevents condensation of water mist. Built with specimen orientation at 360° along the X-axis and 12° along the Y-axis.

Buy Now Download Catalog

Specifications

Freezing Room Temperature Control Range	0℃ to 50 ℃
Section Thickness	0.5 μm to 100 μm adjustable
Specimen Shrinkage Value	0 μm to 60 μm adjustable
Power Supply Voltage	AC 220 V ±10% 50 Hz
Machine Power	650 W
Vertical Movement of Specimens	60 mm
Horizontal Movement of Specimens	20 mm
Configuration	X axis 360° Y axis 12°

Features

✔ Color LCD touch screen displays operational parameters
✔ Specimens can move vertically 60mm and horizontally 20 mm
✔ Equipped with a hand wheel that can be locked at 360° arbitrary points
✔ CNC machine processing system ensures precise results
✔ Imported slicer bearing, double compressor, refrigeration box, cold table, tool rest, and sample head are installed
✔ An environmentally friendly fluorine-free refrigerant is used
✔ Defrosting can be set in two different modes: automatic defrosting and manual defrosting with UV disinfection
✔ Precooling table with a capacity of 26 specimens at once
✔ Built with two semi-conductor refrigeration points to ensure reliability
✔ Freezer temperature can be controlled automatically between -5°C and -15°C
✔ Specimen orientation at 360° along the X-axis and 12° along the Y-axis
✔ Positioning with a single key, reducing manual cutting time, and increasing cutting speed
✔ Easy-to-operate computer control function with efficient double compression system
✔ Robust and stable design protects the user from accidents
✔ Easy to clean and install

Applications

Cryostat Microtome NCRM-100 are extensively used in Clinical fields, Research laboratories, Industrial laboratories, Pathology labs, Medical Institutions, Histology and Biology labs and many medical science applications.

Semi Automatic Microtome

Semi-Automatic Microtome NSAM-100

Sectioning Thickness Range (0.5 to 100 µm)	<table cellspacing="0" border="1"> <tbody> <tr> <td style="min-width:50px">0.5 to 2 μm</td> <td style="min-width:50px">0.5 μm increments</td> </tr> <tr> <td style="min-width:50px">2 to10 μm</td> <td style="min-width:50px">1 μm increments</td> </tr> <tr> <td style="min-width:50px">10 to 20 μm</td> <td style="min-width:50px">2 μm increments</td> </tr> <tr> <td style="min-width:50px">20 to 50 μm</td> <td style="min-width:50px">5 μm increments</td> </tr> <tr> <td style="min-width:50px">50 to 100 μm</td> <td style="min-width:50px">10 μm increments</td> </tr> </tbody> </table>
Trimming Section Thickness Range	5 to 500 μm
Cutting Speed	0 to 300 mm/s
Horizontal Specimen Stroke	20 mm

Automatic Microtome

Automatic Microtome NAME-100

Section Thickness	0.2 to 999 µm adjustable (accuracy: 0.2μm)
Trimming Thickness	0.2 to 999 µm adjustable
Retraction Distance	0.2 to 999 µm adjustable
Paraffin Chuck Head Up and Down Moving Distance	≥60 mm
