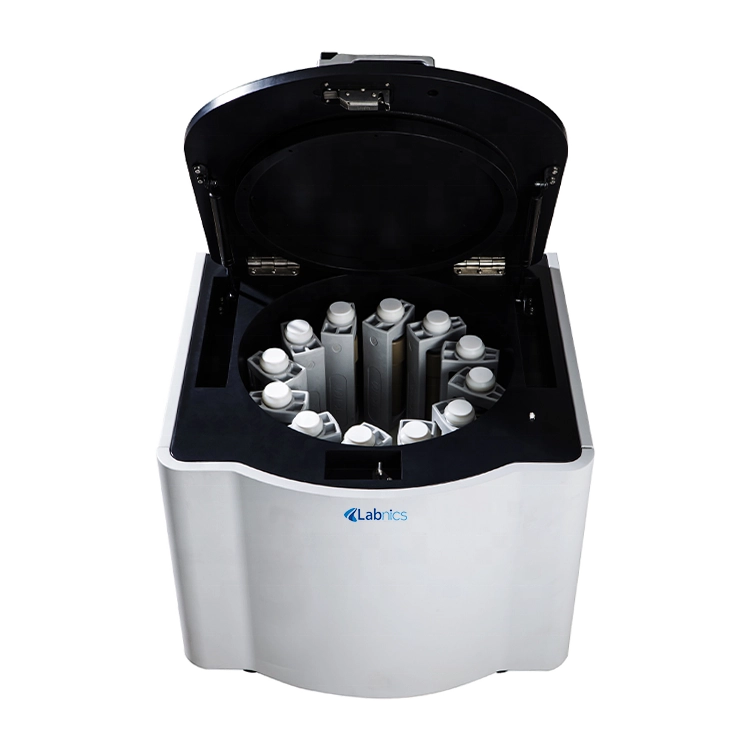

Microwave Digestion System NMDS-200

Microwave Digestion System NMDS-200

Microwave Digestion System NMDS-200

Microwave Digestion System NMDS-200 is an instrument used in sample preparation for superior trace elemental analysis. Equipped with variable frequency resonance microwave heating system, it prepares samples in less time than traditional methods and is therefore an instrument of choice for sample preparation. It also saves on usage of acid required for sample digestion and also retains the volatile elements. This instrument is used in labs to ensure accurate sample analysis and quick results.

Specifications
Sample vessel 12 / batch
Vessel volume 100 mL
Microwave power 0-3000W, adjustable
Microwave frequency 2450MHz
Microwave leak <5mw/ cm²
Digestion method Microwave heating
Temperature range 50°C-400℃
Temperature accuracy ±0.3℃
Pressure control range 0-10 Mpa
Pressure accuracy ± 0.01 Mpa
Maximum pressure 20 Mpa
Vessel Pressure capacity 20 Mpa
Display 7" LCD screen
Control mode Touch screen
Power supply AC 220V ±10% 50Hz
Dimension 630 × 630 × 590 mm
Weight 70 kg
Features
Applications

Employed in food, textile, plastic, geological, metallurgical, coal, biological medicine, petroleum chemical industry, environmental monitoring, sewage treatment, battery manufacturing, cosmetics, etc.

Buy Now

Microwave Digestion system


Graphite Block Digester NGBD-200

Sample capacity 20
Digestion tube volume 300ml
Digestion tube diameter 42 mm
Heating module PID temperature control

Graphite Block Digester NGBD-100

Sample capacity 6
Digestion tube volume 50 ml
Digestion tube diameter 32 mm
Digestion tube height 60 mm
Graphite Block Digester NGBD-101
Sample capacity 12
Digestion tube volume 50 ml
Digestion tube diameter 32 mm
Digestion tube height 60 mm
Graphite Block Digester NGBD-102
Sample capacity 24
Digestion tube volume 50 ml
Digestion tube diameter 32 mm
Digestion tube height 60 mm

Graphite Block Digester NGBD-103

Sample capacity 36
Digestion tube volume 50 ml
Digestion tube diameter 32 mm
Digestion tube height 60 mm

Graphite Block Digester NGBD-104

Sample capacity 48
Digestion tube volume 50 ml
Digestion tube diameter 32 mm
Digestion tube height 60 mm

Graphite Block Digester NGBD-105

Sample capacity 60
Digestion tube volume 50 ml
Digestion tube diameter 32 mm
Digestion tube height 60 mm

Infrared Digestion Furnace NIDF-100
Sample capacity 4
Heating module Infrared
Control mode Digital
Temperature range Room temperature - 600 °C

Infrared Digestion Furnace NIDF-101

Sample capacity 8
Heating module Infrared
Control mode Digital
Temperature range Room temperature - 600 °C

Infrared Digestion Furnace NIDF-102

Sample capacity 20
Heating module Infrared
Control mode Digital
Temperature range Room temperature - 600 °C
