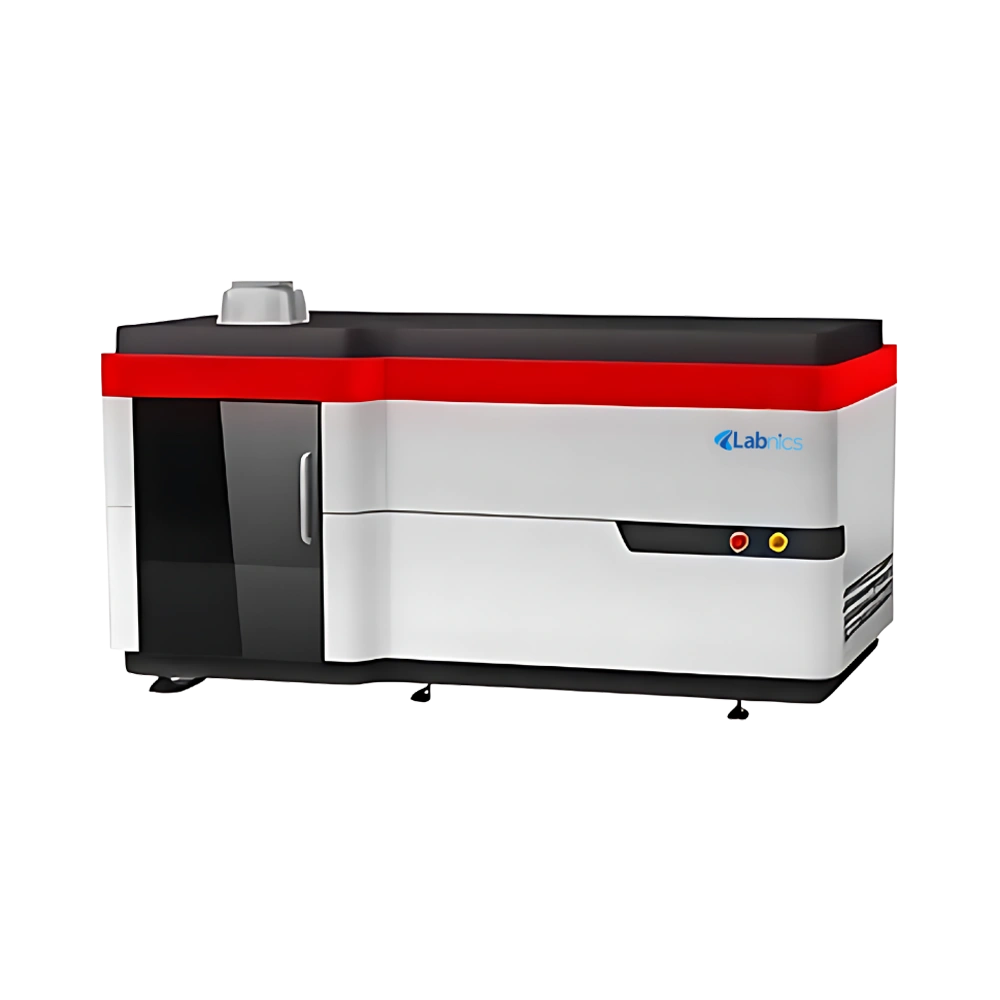

Inductively Coupled Plasma Emission Spectrometer NICP-102 offers a wavelength range of 160 to 1000 nm, enabling full spectrum multi-element analysis. This solid-state RF power system ensures consistent plasma performance for high accuracy. Our advanced grating design with high optical resolution improves detection limits for trace elements. It is equipped with a double-barrel spray chamber, which ensures stable operation. This nitrogen-purged optical chamber delivers exceptional reliability for demanding analytical tasks.
| Type |
Full Spectrum Direct Reading ICP-OES |
| Wavelength Range |
160 to 1000 nm |
| RF Power Circuit |
Solid-state RF power supply with auto-matching |
| RF Frequency |
27.12 MHz ± 0.05% |
| Frequency Stability |
< 0.1% |
| Power Output Stability |
< 0.3% |
| Escaped RF Radiation |
30 cm away, Electric field E < 2 V/m |
| Sampling System |
Torque tube: Three concentric, OD 20 mm |
| Torch Working Coil |
Inner diameter: 25 mm |
| Nebulizer |
Coaxial type, Outer diameter 6 mm |
| Spray Chamber |
Double-barrel atomizing chamber, OD 34 mm |
| Gas Flow Control |
Plasma Argon: 100 to 1000 L/h (1.6 to 16 L/min) Auxiliary Argon: 10 to 100 L/h (0.16 to 1.6 L/min) Carrier Argon: 10 to 100 L/h (0.16 to 1.6 L/min) |
| Pressure Valve |
0 to 0.4 MPa |
| Cooling Water |
Temp: 20 to 25°C; Flow: > 5 L/min; Pressure: > 0.1 MPa |
| Grating |
Middle step grating, 52.67 lp/mm, 64° sparkle angle |
| Numerical Aperture |
Fs 8 |
| Resolution |
0.0065 nm at 200 nm |
| Astigmatism |
< 2 ppm at As 189.042 nm |
| Light Chamber |
Constant temperature: 35 ± 0.1°C
Nitrogen purging: 1.8 to 3.8 L/min |
| Detector |
27.6 mm × 27.6 mm, 1024 × 1024 detection units |
| Reading Mode |
NDRO, FF, RAI |
| Power Consumption |
800 W to 1500 W |
Inductively Coupled Plasma Emission Spectrometer NICP-102 used for high-precision multi-element analysis in complex matrices through advanced optical emission technology. It is applied in environmental testing, petrochemical analysis, metallurgical labs, pharmaceutical research, and quality control sectors.
FAQ for Inductively Coupled Plasma Emission Spectrometer NICP-102
1: How does the nitrogen-purged optical chamber improve performance in Inductively Coupled Plasma Emission Spectrometer NICP-102 ?
The nitrogen-purged design in Inductively Coupled Plasma Emission Spectrometer NICP-102 minimizes interference from moisture and oxygen, maintaining optical stability and enhancing sensitivity for precise elemental detection.
2: Why is auto-matching RF technology important in Inductively Coupled Plasma Emission Spectrometer NICP-102 ?
Auto-matching RF technology in Inductively Coupled Plasma Emission Spectrometer NICP-102 ensures consistent power delivery to maintain plasma stability, reducing downtime and improving accuracy during prolonged analytical sessions.
3: What advantage does the full-spectrum direct reading offer in Inductively Coupled Plasma Emission Spectrometer NICP-102?
Full-spectrum reading in Inductively Coupled Plasma Emission Spectrometer NICP-102 allows simultaneous detection of multiple elements, saving time and ensuring comprehensive analysis with high accuracy in a single run.
4: How does constant temperature control affect the results in Inductively Coupled Plasma Emission Spectrometer NICP-102?
Maintaining a stable optical chamber temperature (35 ± 0.1°C) prevents wavelength drift and ensures reliable performance for both routine and advanced analyses in Inductively Coupled Plasma Emission Spectrometer NICP-102.
5: What are the benefits of multiple reading modes like NDRO and RAI in Inductively Coupled Plasma Emission Spectrometer NICP-102?
Inductively Coupled Plasma Emission Spectrometer NICP-102 offers non-destructive and flexible reading options, enhances data integrity, reduces sample loss, and improves overall operational flexibility for different analytical workflows.
