Laminar Flow Hood NLFH-401

Laminar Flow Hood NLFH-401

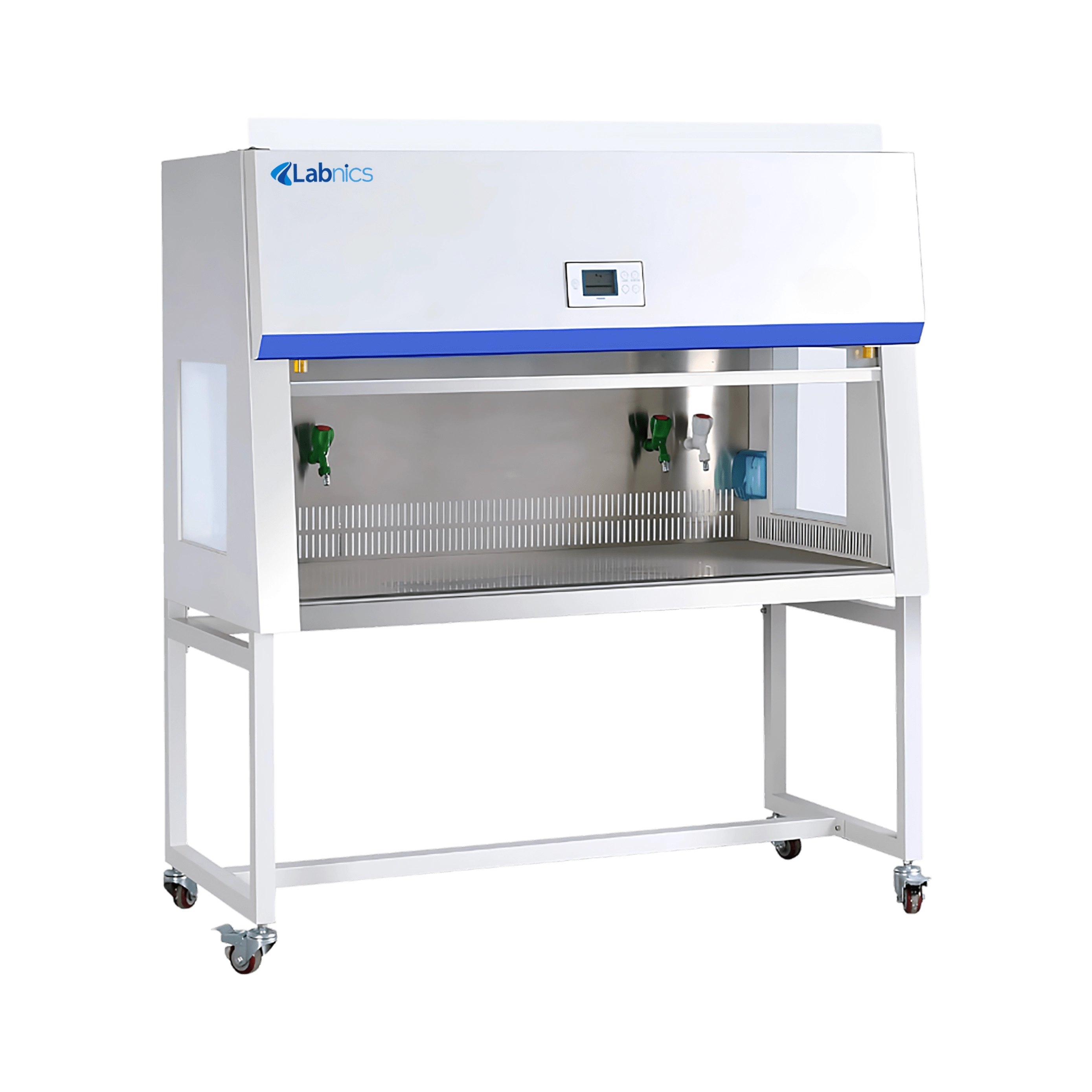

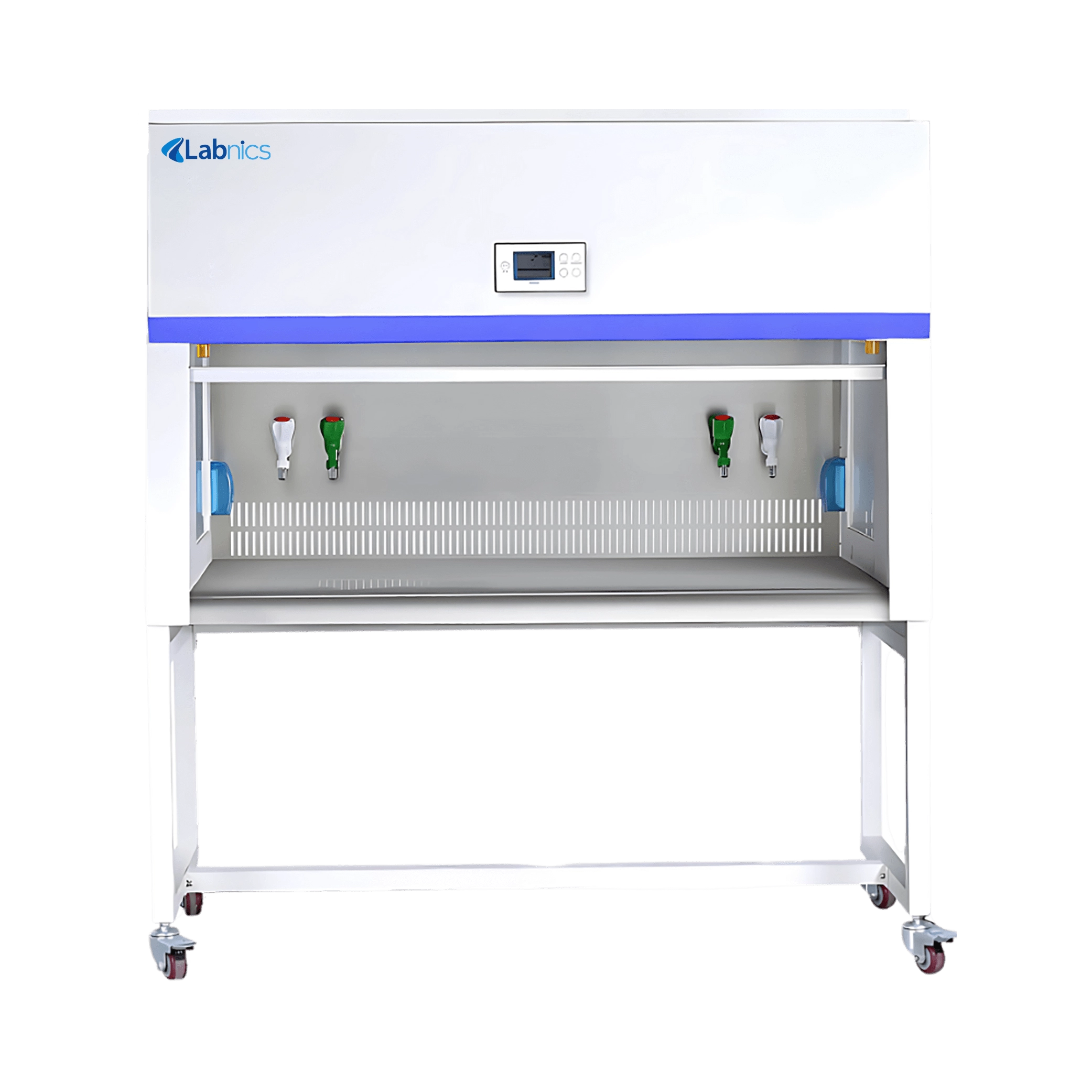

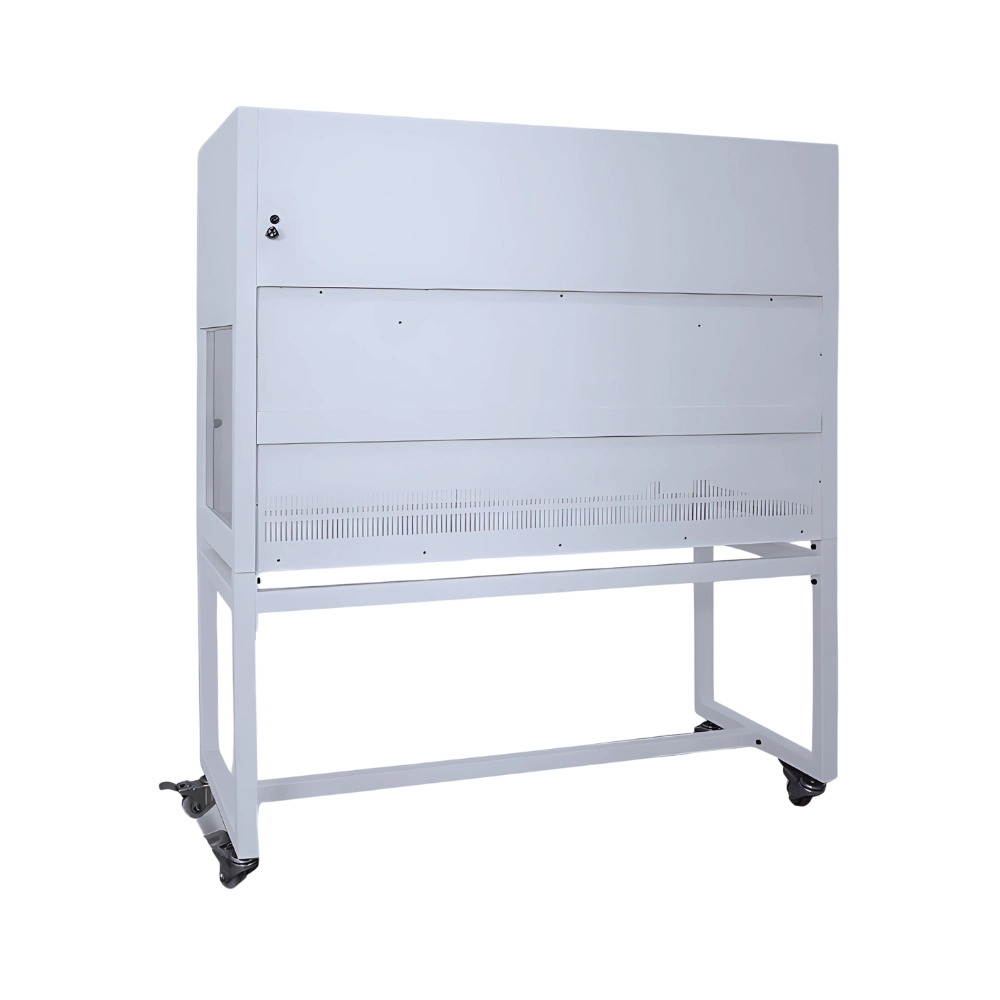

Laminar Flow Hood NLFH-401 is designed with a temperature range from 10°C to 30°C and humidity levels below 70%. It features an LCD dot matrix display that provides clear visibility. Our laminar hood includes a dual-filter system that enhances air purification efficiency. It includes a sterilization and lighting interlock for UV protection. This unit has microcomputer control technology for precise operation and real-time monitoring.


Catalog

Specifications

Air velocity 0.3 to 0.6 m/s
HEPA filter 99.99% efficiency
Illumination >300 LX
Noise ≤62 dB
Vibration half-peak value <3 µm (X, Y, Z direction)
Working environment Ambient temperature 10 to 30°C, relative humidity <70%
Power consumption 400 W
Power supply Single-phase AC220V/50Hz
Internal dimension 500 × 1300 × 550 mm
External dimension 1585 × 1460 × 735 mm
Packaging dimension 1030 × 1650 × 855 mm
Net weight 210 Kg
Packaging weight 235 Kg

Features

  • Centrifugal wind wheel
  • Low-noise operation
  • Easy Maintenance
  • Durable construction
  • Safety alarm system
  • Airflow mechanical design

Applications

  • Laminar Flow Hood NLFH-401 is ideal for laboratories in biotechnology, pharmaceuticals, and life sciences, providing a controlled environment for sensitive experiments and procedures.

Ask Expert

Relative Models Of Horizontal Laminar Flow Hood

Labnics Horizontal Laminar Flow Hoods deliver a continuous and horizontal flow of filtered air across the workspace. They are equipped with high-efficiency HEPA filters to trap contaminants and maintain air purity. These units feature a durable, easy-to-clean stainless steel work surface for enhanced hygiene and longevity. They come with a built-in display to monitor airflow and filter performance. Our hoods include universal casters for effortless movement and positioning.

Laminar Flow Hood NLFH-204

Overall dimension (L × W × H) 1200 × 650 × 1000 mm
Working area dimension (L × W × H) 1090 × 530 × 740 mm
Surface wind speed > 0.3 m/h
Catalog

Laminar Flow Hood NLFH-100

Overall dimension (L × W × H) 600 × 550 × 1600 mm
Working area dimension (L × W × H) 580 × 500 × 500 mm
Airflow velocity 0.3 ~ 0.5 m/s
Catalog

Laminar Flow Hood NLFH-101

Overall dimension (L × W × H) 800 × 550 × 1600 mm
Working area dimension (L × W × H) 780 × 500 × 500 mm
Airflow velocity 0.3 ~ 0.5 m/s
Catalog
Laminar Flow Hood NLFH-102
Overall dimension (L × W × H) 1000 × 550 × 1600 mm
Working area dimension (L × W × H) 980 × 500 × 500 mm
Airflow velocity 0.3 ~ 0.5 m/s
Catalog
Laminar Flow Hood NLFH-103
Overall dimension (L × W × H) 1200 × 550 × 1600 mm
Working area dimension (L × W × H) 1180 × 550 × 750 mm
Airflow velocity 0.3 ~ 0.5 m/s
Catalog

Laminar Flow Hood NLFH-300

Overall dimension 1760 × 700 × 1450mm
Working dimension 1680 × 480(300) × 600mm
Size & no. of HEPA filters 610 × 610× 50 × 2 sets
Catalog

Laminar Flow Hood NLFH-301

Overall dimension 1760 × 700 × 1450mm
Working dimension 1680 × 480(300) × 600mm
Size & no. of HEPA filters 610 × 610× 50 × 2 sets
Catalog

Laminar Flow Hood NLFH-302

Overall dimension 900 × 700 × 1450mm
Working dimension 820 × 480(300) × 600mm
Size & no. of HEPA filters 820 × 600× 50 × 1 set
Catalog
Laminar Flow Hood NLFH-303
Overall dimension 900 × 700 × 1450mm
Working dimension 820 × 480(300) × 600mm
Size & no. of HEPA filters 820 × 600× 50 × 1 set
Catalog
Laminar Flow Hood NLFH-400
Air velocity 0.3 to 0.6 m/s
HEPA filter 99.99% efficiency
Illumination >300 LX
Catalog

Vertical Laminar Flow Hood

Labnics Vertical Laminar Flow Hoods feature HEPA filters that draw air and direct it downward over the workspace, providing a sterile environment. They have an adjustable air velocity control for optimal performance. These units are equipped with a front sash for easy access while maintaining safe airflow. They include noise-dampening features to reduce sound from the fan and filtration system. Our vertical laminar flow hoods are made from high-quality durable materials, ensuring easy cleaning and long-term reliability.

Vertical Laminar Flow Hood NVLH-100

Overall dimension 1010 × 750 × 1600mm
Working dimension 870 × 690 × 520mm
Size & no. of HEPA filters 820 × 600 × 50 × 1 set
Catalog

Vertical Laminar Flow Hood NVLH-101

Overall dimension 1500 × 750 × 1600mm
Working dimension 1360 × 690 × 520mm
Size & no. of HEPA filters 610 × 610× 50 × 2 sets
Catalog
Vertical Laminar Flow Hood NVLH-102
Overall dimension 1010 × 730 × 1600mm
Working dimension 870 × 690 × 520mm
Size & no. of HEPA filters 820 × 600× 50 × 1 set
Catalog
