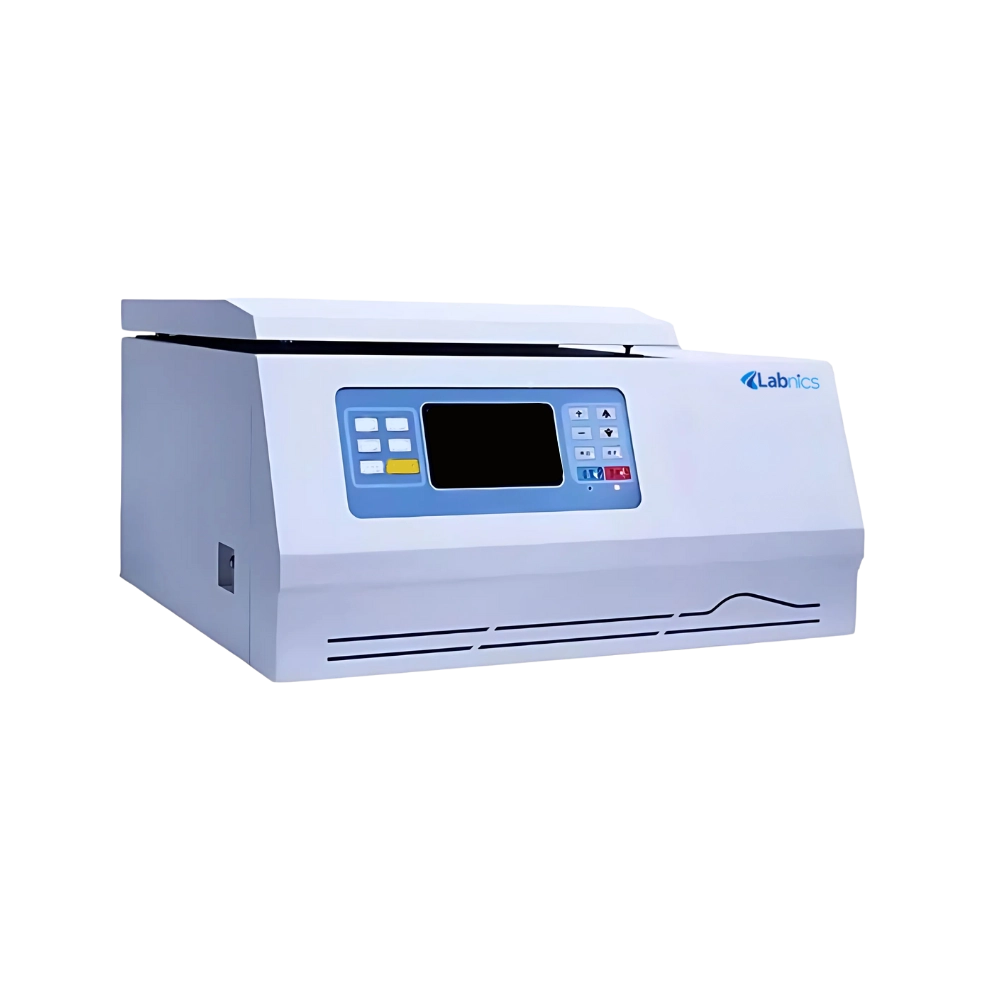

High Speed Refrigerated Centrifuge NHRC-101

High Speed Refrigerated Centrifuge NHRC-101 can reach up to 18000 revolutions per minute and offers rapid sample separation. It operates within -20°C to 40°C, ensuring optimal conditions for temperature-sensitive substances. Our centrifuge features a linear drive system with 10 levels of acceleration and deceleration for precise speed adjustment. The integrated LCD touchscreen display provides real-time monitoring of the parameters.

---

Get Quote Catalog

Specifications

Maximum Speed	18000 rpm
Maximum RCF	31115 × g
Temperature Range	- 20°C to 40°C
Temperature Accuracy	± 1.0°C
Maximum Capacity	4 × 100 ml
Speed Accuracy	± 10 rpm
Timer Range	1s to 99h 59min
Noise Level	≤ 60dB (A)
Store Programs	99 groups of programs
Rotor Automatic Recognition	Yes
Coolant type	CFC free
Current	15A
Power Consumption	1200W
Power Supply	AC 220 ± 22V, 50Hz
Dimensions	610 × 560 × 365 mm
Weight	74kg

Features

• Microcomputer controller unit
• Special noise reduction system
• Stainless steel chamber with anti-corrosion coating
• Advanced AC frequency conversion brushless motor
• Integrated front SOP guide map

Applications

• High Speed Refrigerated Centrifuge is used for accurate separation of samples in clinical diagnostics, biotechnology, and pharmaceutical research.

Standard Accessories

Power Cord × 1pc
Allen Wrench × 1pc

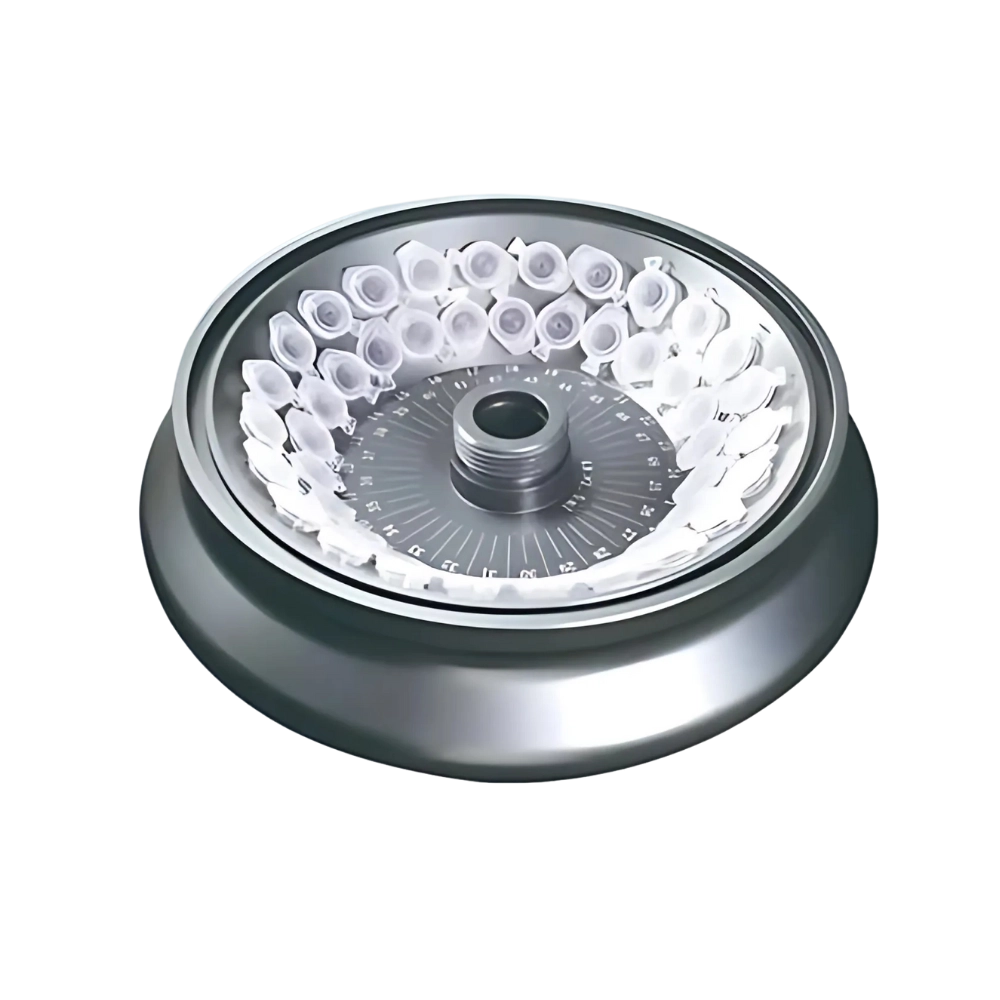

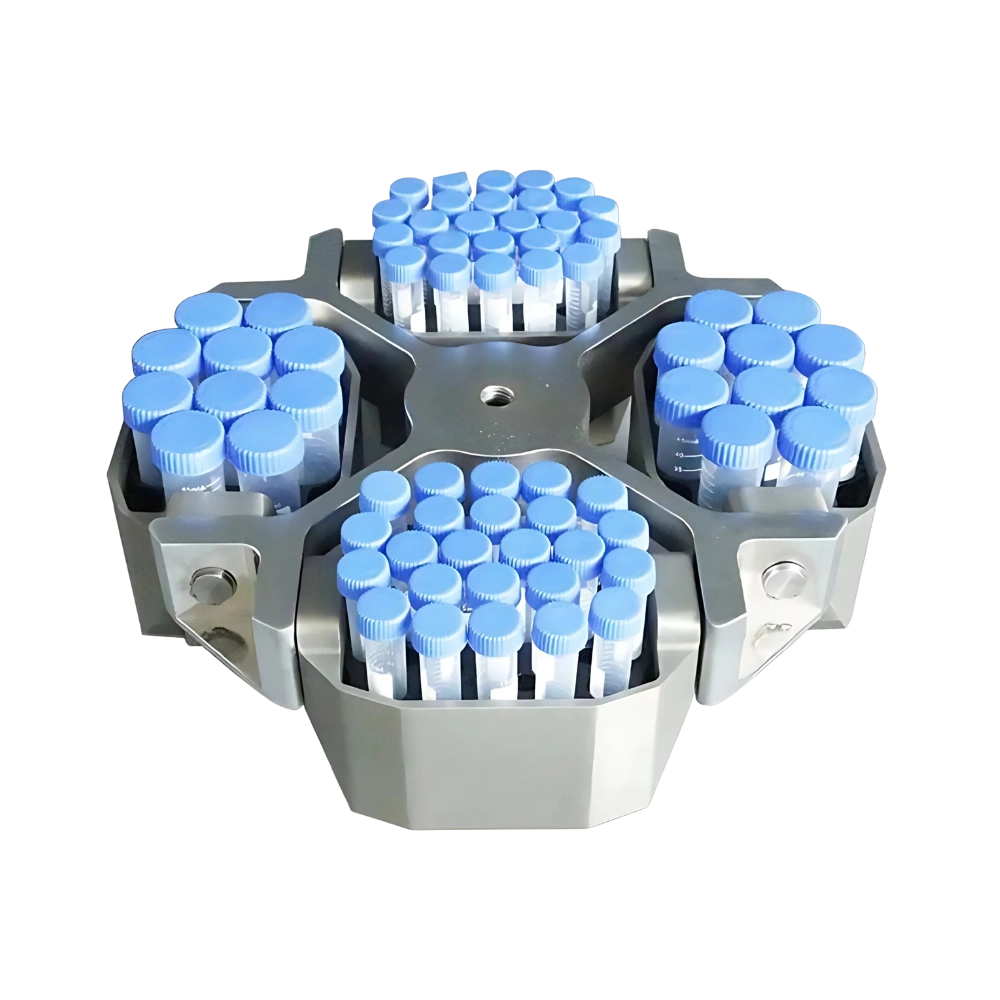

Rotors Selection

Rotor No.	Maximum Capacity	Maximum Speed	Maximum RCF
Angle Rotor 01	24 × 1.5/2.0 ml	18000 rpm	31115 × g
Angle Rotor 02	12 × 5 ml	15000 rpm	18306 × g
Angle Rotor 03	32 × 1.5/2.0 ml	14000 rpm	19940 × g
Angle Rotor 04	8 × 8 × 0.2 ml (PCR row)	14000 rpm	15032 × g
Angle Rotor 05	48 × 1.5/2.0 ml	13000 rpm	18327 × g
Angle Rotor 06	12 × 10 ml	13000 rpm	15228 × g
Angle Rotor 07	6 × 50 ml (Round bottom)	13000 rpm	17146 × g
Angle Rotor 08	6 × 50 ml (Conical/round bottom)	12000 rpm	16227 × g
Angle Rotor 09	12 × 15 ml (Conical bottom)	11000 rpm	13730 × g
Angle Rotor 10	4 × 100 ml	11000 rpm	14298 × g
Swing-out Rotor 01	24 × 1.5/2.0 ml	13000 rpm	16816 × g
Swing-out Rotor 02	4 × 100 ml	4500 rpm	3010 × g
Swing-out Rotor 03	2 × 2 × 96 hole (Micro-plate)	4000 rpm	2057 × g
Swing-out Rotor 04	8 × 50 ml (Conical bottom)	4000 rpm	2680 × g

Adapters Selection

Adapter No:	Maximum Capacity	Maximum Speed	Maximum RCF
Adapter 01	0.2 ml PCR tube	14000 rpm	15032 × g
Adapter 02	48 × 0.5 ml	13000 rpm	18327 × g
Adapter 03	12 × 0.6 ml (blood tube/custom)	4500 rpm	3010 × g
Adapter 04	0.4/0.5 ml micro test tube	4000 rpm	2057 × g
