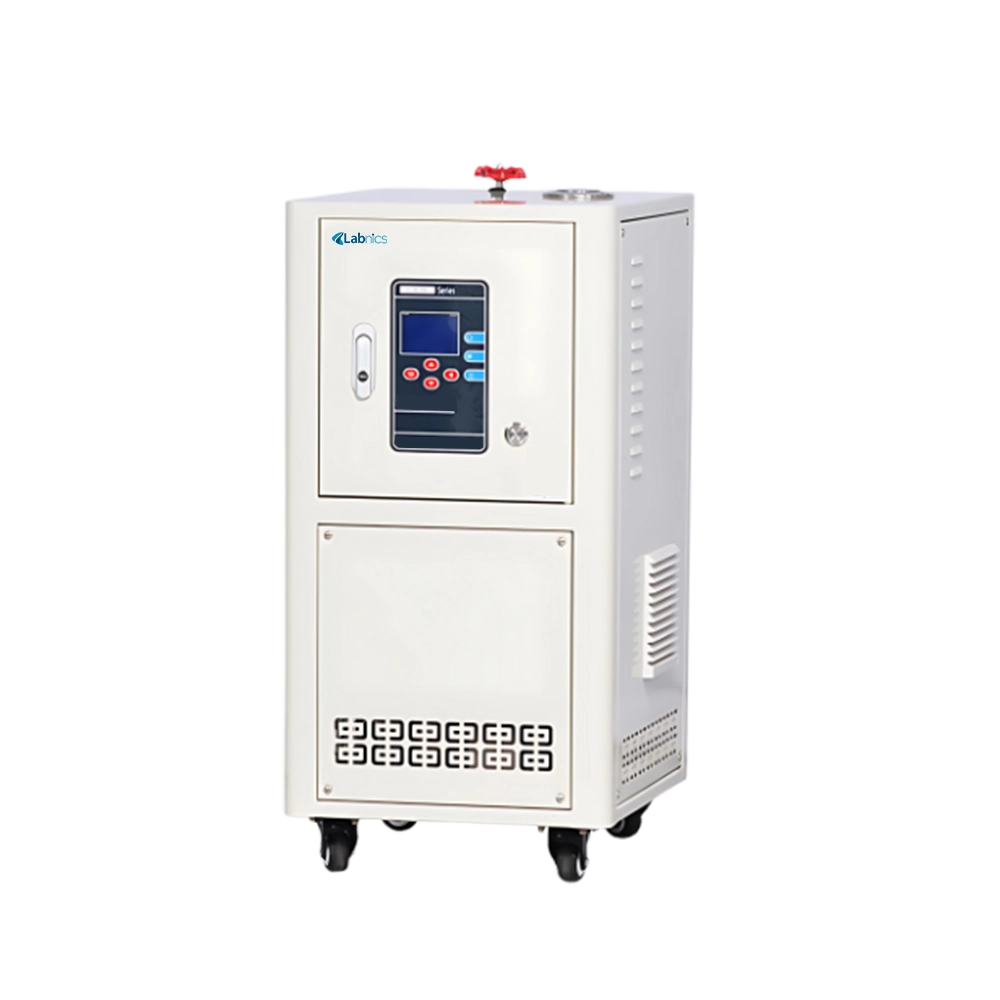

Heating Circulator NHTC-106

Heating Circulator NHTC-106

Heating Circulator NHTC-106

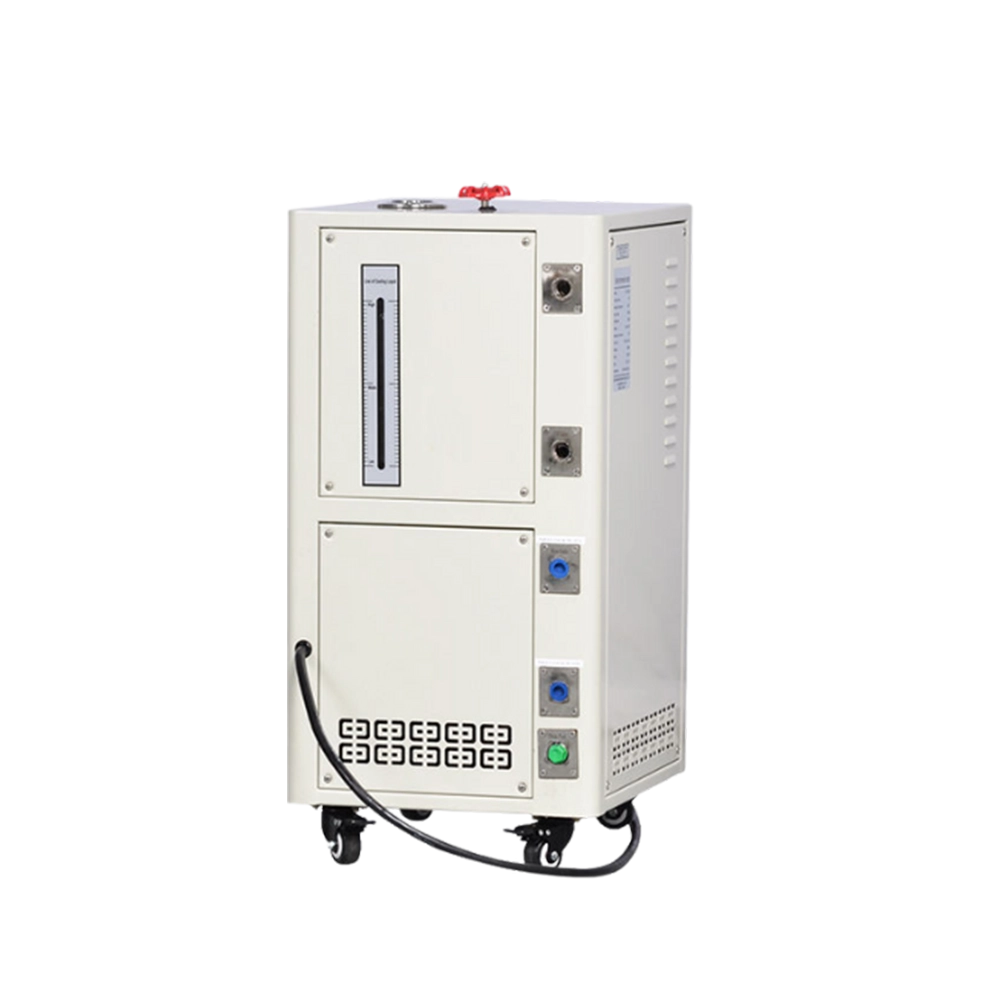

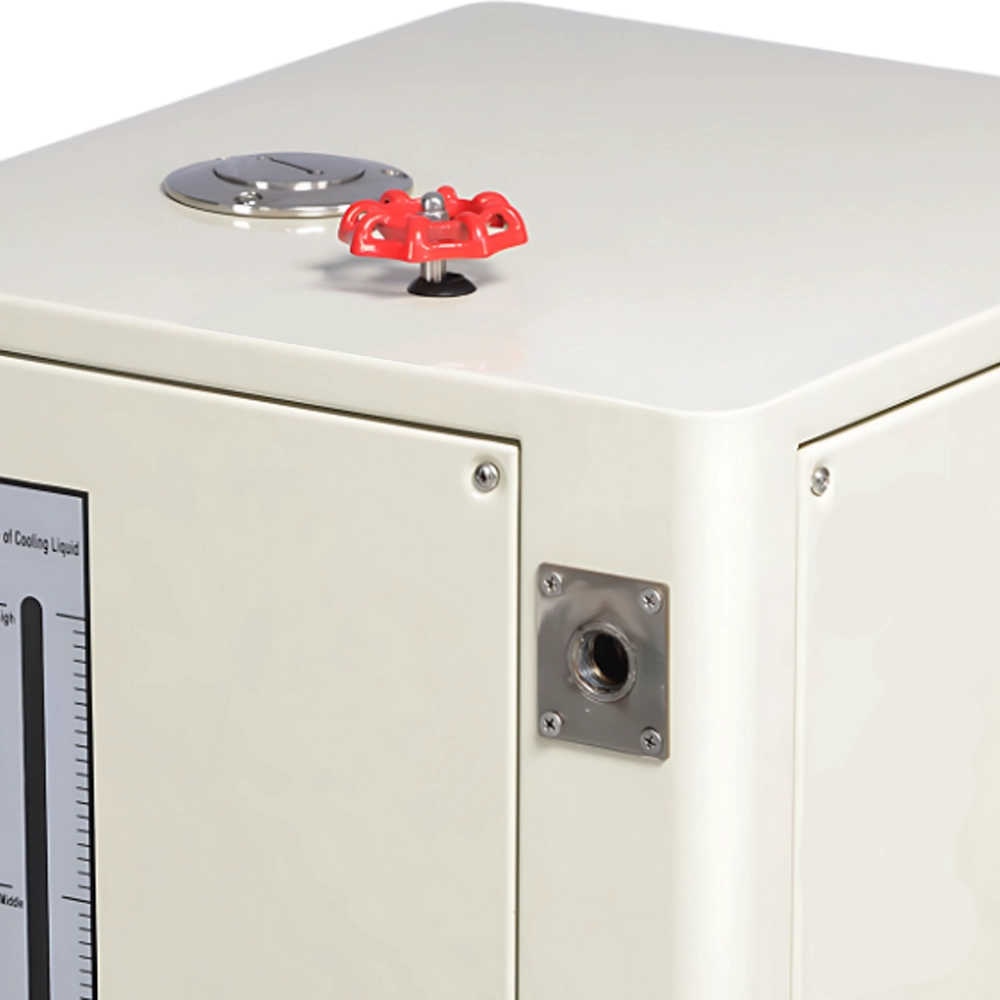

Heating Circulator NHTC-106 is designed with a capacity of 50L, making it ideal for a wide variety of applications. It is equipped with a vortex pump, providing efficient and reliable circulation of the fluid. This circulator utilizes a PID control system for high precision in temperature regulation. It features a unique oil mist cooling function that reduces circulating pressure and improves flow. Our unit includes a visual level indicator, allowing users to easily monitor and maintain fluid levels for optimal performance.

Specifications
Capacity 50L
Temperature range RT to 300°C
Temperature accuracy ±0.5°C
Ambient temperature 5 to 30°C
Ambient humidity 45 to 80%RH
Circulating pump type Vortex pump
Circulating pump pressure 2.5bar
Cycle interface DN25
Cooling water interface DN20
Rated flow 50L/min
Heating method Electric heating
Cooling method Water cooling
Temperature sensor PT100
Water cooler Plate heat exchanger
PLC control system Siemens S7-200smart
PLC protocol Modbus RTU protocol RS485 interface (optional RS232 Ethernet)
PLC operation panel 7-inch Siemens color touch screen (optional 10-inch)
PLC programming 5 programs can be edited, each with up to 40 steps
PLC control mode Material temperature and equipment outlet temperature can be switched automatically
PLC data output Support U disk data output, can be outputted temperature data in TXT format
Display LCD
Safety protection Self-diagnosis
High-pressure switch
Overload relay
Over-temperature alarm
Heating power 15kW
Cooling capacity (300°C) 15kW
Cooling capacity (200°C) 13kW
Cooling capacity (100°C) 10kW
Cooling capacity (65°C) 4kW
Power consumption 15.9kW
Power supply 220V/380V/480V, 50/60Hz
Weight 115kg
Features
Applications

Heating Circulator NHTC-106 is used for accurate temperature control in various processes to ensure consistent and precise results. It is widely used in laboratories, industrial research, chemical synthesis, material testing, and quality control.

Standard Accessories

Stainless steel hose with thermal insulation (3.6 meters/piece),1pc


Main engine, 1 set
Matching valves, 2 sets
Raw tape, 1 roll
Operation manual, 1pc
