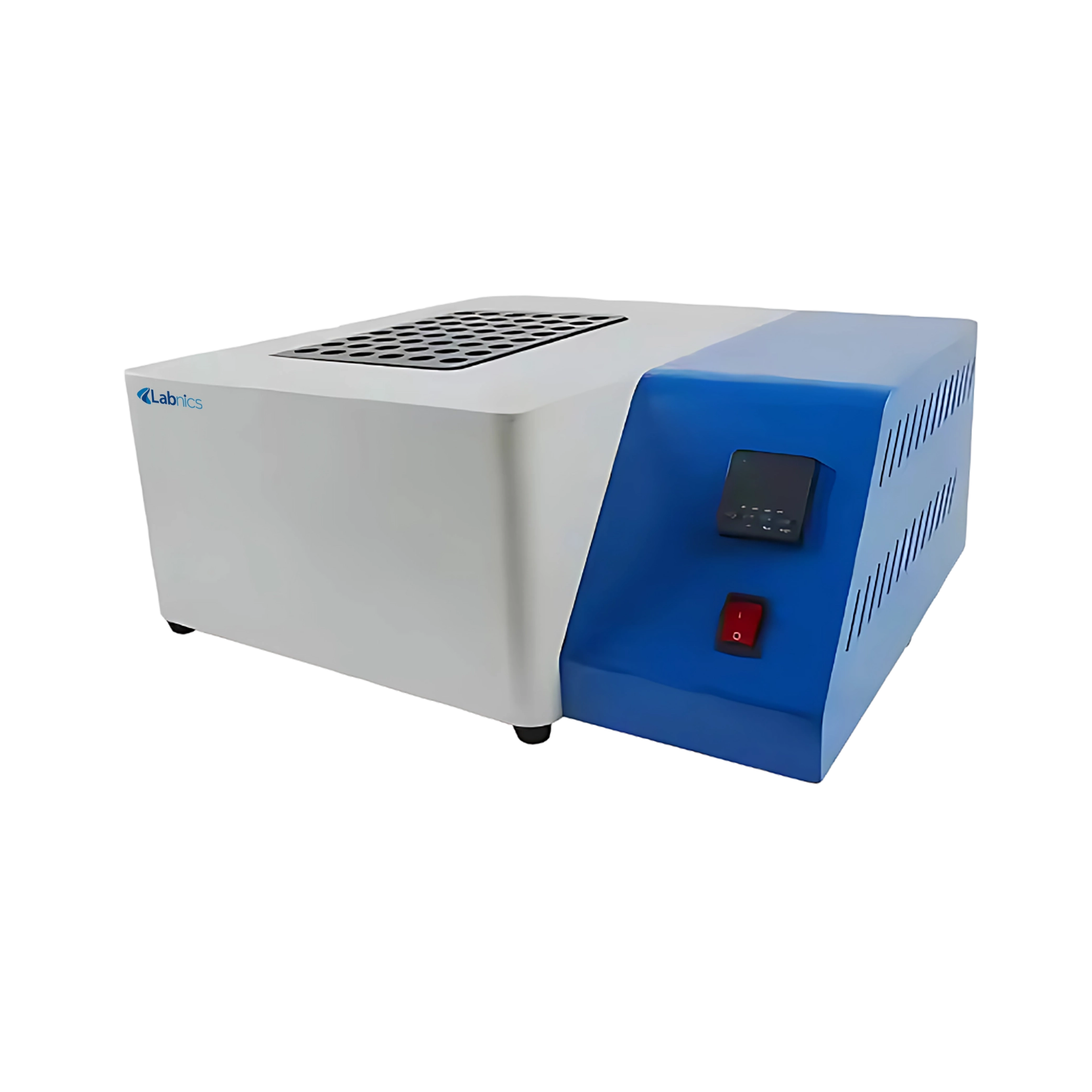

Graphite Block Digester NGBD-102

Graphite Block Digester NGBD-102 is a compact digestion unit employed for Kjeldahl digestion of a wide variety of samples with nitrogen content in the micro and macro range. Adopting a protective-coated graphite block and PTFE corrosion-resistant pipeline design, it results in accurate and precise temperature control and heat transfer efficiency. It is an ideal equipment for small laboratories that are looking for simpler and safer digestions.

---

Get Quote Catalog

Specifications

Sample capacity	24
Digestion tube volume	50 ml
Digestion tube diameter	32 mm
Digestion tube height	60 mm
Heating module	PID temperature control
Control mode	Digital
Temperature range	RT- 210 °C
Temperature accuracy	± 0.1 °C
Power Supply	AC 110/220 V, 50/60 Hz
Dimensions	500 × 410 × 130 mm
Weight	15 kg

Features

• Simple and compact design
• PID temperature control technology
• Multiple protection and safety control
• Various sample-holding capacity, can be customized

Applications

• Widely used for various pre-processing of analytical sample and digestion of the sample that is to be analysed in Kjeldahl analyzer as well as for sample pre-treatment in the food industry, pharmaceutical as well as environmental industry, quality inspection, universities and other industries.

Optional Accessories

Accessories No	Name
1	Glass digestion tube
2	Polypropylene digestion tube
3	Polytetrafluoroethylene digestion tube
4	Reflux cover
5	Stainless steel digestion tube rack
6	Polytetrafluoroethylene digestion tube rack
