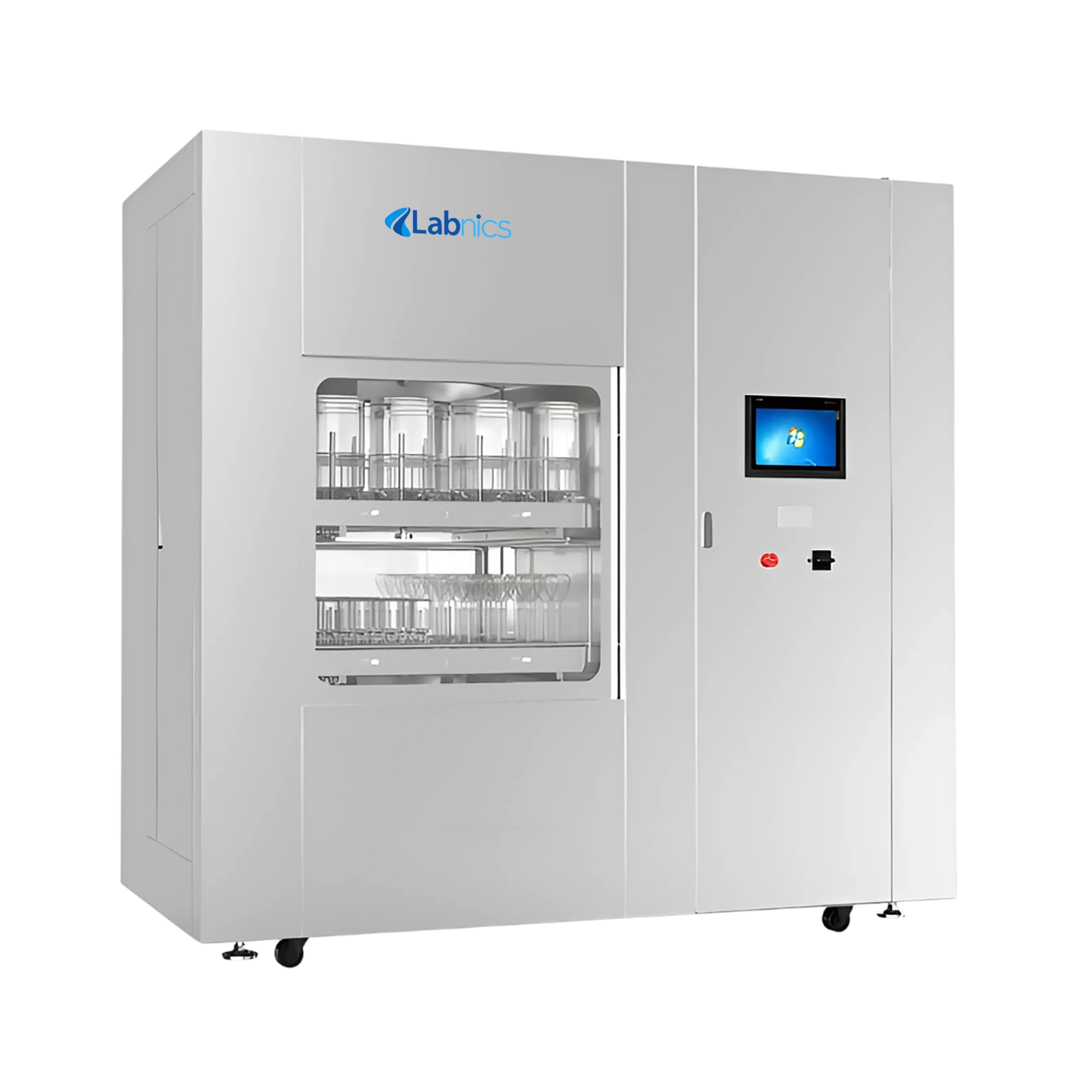

Labnics Automatic Glassware Washer NAGW-107 circulates water through a 1000 L chamber using dual pumps, each rated at 1000 L/min, with tank temperature running from room temperature up to 93℃ at 18 kW water heater power. Drying runs from room temperature up to 120℃ at 11.25 kW once the wash cycle ends. Built as a single door laboratory glassware washer with a double door option, it features a hollow double layer tempered glass door for heat insulation and noise reduction, an automatic lift door with electric opening, and operates through PLC Siemens control with a 12 inch touchscreen and password protected access.
$70,150.00
| Capacity | 1000L |
| Circulating pump flow A | 1000L/min |
| Circulating pump flow B | 1000L/min |
| Tank internal temperature | RT to 93°C |
| Drying temperature | RT to 120°C |
| Control style | PLC / Siemens or equivalent |
| Door structure | Single door (double doors optional) |
| Door opening mode | Electric door (manual door optional) |
| Display | 12-inch touch screen |
| Water heater power consumption | 18kW |
| Dry power consumption | 11.25kW |
| Exterior dimension | 2000×1190×2250mm |
Automatic Lift Door — Hands-free door operation
Airtight & Watertight Seal — Leak-proof chamber sealing
Programmable Control System — Customizable wash cycles
Power-Off Memory — Retains settings after outages
Emergency Stop Switch — Instant operation shutdown
Password-Protected Access — Secure user control
Record Storage & Export — Saves and transfers wash data
Research Laboratories | Pharmaceutical Facilities | Chemical Industries |
Ensures thorough, contamination-free cleaning of lab and industrial glassware | Delivers high-standard sterile wash cycles for consistent contamination-free results | Handles bulk industrial glassware cleaning with dual-pump high-pressure circulation |
1: Does the Automatic Glassware Washer NAGW-107 handle drying and cooling?
Our Automatic Glassware Washer uses high-temperature drying with hot air circulated through top and bottom nozzles for rapid drying. It quickly cools utensils after drying, allowing safe handling immediately. It incorporates a HEPA filter to keep the dry air clean, preventing secondary contamination.
2: How easy is the maintenance?
Our Automatic Glassware Washer features a self-check system for main components and multi-layer filtration, minimizing maintenance efforts. It alerts operators to potential issues early, reducing downtime. It also has a rounded internal chamber design that allows thorough and easy cleaning.
3: Is the Automatic Glassware Washer NAGW-107 energy-efficient?
The Automatic Glassware Washer operates with 18kW for water heating and 11.25kW for drying, optimizing energy usage. It achieves lower consumption compared to older models while maintaining consistent performance. It also uses an insulated glass door and precise temperature control to reduce heat loss.
4: What safety measures prevent accidents during operation?
Our Automatic Glassware Washer has an automatic induction system for lift door movement, which stops immediately if an abnormality occurs. It prevents hand clamping, collisions, or damage from improperly placed racks. It also features a strong interlock system to ensure the door cannot open while the machine is running.
5: Does the Automatic Glassware Washer NAGW-107 support user access control?
The Automatic Glassware Washer features three-level password authority management, including super-user, administrator, and operator roles. It allows multiple accounts with specific permissions to control access and safeguard operations. It ensures only authorized personnel can operate or modify settings.
Labnics Glassware Washer runs wash cycles across chamber capacities ranging from 120 L to 420 L, with a maximum lumen volume of 760 L. The circulating pump drives wash water through the chamber at a configured flow rate, covering all loaded glassware through the wash and rinse sequence within a single cycle. Water consumption per cycle ranges from 15 L to 25 L, and inlet water pressure is configured per chamber size to match load volume.
