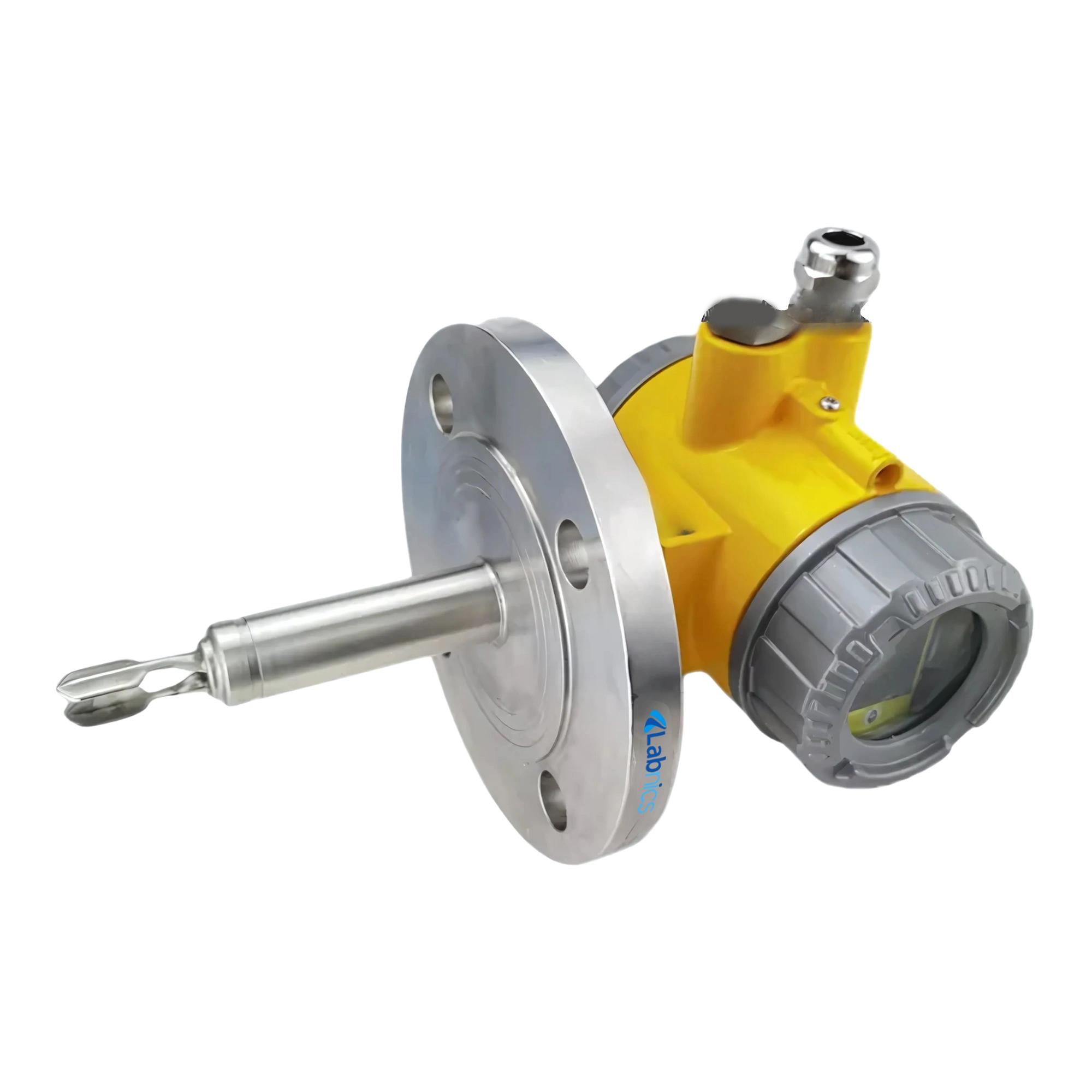

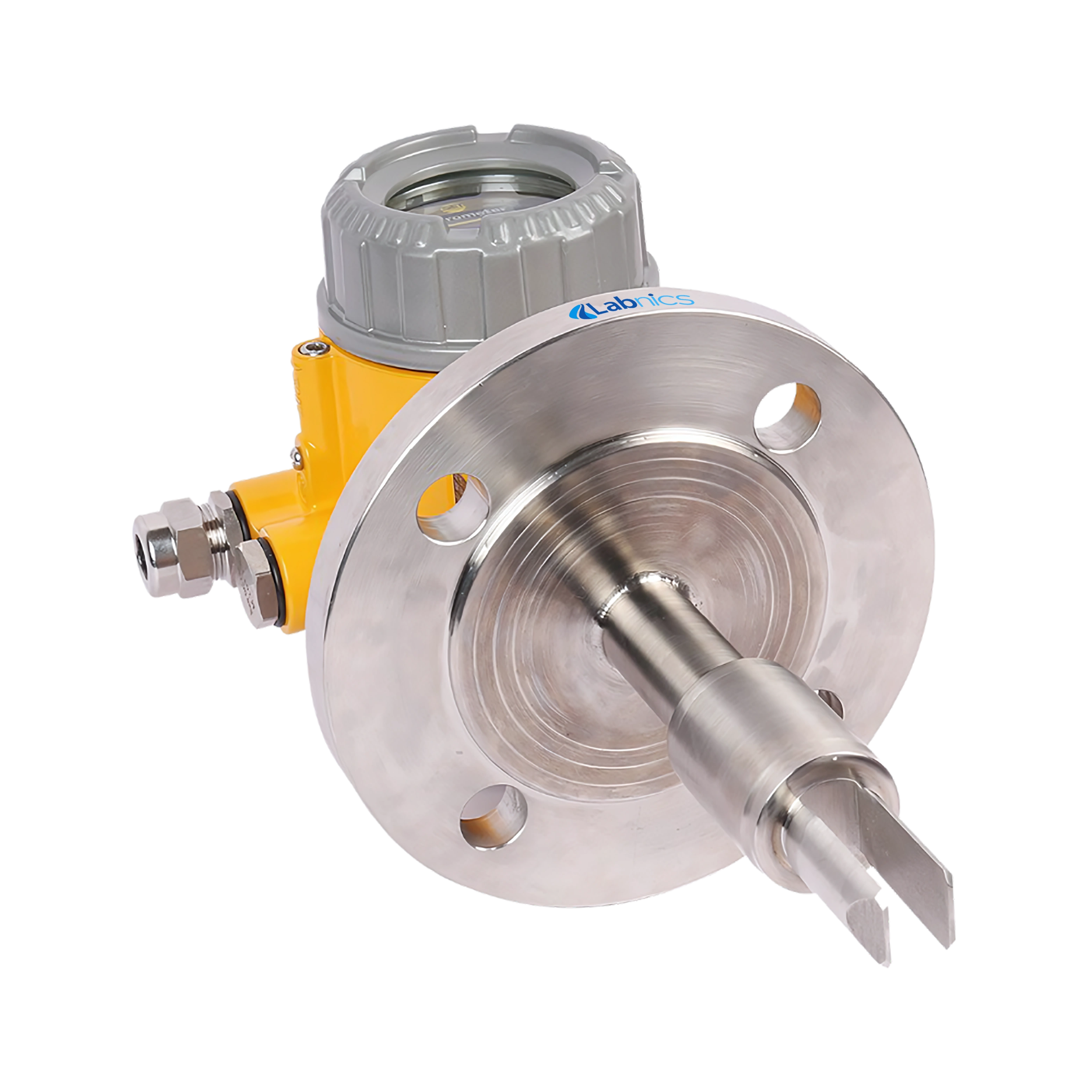

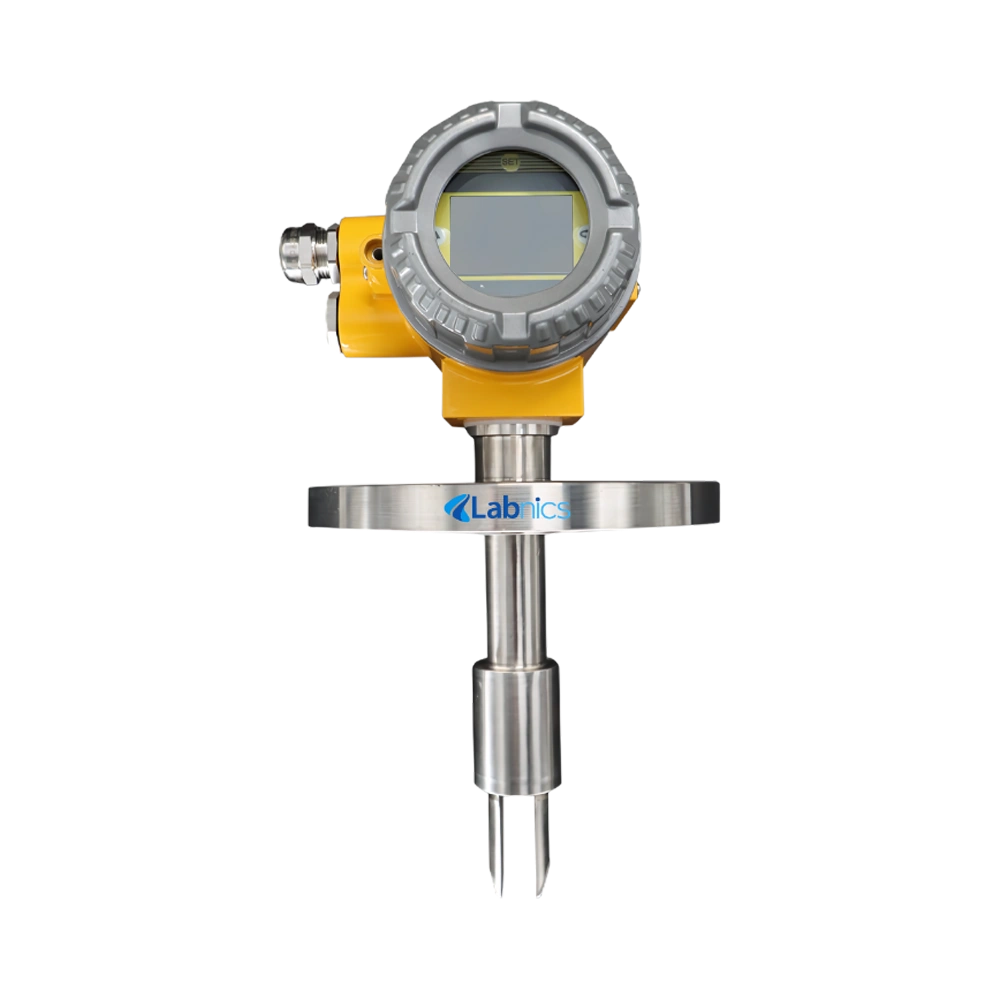

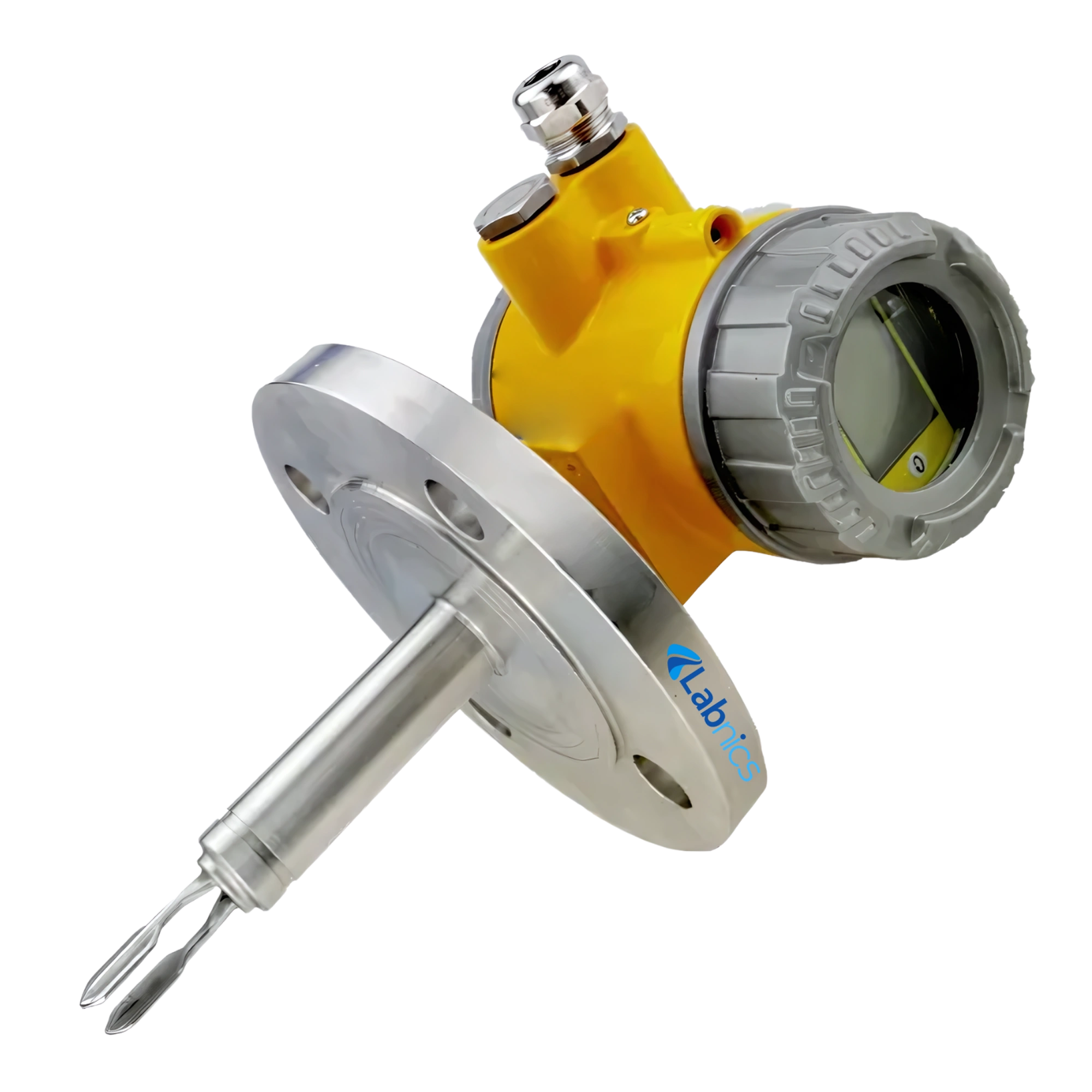

Density Meter NDSM-101

Density Meter NDSM-101 features a measurement range of 0 to 3 g/cm³ with an accuracy of 0.001g /cc. It accurately measures viscosity within a range of 0 to 20,000 cP. This meter is equipped with a built-in PT100 temperature sensor for precise temperature measurements. It allows users to modify temperature parameters for enhanced flexibility. Our unit features wetted parts made of SS316L stainless steel for excellent corrosion resistance and durability.

---

Get Quote Catalog

Specifications

Measurement range	0 to 3000 kg/m3 (0 to 3g/cm3)
Accuracy	0.001g /cc (±1 kg/m3)
Viscosity	0 to 20000 cP
Signal Output	4 to 20 mA signal 4 wire(2 wires 24VDC, 2 wires 4 to 20mA) + RS485
Working temperature	-20 to 90℃
Working pressure	0 to 20MPa
Temperature sensor	Built-in PT100
Flange	DN 50 PN40
Wetted part Material	SS316L
Fork sensor length	150mm
Electrical	M20 × 1.5
Weight	15 kg

Features

• Temperature compensation
• Quick Calibration
• Password Access
• Error Correction
• Teflon coated body

Applications

• Our Density Meter NDSM-101 is used to measure the density of liquids for quality control and process optimization. It is commonly utilized in industries such as pharmaceuticals, food and beverage, petrochemicals, and environmental monitoring.
