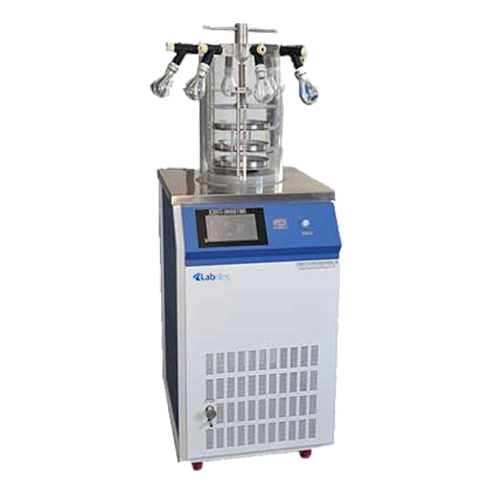

Floor-Type Freeze Dryer NFFD-100

Name: Floor-Type Freeze Dryer NFFD-100
Brand: Fison
SKU: NFFD-100
Rating: 4.9 (817 reviews)

Floor-Type Freeze Dryer NFFD-100 is a multi-manifold type lyophilisation unit that enables long-term preservation of biological, biomedical or food preservation samples in low temperature in desiccating conditions. It is equipped with ocular transparent bell type drying chamber that enhances visibility of the lyophilisation process during operation.

$5,050.00

Catalog

Specifications

Freezing area	0.08m²
Tray capacity	1L
No-load Temperature of cold trap	( - 80°C)
Vacuum degree	< 10Pa
Layer spacing	70mm
Manifold quantity	8
Manifold capacity	100ml×2, 250ml×2, 500ml×2,1000ml×2
Moisture entrapping capacity	6 kg
Size of cold trap	Ø 270×410 mm
Power supply	220V/50Hz 110V/60Hz
Overall dimensions	950×830×1440 mm
Weight	200kg

Features

Embedded circuit design
Compact and easy to operate
7 inches colour Touch Screen to display drying curve and history curve
It provides interface for easy storage or printing of lyophilized sample data
Large opening trap for moisture with pre-freeze function
Efficient refrigeration compressor with low noise levels
It is equipped with nitrogen inflation valve
Cold trap made up of Stainless steel body with resistance against corrosion
Easy to clean and user-friendly control panel
Well-spaced adjustable sample plate and holder
It can store large amount of data with 128 MB FLASH

Applications

It is widely used equipment for cryodessication of biological materials like enzymes, bacterial or viral cultures, tissues, processed food samples, etc. It is utilized in areas like Biotechnology, Medical Research, and other Research Institutes for educational purpose.
