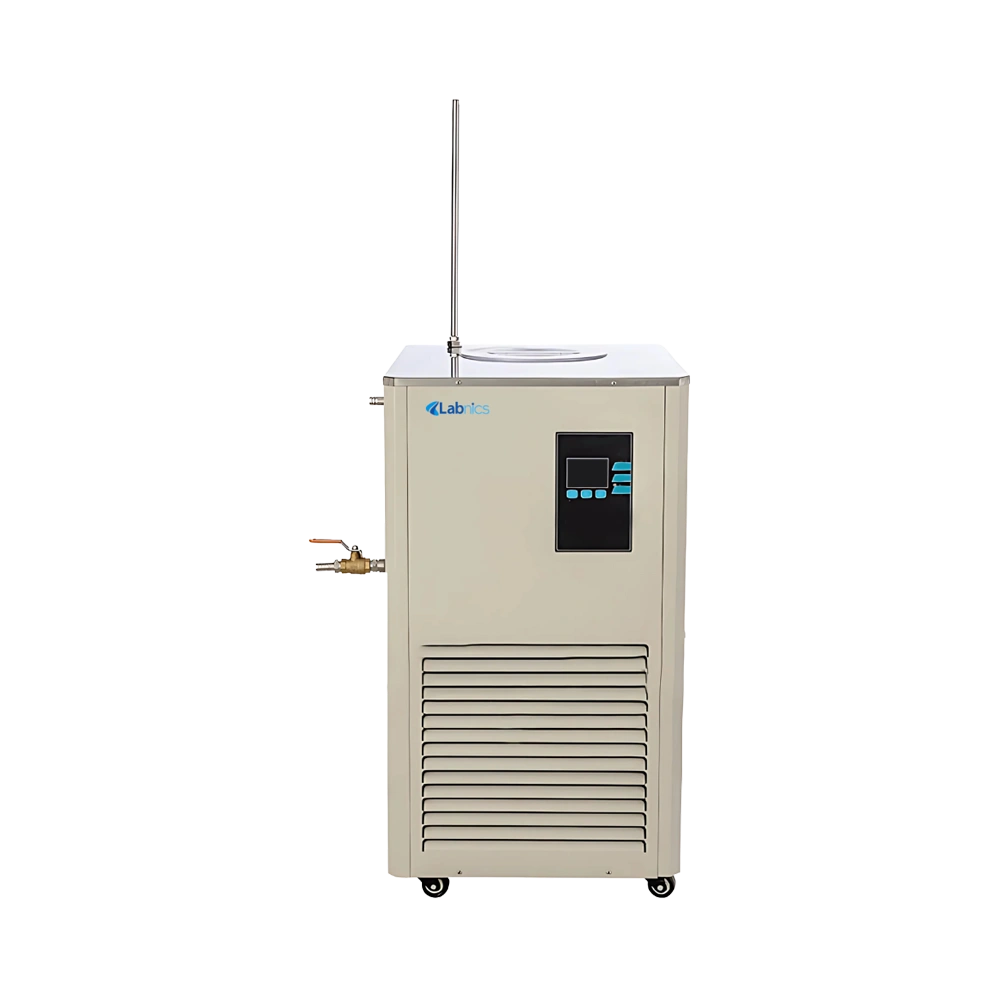

Recirculating Chiller NRC-204 provides a flow rate between 20 to 40L/min, ensuring efficient coolant circulation. It supports a wide temperature range from -80°C to RT, making it suitable for low-temperature processes. This unit has a 14L tank capacity, allowing adequate thermal fluid volume. It features a cold plate body with an anti-corrosion spray finish, offering durability. Our chiller includes an LCD screen and key operation interface, enabling clear monitoring and easy control.
$7,950.00
Specifications
| Tank capacity | About 14L |
| Temperature range | -80°C to RT |
| Room Temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 20 to 40L/min |
| Lifting head | 4 to 6M |
| Pressure | ≤0.4MPa |
| Heat exchange area | 11.1㎡ |
| Air volume | 1790m³/h |
| Refrigerant | R22 |

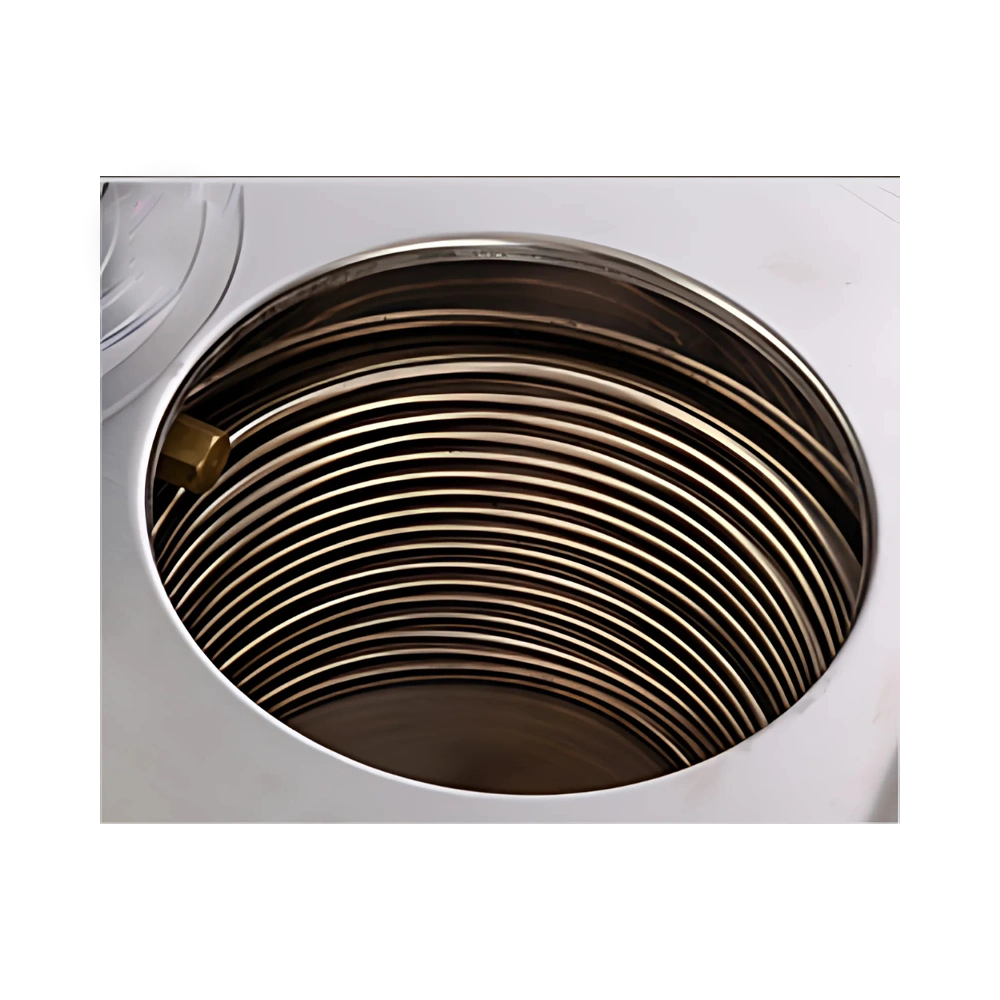

| Condensing coil | Φ10Copper tube nickel plated |
| Material | Cold plate spray anticorrosion |
| Compressor type | 1.5P |
| Compressor quantity | 2 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating |
| Compressor power | 2205W |
| Cooling capacity | 6972W |
| Total power consumption | 2447W |
| Power supply | 220V 50Hz 1phase |
| Outer loop interface | Φ16mm |
| Tank dimension | Φ300×200 mm |
| Packaging dimension | 890×750×1120 mm |
Features
Applications
Ask Expert
FAQ for Recirculating Chiller NRC-204
1: In which environments can this Recirculating Chiller NRC-204 be used?
Our Recirculating Chiller operates effectively in ambient temperatures between 5°C to 35°C with proper ventilation. It is well-suited for laboratories, pharmaceutical units, and chemical industries where stable cooling is required.
2: How is the temperature accuracy maintained?
The Recirculating Chiller is equipped with a PT100 temperature sensor, offering high precision with an accuracy of ±0.1°C. This makes it ideal for processes that demand strict temperature control.
3: Does the Recirculating Chiller NRC-204 provide good cooling performance?
Yes, our Recirculating Chiller delivers a powerful cooling capacity of 6972W and features a large heat exchange area of 11.1 square meter. This enables rapid temperature reduction and stable operation over long durations.
4: How often should the coolant be replaced?
It is recommended to check the coolant regularly and replace it every 3 to 6 months, depending on usage and contamination. Clean coolant ensures consistent cooling performance and prevents buildup in the system.
5: How can the Recirculating Chiller NRC-204 be cleaned safely?
The outer surface can be wiped with a soft, damp cloth using mild detergent. Internal components should be maintained as per the user manual, avoiding the use of harsh chemicals that could damage internal seals or coatings.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
