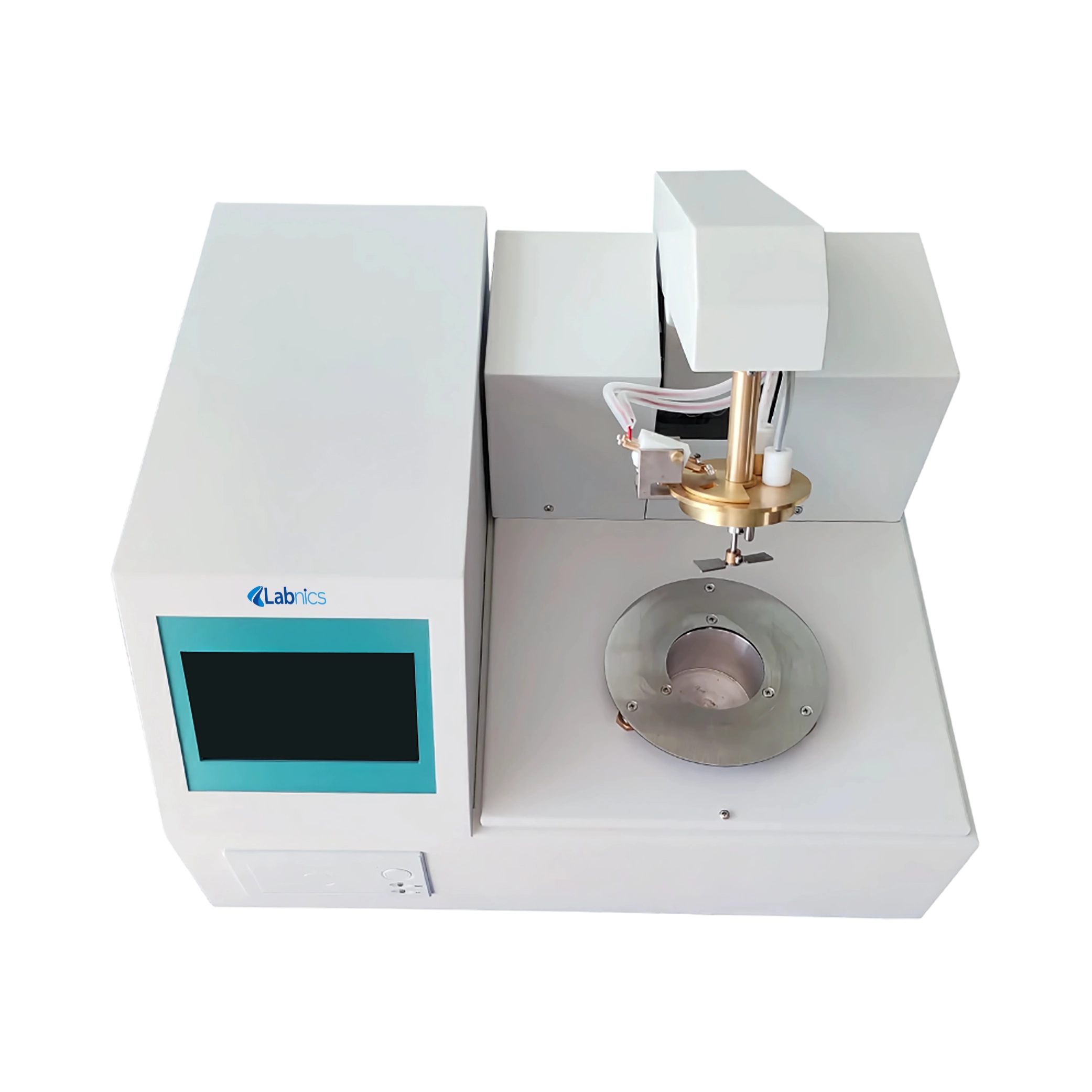

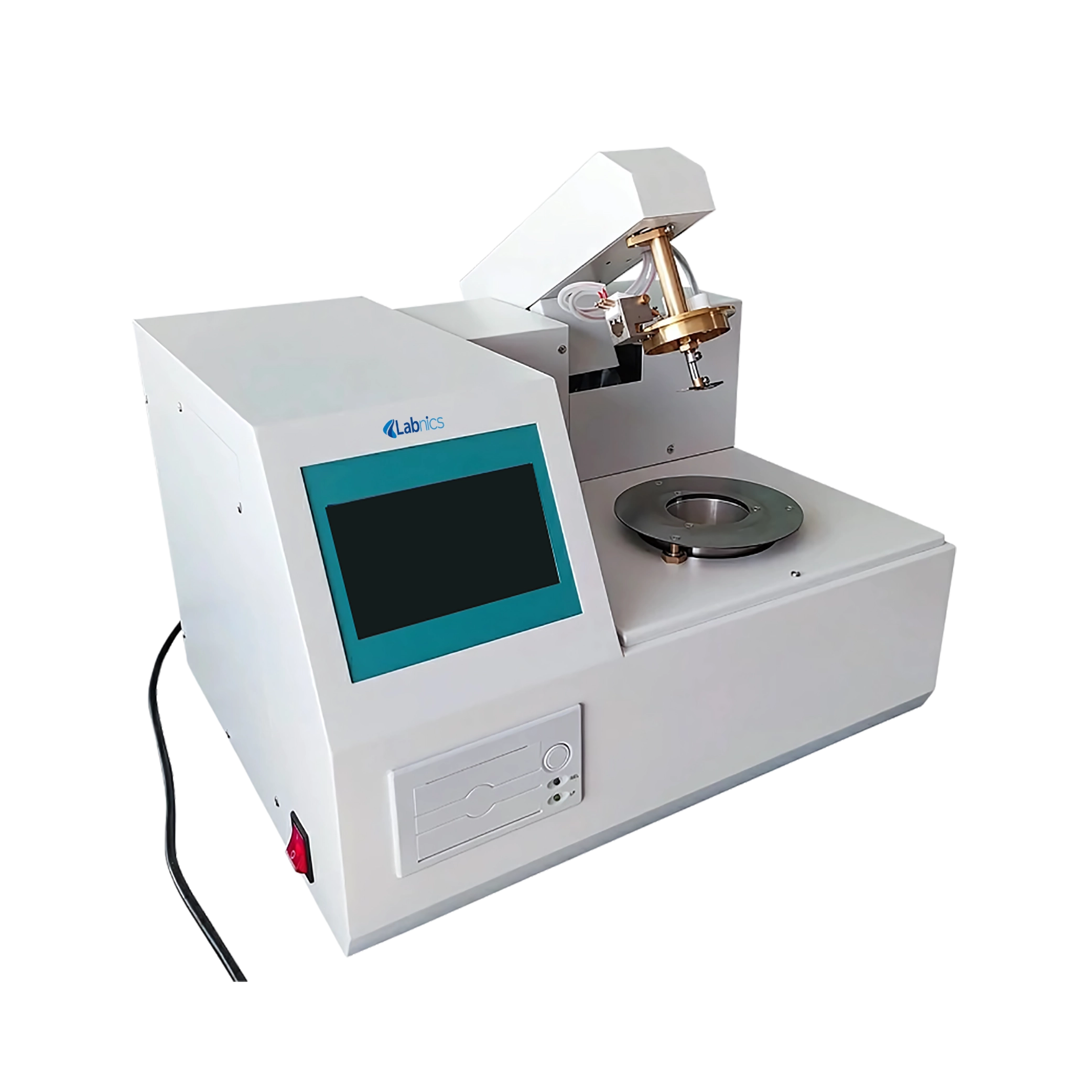

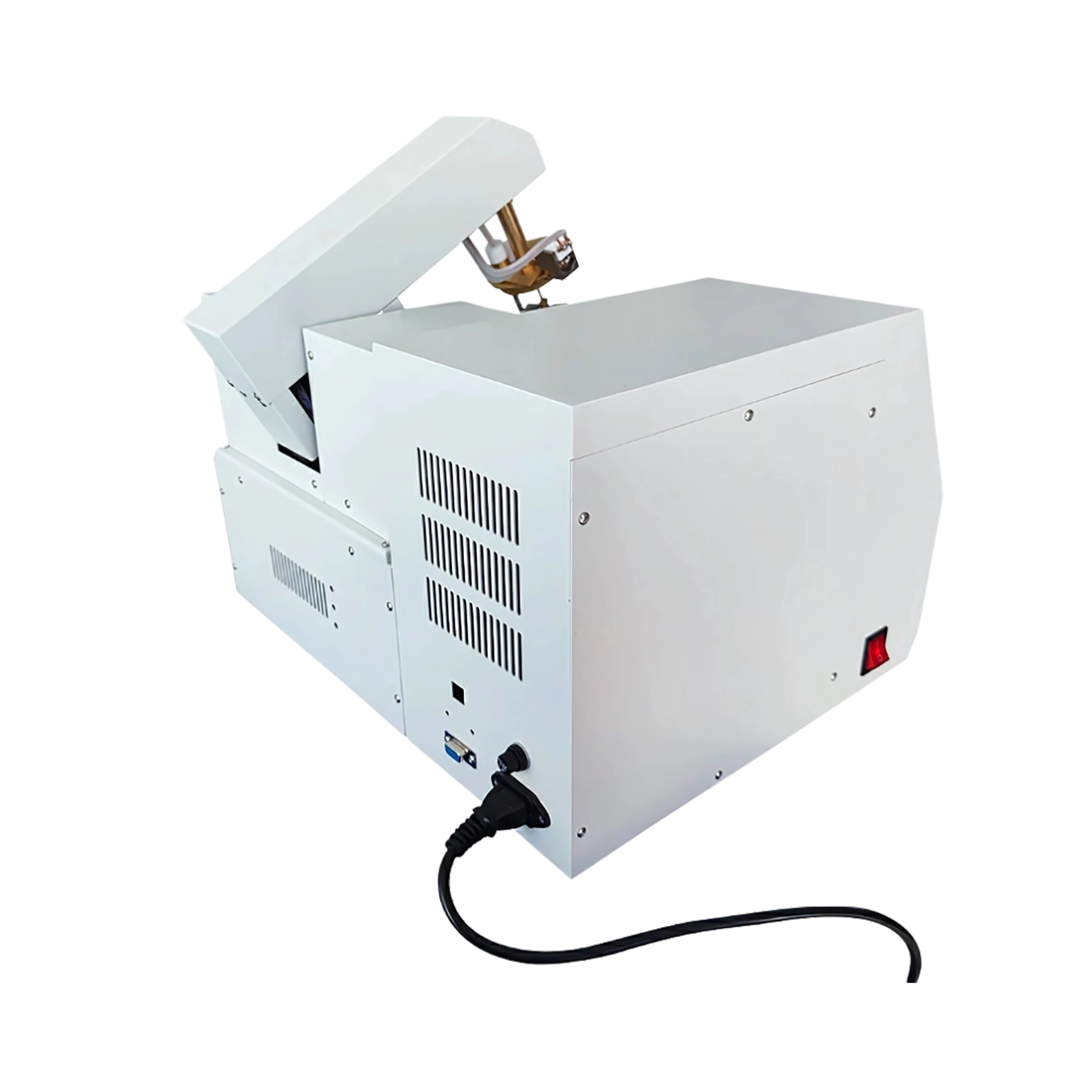

Flash Point Tester NFPT-101 measures temperatures between 40°C and 350°C to determine the flammability of various liquids. It utilizes ARM microprocessor technology for precise and reliable temperature measurements. Our unit features automatic ignition, which lights the sample automatically for enhanced ease and efficiency. It features a color LCD with a resistive touch screen, providing intuitive control and easy navigation.
Specifications
| Type | Closed-Cup |
| Measurement Range | 40 to 350 ℃ |
| Temperature Test | Platinum resistance |
| Environmental Temperature | 10 to 35 ℃ |
| Environmental Humidity | less than 85% |
| Repeatability | > 110 - 2°C = 110 - 1°C |
| Ignition Mode | Electric ignition |
| Data Storage | 1000 analysis results |
| Cooling Method | Forced air cooling |
| Printer | Thermal printer |
| Display Device | Color LCD display |
| Power Consumption | ˂ 350VA |
| Power Supply | 220V + 50Hz, 11V + 2.5HZ |
| Dimensions | 520 × 385 × 340 mm |
| Packaging Dimensions | 560 × 425 × 380 mm |
| Net Weight | 16 kg |
| Gross Weight | 21.7 kg |
Features
Applications
Standard Accessories
Sample cup × 1pcAsk Expert
Labnics Flash Point Tester ensures precise temperature measurement and regulation across a wide operating range. They are equipped with a built-in thermal printer for quick and efficient result printing. These testers are designed with safety and efficiency features to ensure consistent performance. They feature memory and data management capabilities for reliable data storage. Our units include a clear display for easy operation and viewing.
| Temperature measurement | 50 to 200℃ |
| Repetitive | ≤2℃ |
| Reproducibility | ≤ ±4℃ |
.png "Flash Point Tester NFPT-102")
| Type | Closed cup |
| Temperature control range | RT to 300℃ |
| Resolution | 0.1°C |
