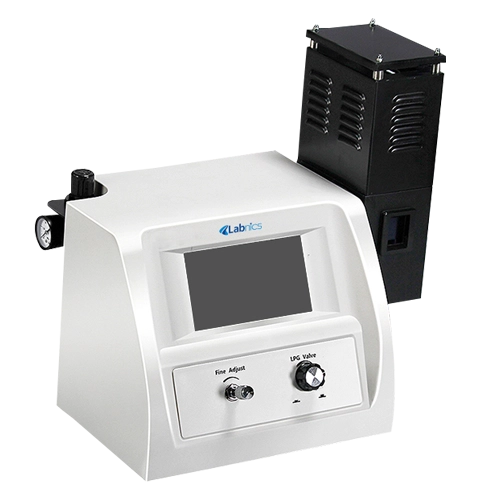

Flame Photometer NFP-104 is an analytical instrument that determines concentration of metal ions like K, Na and Ba in a test sample on the basis of their flame color and excitation wavelengths. It is supported with USB interface for data transfer and storage. It is featured with large color screen that displays and represents analyzed data in graphical curve format.
|Testing Elements||K, Na and Ba|
|Display Value||Concentration value|
|No of Channels||3|
|Range||K (0-100 ppm), Na(0-160 ppm), Ba(0-3000ppm)|
|LOD (in ppm)||K (0.01 ppm), Na(0.01 ppm), Ba(6 ppm)|
|Linear Error||K (0.195 ppm), Na (0.69 ppm), Ca(9 ppm)|
|Stability||<3% drift over 15s during continuous aspiration|
|Reproducibility||<3% coefficient of variation for 7 consecutive samples|
|Power consumption||250 W|
|Power supply||AC 220V±22V 50Hz±1Hz|
|Working Temperature||10°C -35°C|
|Relative Humidity||≤ 85% RH|
|Overall Dimensions||780×560×390 mm|
It has wide applications in areas like clinical laboratories, pathology, research laboratories, soil and fertilizer industries, petroleum and mining industries, chemical product manufacturing units, pharmaceutical and beverage industries.
|1||Built in thermal printer|
