Environmental Test Chamber NETC-301

Environmental Test Chamber NETC-301

Environmental Test Chamber NETC-301

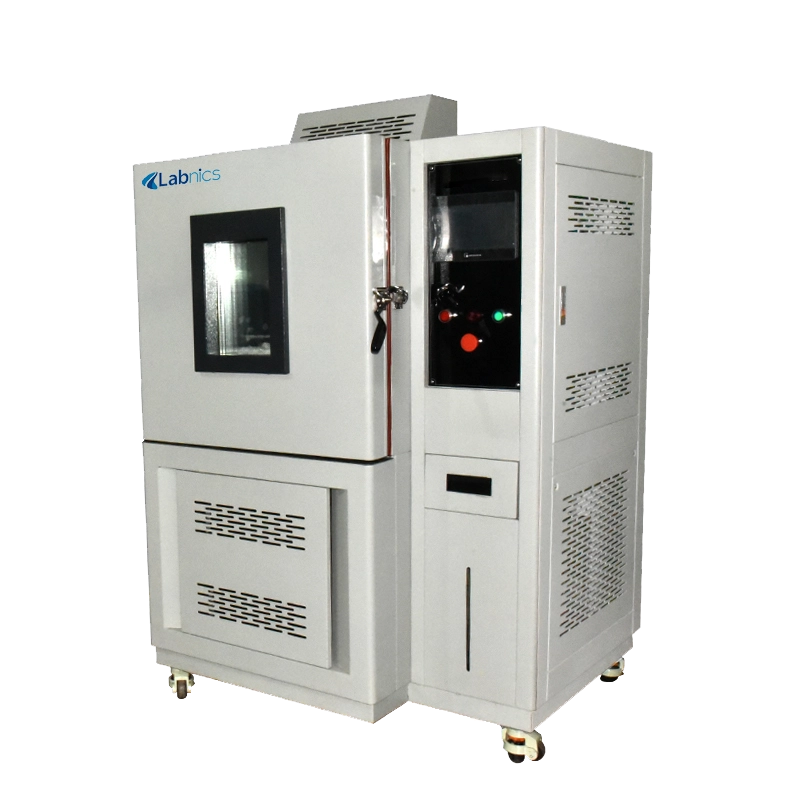

Environmental Test Chamber NETC-301 also known as climate chamber or climatic chamber is a controlled, artificial chamber that simulates or mimics environmental conditions such as temperature, humidity, air pressure, light, and motion on the test sample. Equipped with temperature controller and refrigeration unit, it helps effectively regulate the test parameters. These chambers are an important tool to help test various parameters that crucially affect the test’s sample performance.

Specifications

Capacity 100 L
Temperature range -70°C ~150°C
Humidity range 20%RH ~ 98%RH
Temperature fluctuation ± 0.5°C
Temperature accuracy ≤ 2.0°C
Humidity accuracy ± 2/3% RH (>75%RH); ± 5% RH (<75%RH)
Heating speed 3°C/min
Cooling speed 0.8°C-1.2°C/min
Display accuracy ≤ 2%
Load division value 0.01°C
No. of shelves 03
Internal material SS 304, 1.0 mm thick stainless-steel plate
External material Electrostatically sprayed 1.2 mm cold-rolled steel plate
Insulation material 100 mm thick fibre cotton
User interface USB connector
Working temperature +5°C~35°C
Power consumption 7 kW
Power supply AC 380/220 ±10V; 50Hz
Internal dimension 400 × 500 × 500 mm
Overall dimension 900 × 1000 × 1650 mm
Weight 280 kg

Features

Applications

Widely employed in medicine, pharma, food processing, food packaging, consumer goods and services, automotive, engineering, and construction industries.
