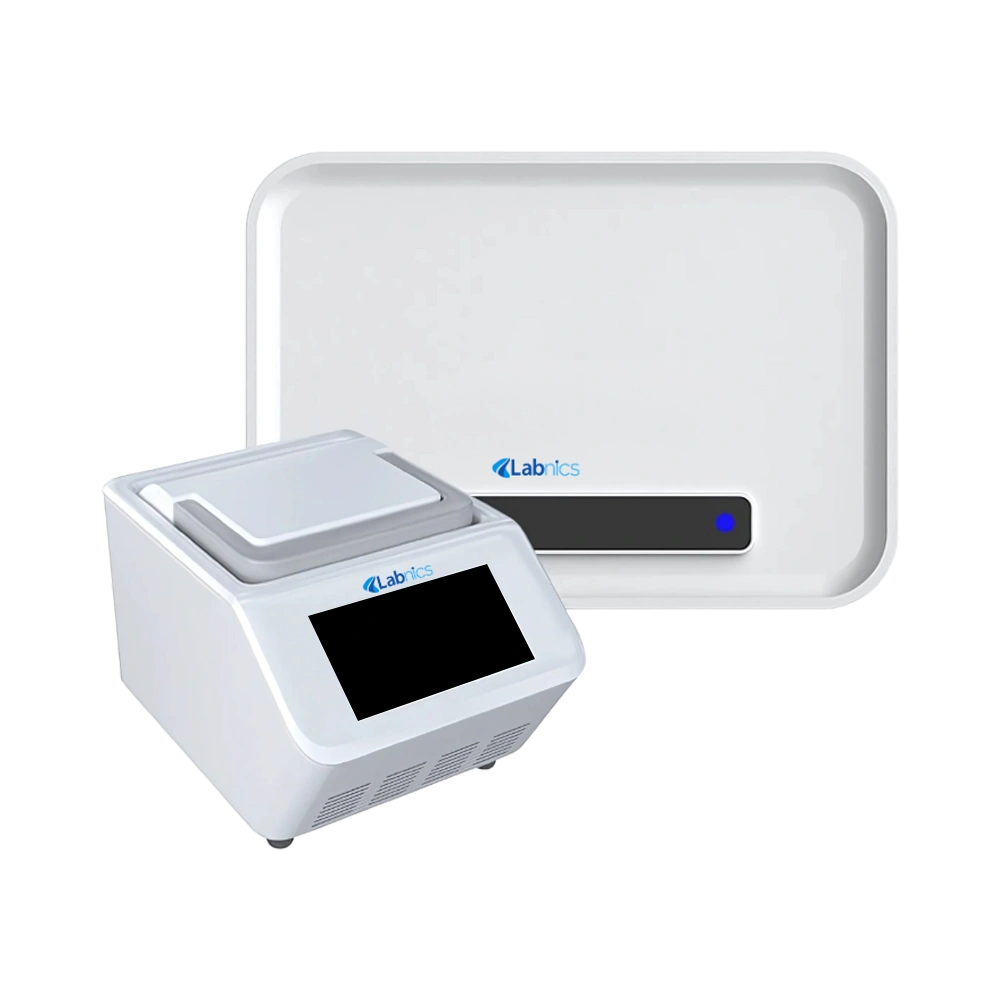

Digital PCR System NDTP-102 offers six fluorescence channels for multiplex target detection. It provides a rapid sample preparation time of ≤10 seconds per piece for high workflow efficiency. This unit features a micro-cavity chip with precise solid-phase segmentation for accurate results. It supports single-copy detection for ultra-sensitive testing. Our PCR system uses a high-efficiency maintenance-free LED light source for stable performance.
| Number of fluorescence channels |
6 |
| Sample detection throughput |
At least 12 samples at one time |
| Daily detection throughput |
360 in a single day (8 hours) |
| Reaction volume |
15µl standard, adjustable within the 40µl range |
| Droplet preparation |
Pipetting without an additional microdroplet generation system |
| Sample preparation time |
≤10 seconds/piece |
| Sample detection time |
≤1 minute/piece, ≤12 minutes/12 pieces |
| Detection sensitivity |
≤0.001%, can detect single-copy genes |
| Dynamic range |
≥5 orders of magnitude, 1 to 250000 copies/sample |
| Reagent versatility |
Compatible with the probe method and dye method |
| Compatible dyes |
Atto425, FAM, SYBR Green, EvaGreen, VIC/HEX, JOE, CY3, TAMARA, ABY, ROX, JUN, TYE655, CY5, Texas Red, CY5.5 and other similar wavelength dyes |
| Supporting reagents |
10× high-concentration DNA detection reagent and 5× RT-dPCR one-step RNA detection reagent |
| Maximum sample input |
≥12 µl |
| Excitation light source |
High-efficiency maintenance-free LED light source |
| Detector |
High-resolution CMOS sensor |
| Valid time of chip reading |
Read repeatedly within 2 weeks |
| Micro-reaction unit |
Micro-cavity chip, solid phase segmentation |
| Bio-chip type |
10k, 22k, 120k option, other types are customizable |
| Software |
Calculation of copy number, copy number concentration, mutation abundance, confidence interval range, accuracy; threshold line automatic or manual division, single or unified threshold division; output excel data, two-dimensional scatter plot, two-dimensional bar chart, three-dimensional space map; automatically identify complex droplet clusters, output chip actual hole position discrimination map; data quality control function, etc. automatically generate test reports |
| Data security |
Permission management, auditing, and electronic signature functions to ensure the validity and reliability of data and meet FDA 21 CFR Part 11 compliance requirements |
| Power supply |
220V/50Hz to 60Hz |
| Dimension |

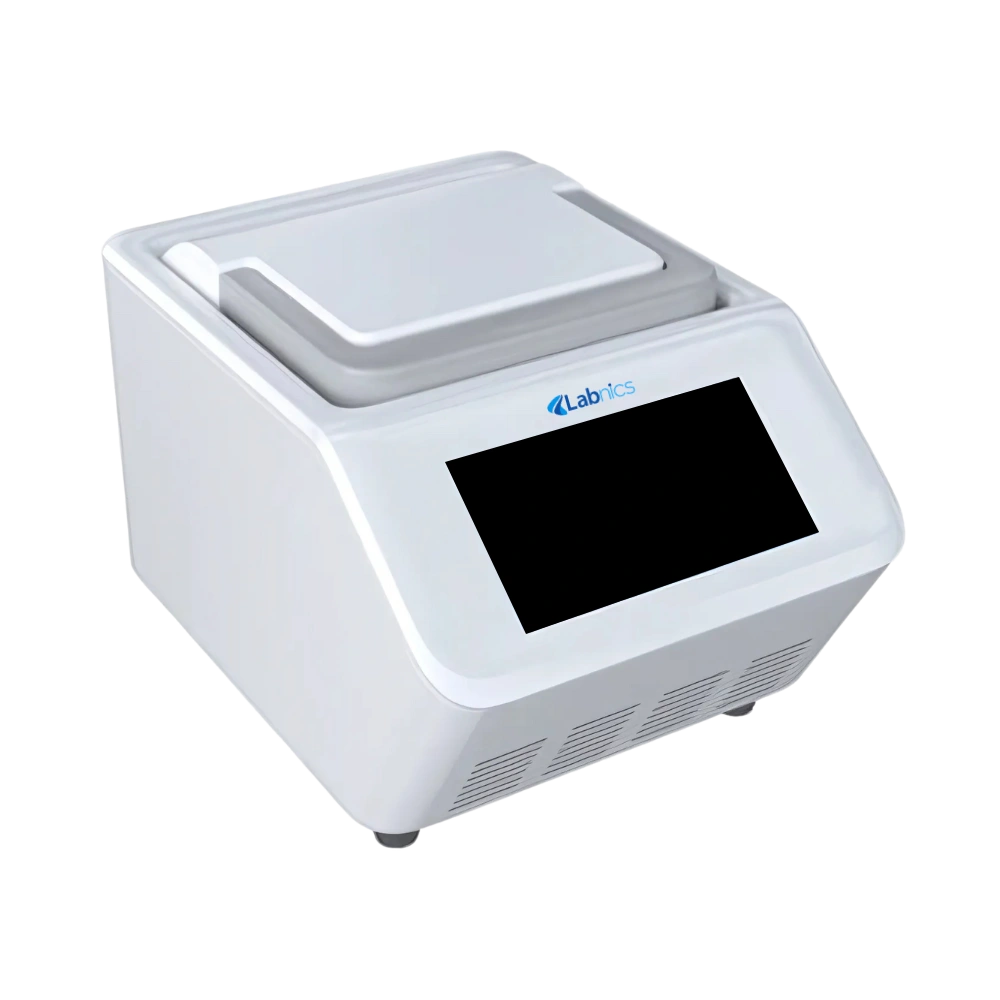

Thermal cycler: 480×330×340mm

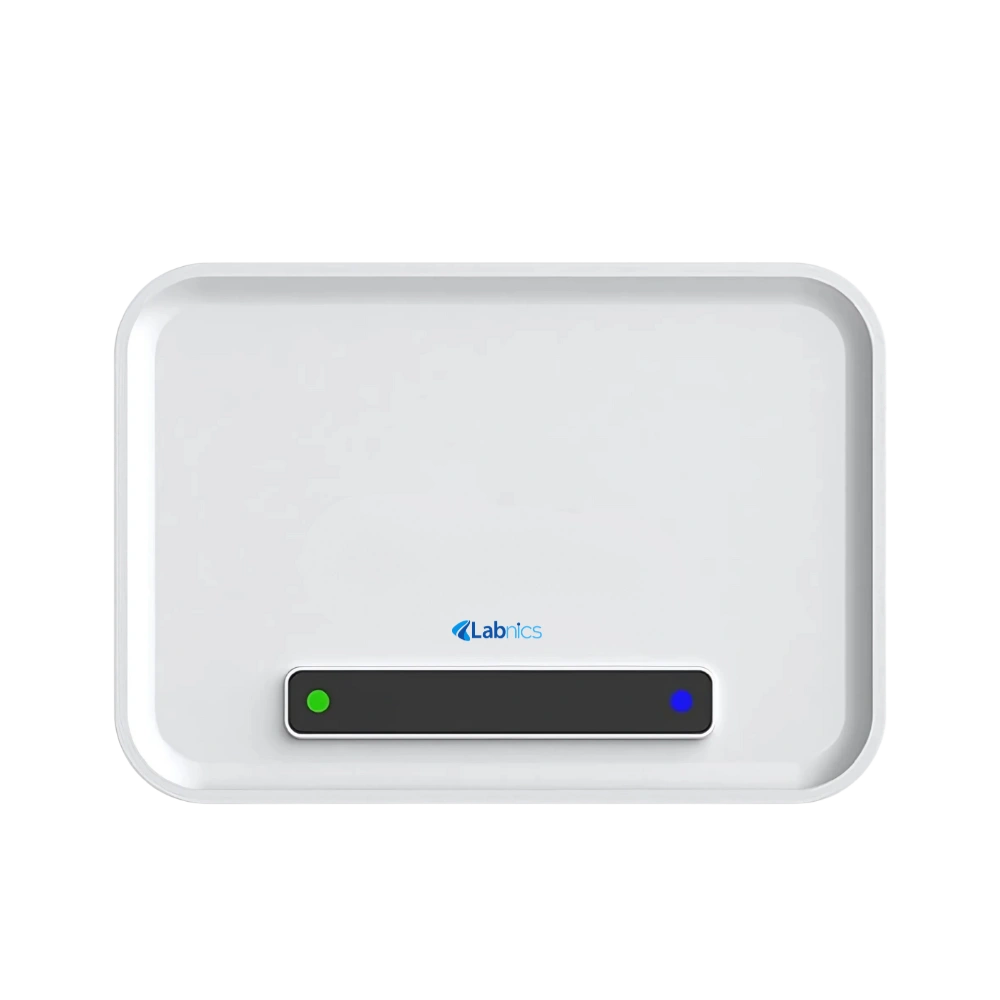

Biochip reader: 475×385×308mm |
| Net weight |
Thermal cycler: 8.9kg
Biochip reader: 1.2 kg |
FAQ for Digital PCR System NDTP-102
1: How easy is it to operate the Digital PCR System NDTP-102?
The Digital PCR System is designed with a simplified workflow that requires only pipetting for droplet preparation, removing the need for a separate droplet generation device. The user-friendly interface and automated analysis functions make operation straightforward even for those with minimal training.
2: What kind of maintenance does the Digital PCR System NDTP-102 require?
Our Digital PCR System uses a maintenance-free LED light source, reducing the need for frequent part replacements. Regular cleaning and proper storage of chips are the main upkeep tasks, keeping operational downtime minimal. This low-maintenance design ensures consistent performance over time.
3: Can the Digital PCR System NDTP-102 detect very low concentrations of genetic material?
The Digital PCR System delivers exceptional sensitivity with the ability to detect down to 0.001% or single-copy genes. This makes it ideal for applications such as rare mutation detection, minimal residual disease monitoring, and pathogen identification in low-abundance samples.
4: How long can chips be reused for data reading?
Our Digital PCR System allows repeated reading of chips for up to two weeks without loss of data integrity. This feature enables reanalysis or verification without re-running experiments. It provides flexibility and cost efficiency in sample handling.
5: What are the main cleaning requirements for the Digital PCR System?
Our Digital PCR System only requires gentle cleaning of the chip loading area and optical surfaces using recommended, lint-free materials. Regular removal of dust or debris helps maintain signal accuracy and prevents contamination. Following proper cleaning protocols ensures long-term reliability.
6: What types of samples can be tested with this Digital PCR System?
The Digital PCR System can handle a wide variety of samples, including clinical, environmental, and biopharmaceutical specimens. It is suitable for DNA, RNA, and other nucleic acid analyses. Its biochip technology ensures consistent results even with low-abundance targets.
7: How reliable are the results at low concentrations?
The Digital PCR System maintains high accuracy even at very low nucleic acid concentrations. Its advanced partitioning and biochip technology ensure reproducible results. Low-abundance targets are reliably quantified without errors.
8: How often should the Digital PCR System be cleaned?
The Digital PCR System should be cleaned regularly after each use to ensure optimal performance. Wiping the exterior and touchscreen with a soft, lint-free cloth and using recommended cleaning solutions for the biochip area prevents contamination and maintains accuracy.
9: What type of maintenance is required for the biochip technology?
Biochips should be handled carefully and stored as per the manufacturer’s instructions. Regular inspection for residue or damage and proper cleaning of the chip holder ensures consistent performance and prolongs its lifespan.
