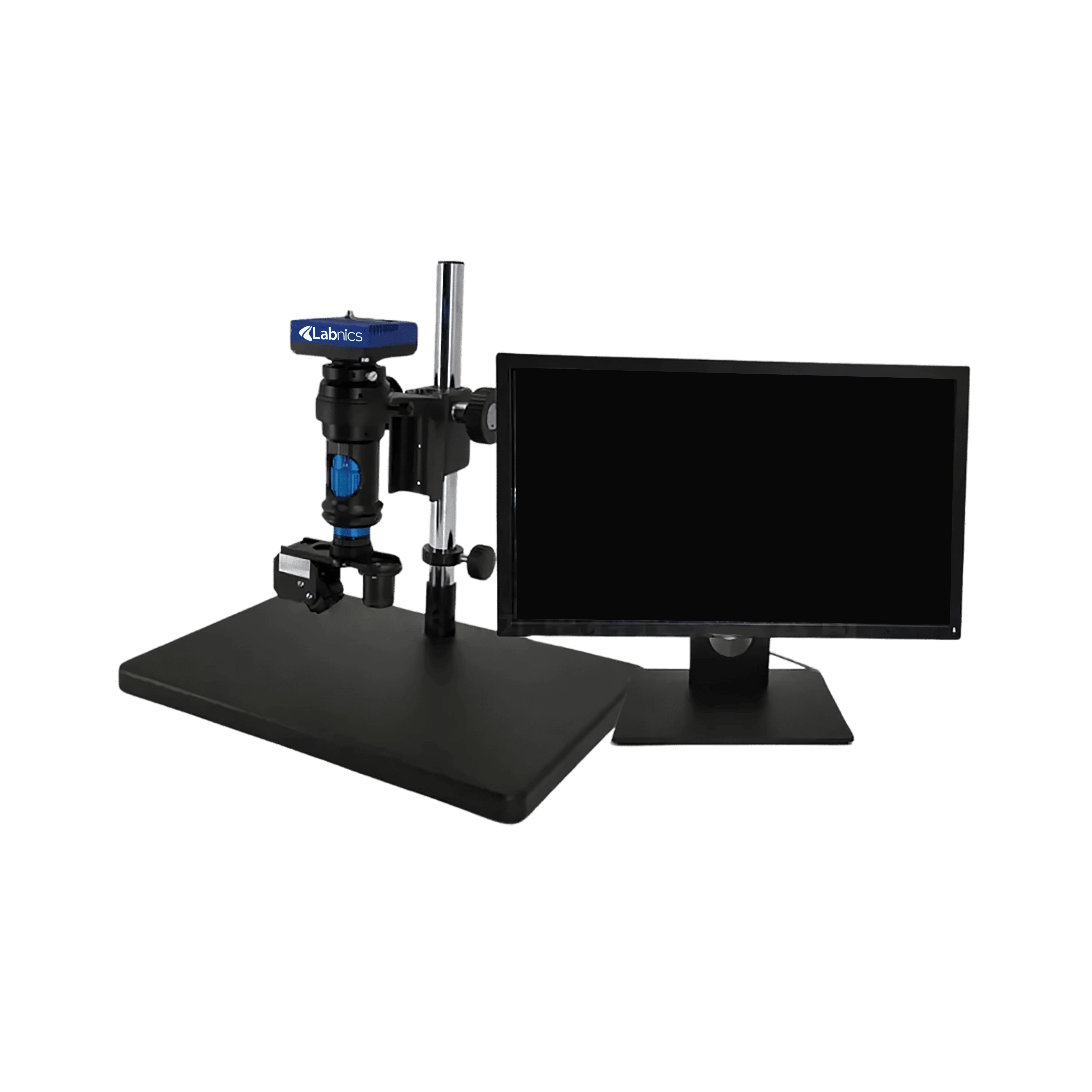

Digital Microscope NPDM-101 offers 20× to 150× magnification for versatile applications. It maintains a fixed observation angle of 36° to provide optimal viewing comfort. This unit enables manual switching between 2D and 3D modes for flexible inspections. It uses a long-life LED light source for consistent and energy-efficient illumination. Our microscope features a built-in cross curve function for accurate alignment and measurement.
$3,200.00
| Standard magnification | 20× to 150× |
| Field of view | 3.5 to 25mm approx |
| Continuous zoom objective | 0.3 to 2.2×, objective zoom ratio 7:1 |
| Observation angle | 36° |
| Angle operation control | Manual 2D and 3D switching |
| Image capture camera pixel size | 3.75×3.75μm |
| Image capture camera data | 12bit |
| Image capture camera sensor | 1/2 |
| Image capture camera resolution | 2592×1944 |
| Display | 22-inch full HD HDMI display |
| Output interface | HDMI Full HD Output Interface |
| Lighting source | LED |
| Basement dimension | 320×260×16mm |
| Power supply | AC100V to 240V, 50/60Hz |
Data and image storage
Innovative optical system
Low noise sensor output
Easy navigation interface
3.75μm pixel size
Edge detection support
Digital Microscope NPDM-101 is used for high-precision observation and measurement due to its advanced imaging capabilities, making it ideal for applications in microelectronics, precision electronics, solder joint inspection, hardware molds, forensic analysis, life sciences, and plant morphology.
1: Is Digital Microscope NPDM-101 easy to operate and view the results?
Definitely. It comes with a 22-inch full HD HDMI display, so you can see every detail in real-time without connecting to a computer, and the interface is user-friendly.
2: How portable is the Digital Microscope NPDM-101?
It has a compact and lightweight design, making it easy for you to move or reposition as needed in labs, workshops, or classrooms.
3: Can I view multiple samples in one session?
Yes, the wide and flat field of view (3.5mm to 25mm) and adjustable zoom make it easy to examine different sample sizes in a single session.
4: Is it good for long work sessions?
Yes, the LED lighting is long-lasting, and the system is designed for stable, continuous use without overheating or performance loss.
5: How do you maintain the Digital Microscope NPDM-101 for long-term use?
You should regularly clean the lens with a soft microfiber cloth, keep the base and display dust-free, and ensure the LED lighting vents stay unobstructed for proper cooling.
