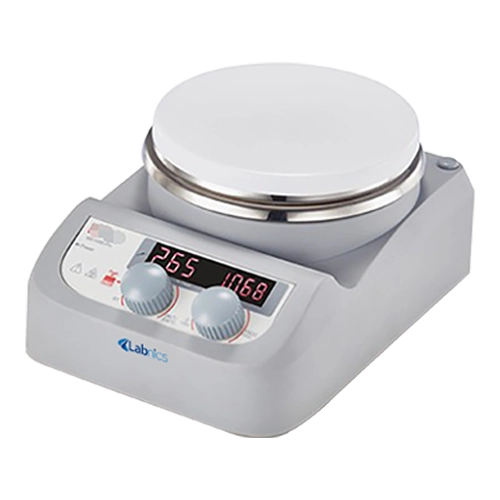

Digital Hotplate NDH-100 is benchtop laboratory equipment used to perform various heating procedures like digestion, evaporation and dissolution etc. It has a ceramic top coat that prevents it from chemical corrosion. It is regulated with temperature sensors made up of platinum to effectively monitor temperature fluctuations. It displays high temperature warning that ensures the safety of equipment and the user.
Specifications
| Work plate Dimension | φ135mm (5 inches) |
| Work plate material | Stainless steel with ceramic coat |
| Motor type | Brushless DC motor |
| Motor rating input | 5W |
| Motor rating output | 3W |
| Heating output | 500W |
| Power Supply | 515W ,100-120/200-240V 50/60Hz |
| Speed display resolution | ±1rpm |
| Heating temperature range | 280 °C ± 1°C |
| Control accuracy of work plate | ±1°C (<100°C) ±1 %(> 100°C) |
| Over heat Protection | 320°C |
| Temperature display accuracy | ±1°C |
| PT1000 accuracy | ±0.5°C |
| Dimension (W x D x H) | 150×260×80 mm |
| Weight | 1.8 kg |
| Permissible ambient temperature and humidity | 5-40℃ 80%RH |
Features
Applications
Ask Expert
| Work plate Dimension | 184 ×184 mm |
| Work plate Material | Glass ceramic |
| Heating Position | 1 |
| Work plate material | Stainless steel with ceramic coating |
| Work plate size | Φ 135 mm |
| Stirring capacity | 20 L |
| Work plate material | Stainless steel with ceramic coating |
| Work plate size | Φ 135 mm |
| Stirring capacity | 20 L |
| Top plate dimension | 180×180mm |
| Stirring capacity | 50ml-5000ml |
| Maximum temperature for top plate | 325°C |
| Maximum temperature setting | 450℃ |
| Maximum temperature setting with E-sensor | 300℃ |
| Safety temperature | 50 to 500 ℃ |
| No of Positions | 2 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 50ml-1000ml |
| No of Positions | 2 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 500ml-5000ml |
| Stirring capacity | 20L |
| Motor input power | 60W |
| Motor output power | 50W |
| Stirring capacity | 40L |
| Motor input power | 120W |
| Motor output power | 100W |
| Stirring capacity | 20L |
| Motor input power | 60W |
| Motor output power | 50W |
