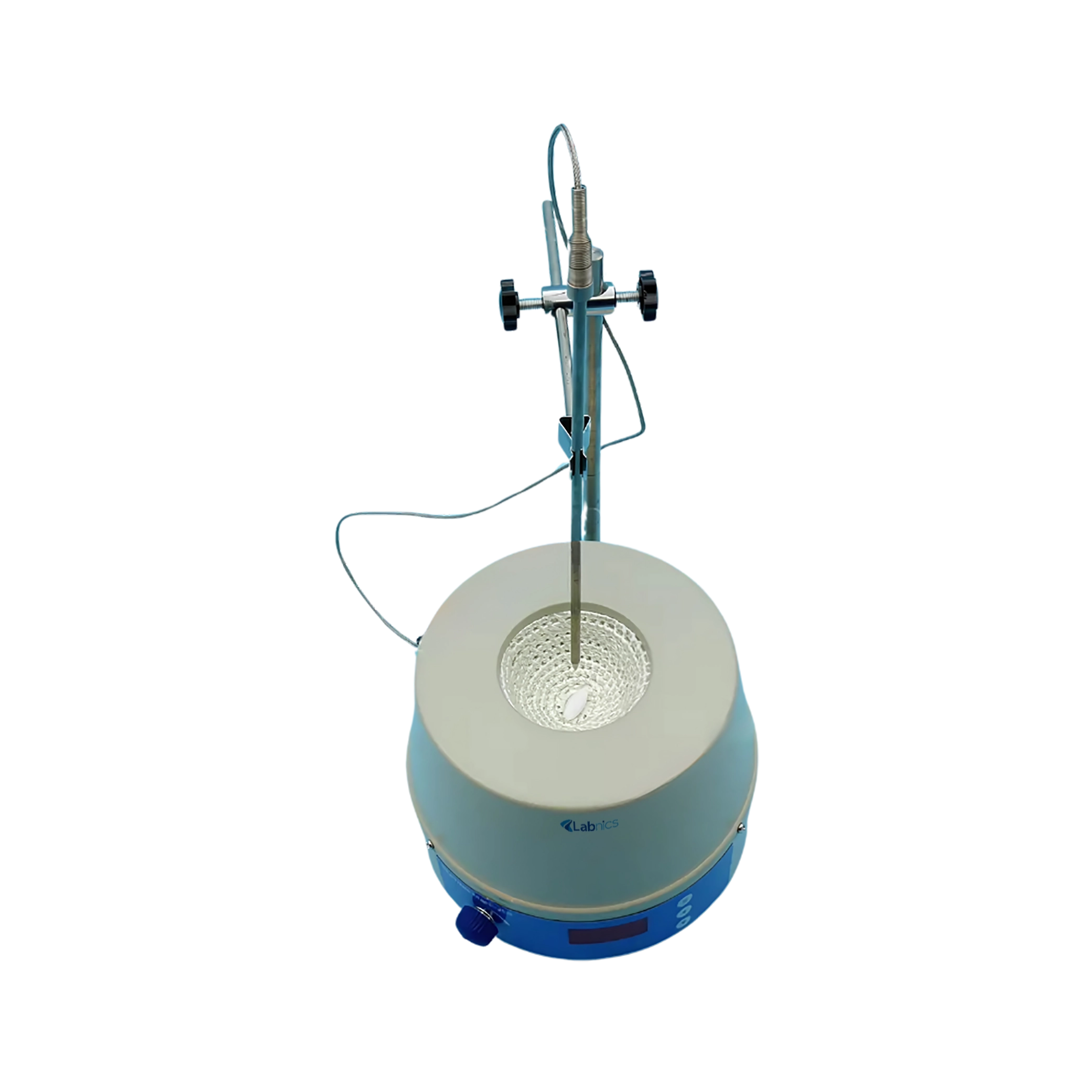

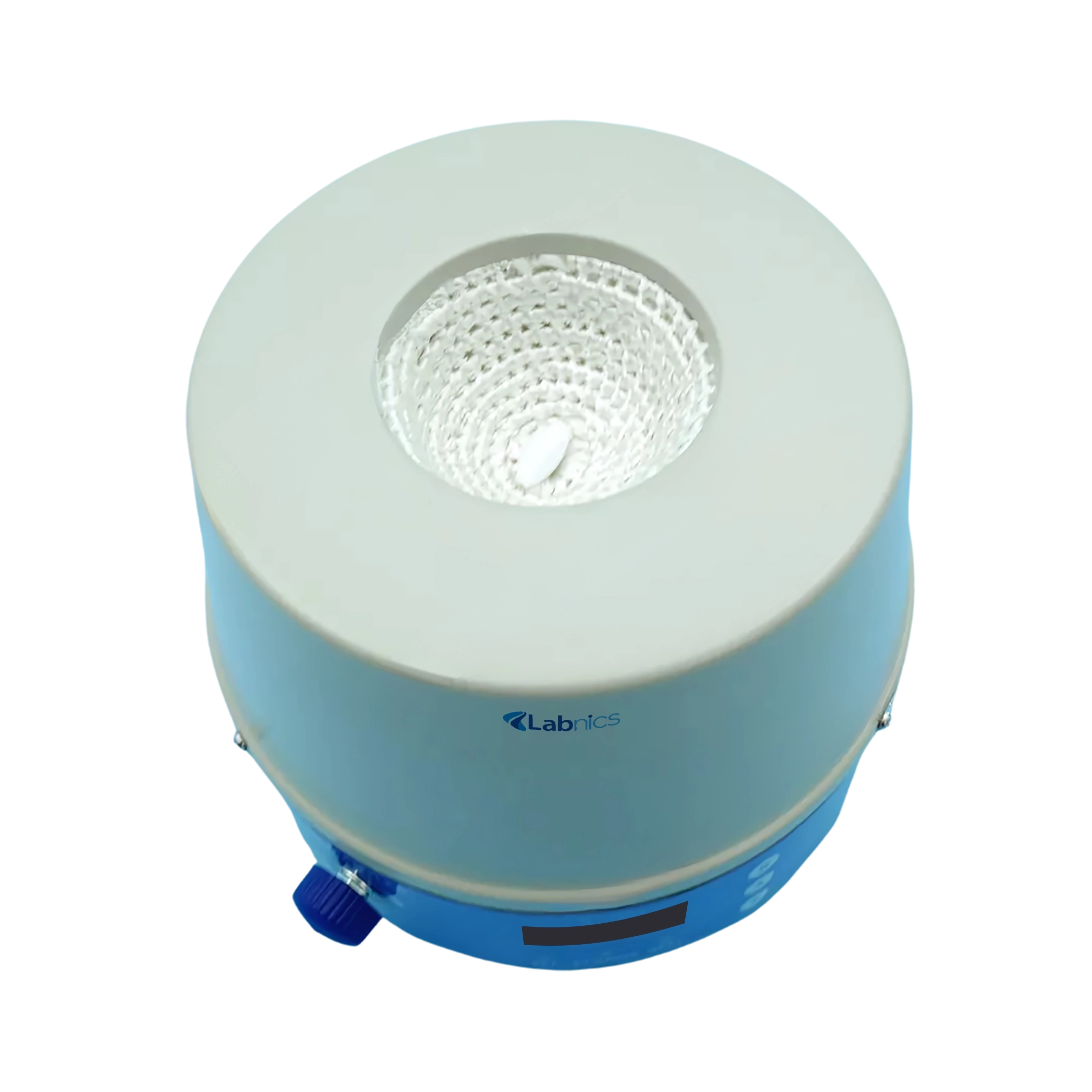

Digital Heating Mantle NDHM-103
Digital Heating Mantle NDHM-103 is a compact laboratory equipment which is used to heat or temper a liquid by means of the heating elements present in the heating mantle. Equipped with PID temperature controller, it provides uniform heat distribution for round bottom flasks. The mantle is designed in a manner to securely hold flasks so that the top half of the flask is easily visible during operation.
| Capacity | 500 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| Power | 250 W |
| Heating element | Nichrome wire |
| Working time | Continuous |
| Exterior dimension | φ 220 × 165 mm |
| Packaging dimension | 230 × 215 × 195 mm |
| Power supply | AC 110/220 V , 50/60 Hz |
| Net Weight | 2.5 kg |
| Gross Weight | 2.8 kg |
They are widely used for scientific experiments in across various laboratories for heating/ tempering liquid samples.
| Capacity | 50 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 380 °C |
| Power | 80 W |
| Capacity | 100 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 380 °C |
| Power | 100 W |
| Capacity | 250 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 380 °C |
| Power | 150 W |
| Capacity | 500 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 380 °C |
| Power | 250 W |
| Capacity | 1000 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 380 °C |
| Power | 350 W |
| Capacity | 2000 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 380 °C |
| Power | 450 W |
| Capacity | 3000 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 380 °C |
| Power | 600 W |
| Capacity | 5000 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 380 °C |
| Power | 800 W |
| Capacity | 10000 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 380 °C |
| Power | 1200 W |
| Capacity | 20000 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 380 °C |
| Power | 2500 W |
| No. of slots | 2 |
| Capacity | 100 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 2 |
| Capacity | 250 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 2 |
| Capacity | 500 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 2 |
| Capacity | 1000 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 4 |
| Capacity | 100 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 4 |
| Capacity | 250 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 4 |
| Capacity | 500 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 4 |
| Capacity | 1000 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 6 |
| Capacity | 100 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 6 |
| Capacity | 250 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 6 |
| Capacity | 500 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 6 |
| Capacity | 1000 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 2 |
| Capacity | 100 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 2 |
| Capacity | 250 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 2 |
| Capacity | 500 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 2 |
| Capacity | 1000 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 4 |
| Capacity | 100 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 4 |
| Capacity | 250 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 4 |
| Capacity | 500 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 4 |
| Capacity | 1000 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 6 |
| Capacity | 100 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 6 |
| Capacity | 250 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 6 |
| Capacity | 500 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
| No. of slots | 6 |
| Capacity | 1000 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 450 °C |
