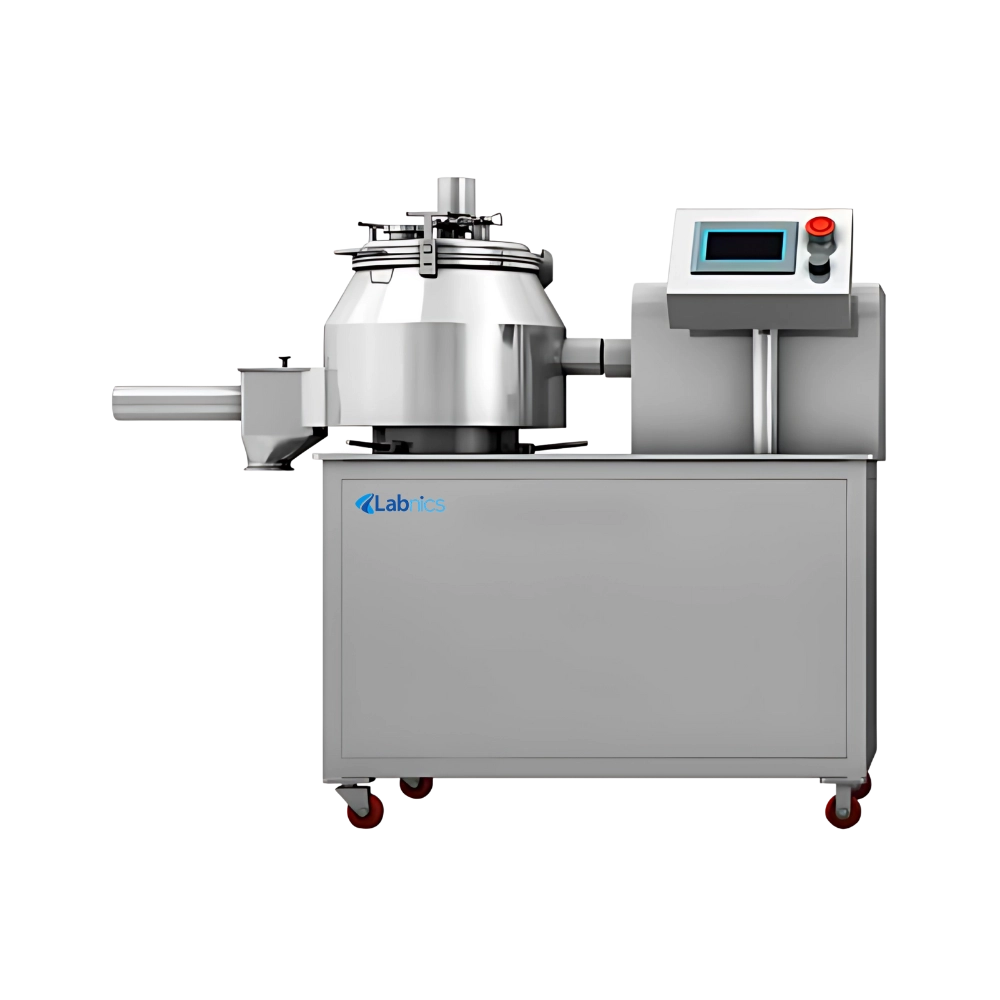

High Speed Mixer Granulator NHMG-100 comes with a 50L granulating pot and supports a 10 to 20kg batch capacity. It features VFD-controlled impeller and chopper motors for precise speed control. Our unit includes a transparent lid and manual discharging for ease of operation and monitoring. This integrates PLC control with multi-level access and recipe management. It is constructed with 316L stainless steel and designed for mobility with wheels and a platform.
$56,150.00
| Production Capacity | 10 to 20 kg per batch |
| Mixing motor power | 4 kW |
| Mixing impeller rotation speed | 15 to 220 rpm |
| Granulating motor power | 2.2 kW |
| Granulating chopper speed | 300 to 2800 rpm |
| Compressed air consumption | 0.1 m³/min |
| Compressed air pressure | 0.3 to 0.6 MPa |
| Power Consumption | 6.2kw |
| Packaging Dimensions (W × D × H) | 1580 × 980 × 2000 mm |
| Net Weight | 660 kg |
| Gross Weight | 740 kg |
Interchangeable granulating pots
Recipe management system
Multi-level access
Batch size flexibility
Safety interlocking system
Manual binder feeding
High Speed Mixer Granulator NHMG-100 is used for wet granulation in pharmaceutical R and D. It is ideal for optimizing blending and binder addition processes efficiently.
Motor
Explosion proof design
Control system with higher configuration
Control system of higher configuration
Printer
Power switch
25L Interchangeable granulating pot
10L Interchangeable granulating pot
Pneumatic auto discharging system
Wet co-mill
Wet cone mill screen
Binder spraying system
Peristaltic pump
Spraying nozzle
Extra nozzle needle inserts 1
Spraying nozzle
Extra nozzle needle inserts 2
Wearing parts
1: Can the High Speed Mixer Granulator NHMG-100 handle both wet and dry granulation?
Yes, it supports both wet granulation by adding binder solutions and initial dry blending steps in dry granulation processes.
2: What is the typical batch size of the NHMG-100 High Speed Mixer Granulator?
Our High Speed Mixer Granulator supports batch sizes ranging from 10 to 20 kg, ideal for R and D and pilot-scale production.
3: Is the granulator suitable for scale-up studies?
Yes, it's ideal for pilot-scale production and R and D, making it excellent for scale-up process validation
4: How is the material discharged from the bowl?
This unit includes a manual discharging system for controlled and easy unloading of granulated material.
5: What safety features are included in model NHMG-100?
It includes safety interlocks, emergency stop buttons, and lid sensors to ensure operator protection.
