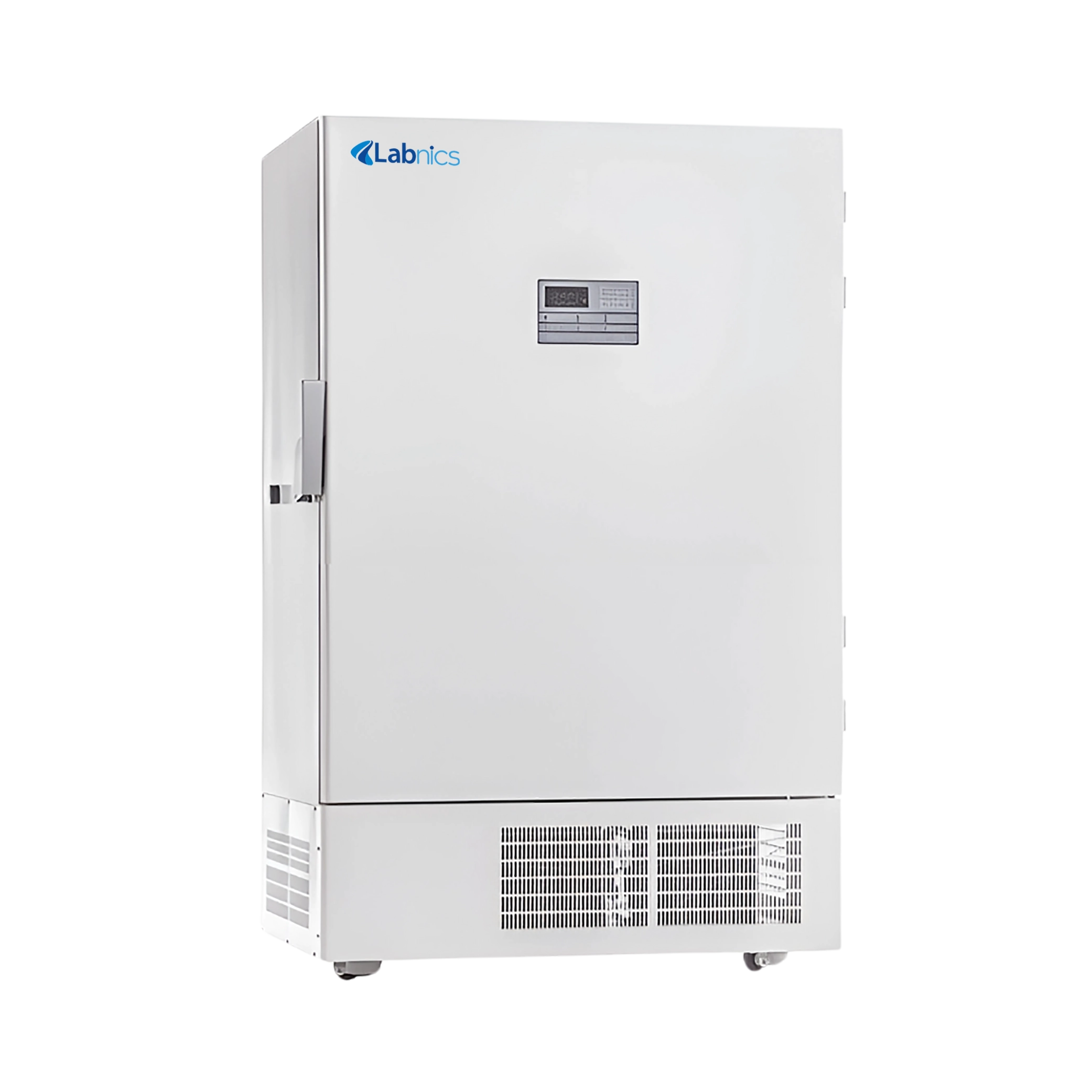

Deep Freezer NDF-103
Deep Freezer NDF-103

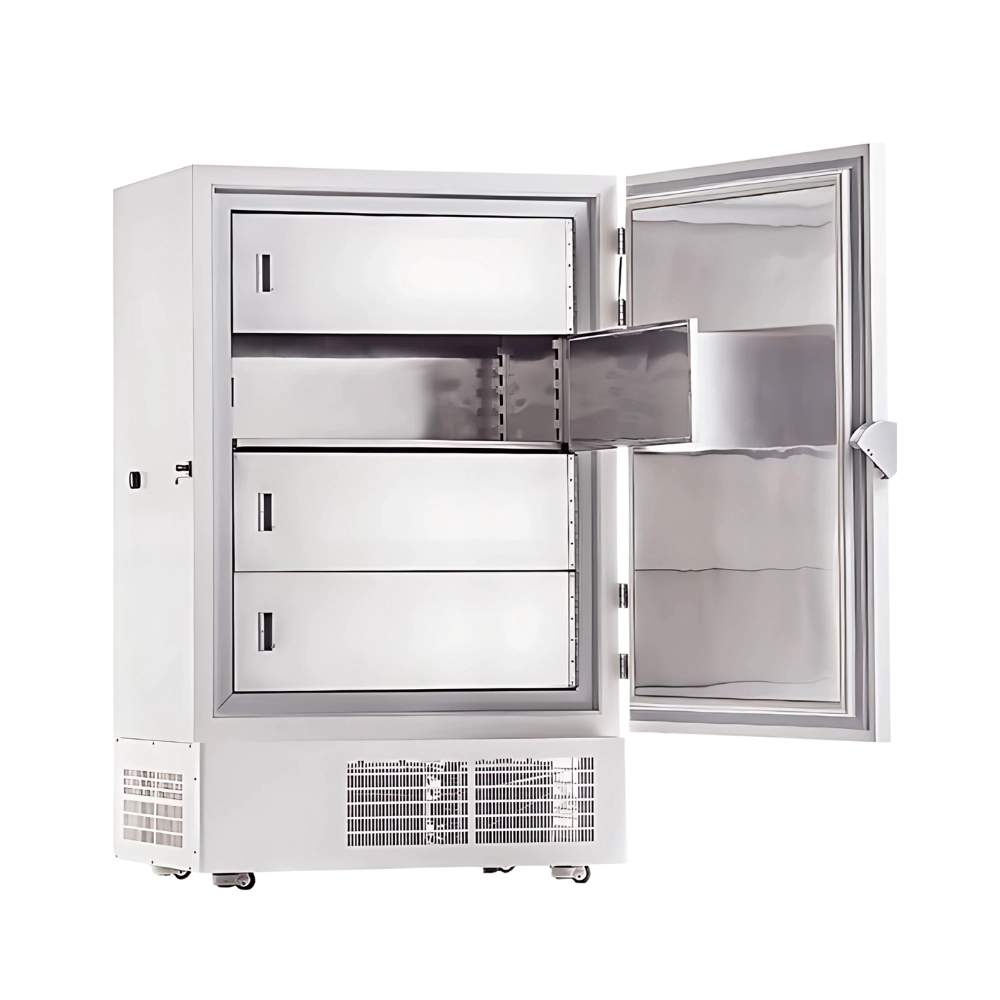

Deep Freezer NDF-103 is an ergonomically designed upright cold storage system with a low-temperature range of -10oC to -25oC . It is a microprocessor-controlled system that enables effective and safe storage of medical and pharmaceutical vaccines, blood plasma, serum and many other biological materials etc. It is compartmentalized with an inner door for each cabinet that prevents loss of cooling temperature and maintains uniform temperature stability. It is equipped with a visual and audible alarm system, ensuring the safety of the equipment against power or thermostat failure.
Specifications
| Capacity (L) | 936 L |
| Cooling method | Direct Cooling |
| Defrost | Manual |
| Refrigerant | R404A |
| Power consumption(kWh/24h) | 10 |
| Noise（db) | 50 |
| Ambient temperature（°C） | 10~32 °C |
| Temperature range(°C) | (-10℃ ~ -25℃) |
| Power Supply (V/Hz) | 187~242/50~60; 115/60 |
| Power (W) | 1000W |
| Current (A) | 5.8 A |
| External Dimensions (W×D×H) | 1320×980×2100 mm |
| Internal Dimensions (W×D×H) | 1000×700×1335 mm |
| Net weight | 377 kg |
Features
- ✔ Embedded handle design
- ✔ High Definition Digital display
- ✔ Secured Digital door lock setting with password for authorized access only
- ✔ Chemically stable, CFC-free, hence environmentally safe refrigerant
- ✔ Visual and audible alarm system for temperature fluctuations, sensor error, door ajar, and thermostat failure etc
- ✔ Easy maintenance of memory functions of standard working cycle in spite of any sensor failure
Applications
It is widely used in scientific research institutes, Cell culture laboratories, blood banks, and in areas like Clinical research, Biomedical and biotechnology based industries.
Standard Accessories
| Accessories No | Name |
| 1 | 4 x Caster |
| 2 | Remote alarm port |
| 3 | 1/18 MM Test hole |
| 4 | USB port |
