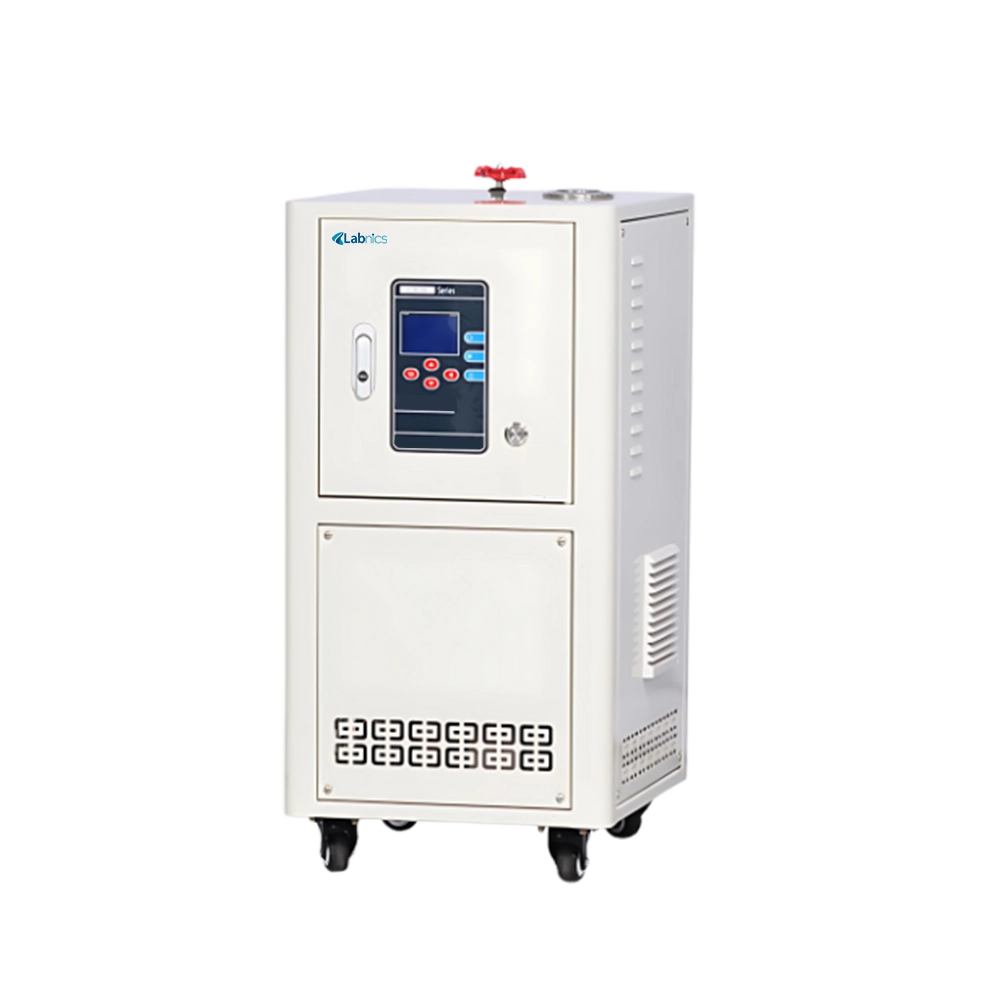

Heating Circulator NHTC-105
Heating Circulator NHTC-105 offers a 19L capacity and provides precise temperature control for various applications. It is crafted with a high-quality stainless steel circulation system for corrosion resistance and durability. Our unit features an enclosed oil-based electric heating system to prevent oil mist volatilization. It includes a user-friendly interface with a large LCD for easy monitoring. This circulator is designed for ease of use with side inlet and side exhaust for optimal airflow.
| Capacity | 19L |
| Temperature range | RT to 300°C |
| Temperature accuracy | ±0.5°C |
| Ambient temperature | 5 to 30°C |
| Ambient humidity | 45 to 80%RH |
| Circulating pump type | Vortex pump |
| Circulating pump pressure | 2bar |
| Cycle interface | DN-20 PN-10 flange interface |
| Cooling water interface | DN15 |
| Rated flow | 50L/min |
| Heating method | Electric heating |
| Cooling method | Water cooling |
| Temperature sensor | PT100 |
| Water cooler | Plate heat exchanger |
| PLC control system | Siemens S7-200smart |
| PLC protocol | Modbus RTU protocol RS485 interface (optional RS232 Ethernet) |
| PLC operation panel | 7-inch Siemens color touch screen (optional 10-inch) |
| PLC programming | 5 programs can be edited, each with up to 40 steps |
| PLC control mode | Material temperature and equipment outlet temperature can be switched automatically |
| PLC data output | Support U disk data output, can be outputted temperature data in TXT format |
| Display | LCD |
| Safety protection |
Self-diagnosis High-pressure switch Overload relay Over-temperature alarm |
| Heating power | 10kW |
| Cooling capacity (300°C) | 10kW |
| Cooling capacity (200°C) | 9kW |
| Cooling capacity (100°C) | 7kW |
| Cooling capacity (65°C) | 3kW |
| Power consumption | 11.5kW |
| Power supply | 220V/380V/480V, 50/60Hz |
| Weight | 105kg |
Heating Circulator NHTC-105 is used to maintain precise temperature control in laboratory experiments by circulating heated fluids. It is widely used across industries such as pharmaceuticals, chemicals, materials science, food and beverage, automotive, aerospace, semiconductors, and medical research.
Stainless steel hose with thermal insulation (3.6 meters/piece),1pc
