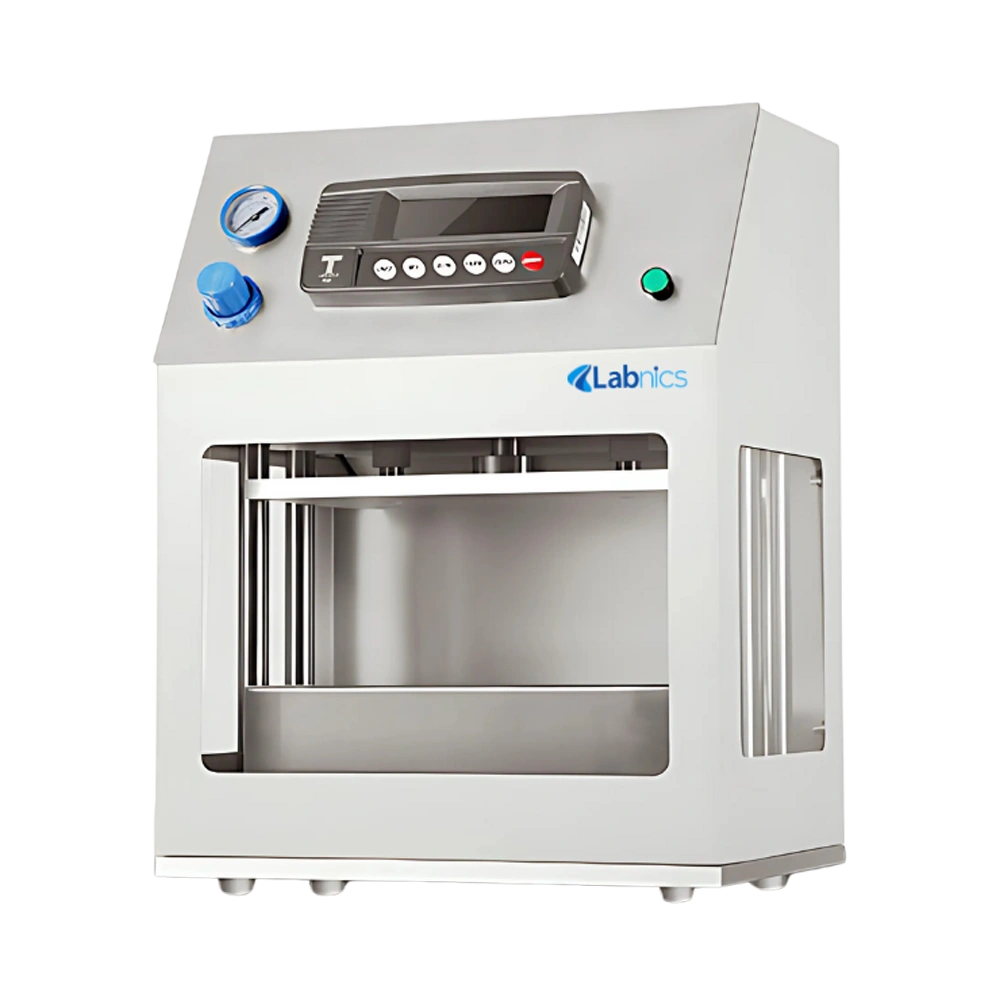

Compression Testing Machine NCTM-500

Name: Compression Testing Machine NCTM-500
Brand: Labnics
SKU: NCTM-500
Rating: 5 (984 reviews)

Compression Testing Machine NCTM-500 provides a testing range between 0 and 2000 N with a precise test accuracy of 0.1 N. It uses high-precision sensors to ensure accurate and reliable test results. This unit has a compact desktop design that allows convenient and efficient operation. It features an LCD screen for real-time display of test parameters. Our machine is equipped with a pneumatic system for consistent pressure control.

$4,875.00

Data Sheet

Specifications

Test Range	0 to 2000 N
Test Accuracy	0.1 N
Test Distance	0 to 100 mm
Air Pressure	0 to 0.8 MPa (Compressed Air)
Test Disc	1
Power Consumption	100 W
Power Supply	AC 220 V, 50 Hz
Internal Dimensions	280 × 165 mm
External Dimensions	360 × 260 × 510 mm
Weight	28.8 kg

Features

Dual test modes

Pressure hold function

Durable construction

Adjustable pressure control

Low maintenance

Applications

Compression Testing Machine NCTM-500 is mainly used for pressure resistance and burst strength testing of flexible packaging bags across food, pharmaceutical, and consumer goods industries.
