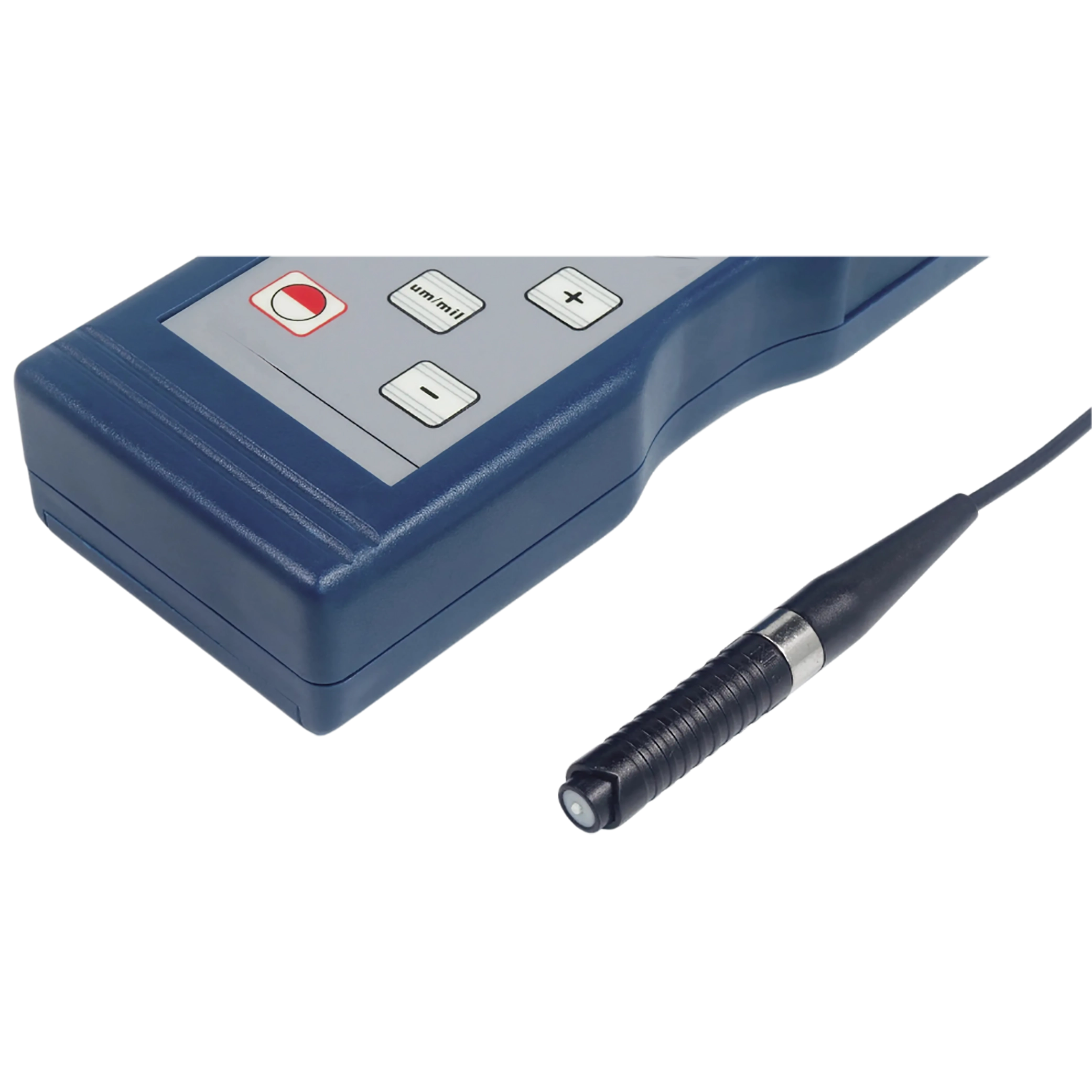

Coating Thickness Gauge NCTG-202 operates within a temperature range of 0 to 50°C and under humidity conditions below 80% RH. It provides the option to switch between single and continuous measuring modes. This device includes manual and automatic power-off options. It offers flexible probe options for various measurement needs. Our coating thickness gauge is designed with sturdy construction for long-term use.
$1,288.00
Specifications
| Measuring Range | 0 to 1000 μm |
| Resolution | 0.1 μm / 1 μm |
| Accuracy | ±1 to 3%n or ±2.5 μm |
| Operating Principle | NF Type Eddy Current |
| Minimum Radius Workpiece | 3 mm (convex)/ 50 mm (concave) |
| Minimum Measuring Area | 6 mm |
| Minimum Sample Thickness | 0.3 mm |
| Metric / Imperial | Convertible |
| Operating Temperature | 0 to 50°C |
| Humidity | <80% RH |
| Battery Indicator | Low Battery Indicator |
| Power Supply | 4 × 1.5V AA (UM-3) Battery |
| Dimensions | 161 × 69 × 32 mm |
| Weight | 210 g |
Features
Applications
Standard Accessories
NF type probe × 1 pc
NF Calibration base × 1 pc
Calibration foils × 1 set
Carrying base × 1 pc
Operation manual × 1 pc
Ask Expert
FAQ for Coating Thickness Gauge NCTG-202
1: How does the Coating Thickness Gauge NCTG-202 automatically recognize the substrate?
It automatically detects whether the base is ferrous or non-ferrous, using magnetic induction for ferrous materials to ensure accurate measurements.
2: How should I store the accessories to maintain their condition?
Store the accessories in the provided carrying case and keep them in a dry, dust-free environment to ensure longevity and reliable performance.
3: Can this Coating Thickness Gauge NCTG-202 be used continuously for batch testing?
Yes, the coating thickness gauge supports both single and continuous measurement modes, allowing for efficient inspection of multiple items in quick succession.
4: What should I do if the readings seem inconsistent or unstable?
Ensure the surface is clean and free of debris, verify the correct probe is used for the substrate, and check the calibration value. Recalibrate if necessary using a standard sample provided.
5: What kind of alerts does the Coating Thickness Gauge provide during operation?
It includes a buzzing reminder that signals key operational events such as successful measurements, making it user-friendly and reducing the chance of misreadings.
Labnics Coating Thickness Gauge offers a broad measurement range for versatile coating thickness measurements. They offer high resolution to deliver precise and accurate results. These units have data storage to efficiently track and access measurement records. They feature a clear backlit LCD for easy reading of measurements. Our thickness gauges allow convenient access to statistical data for comprehensive analysis.
