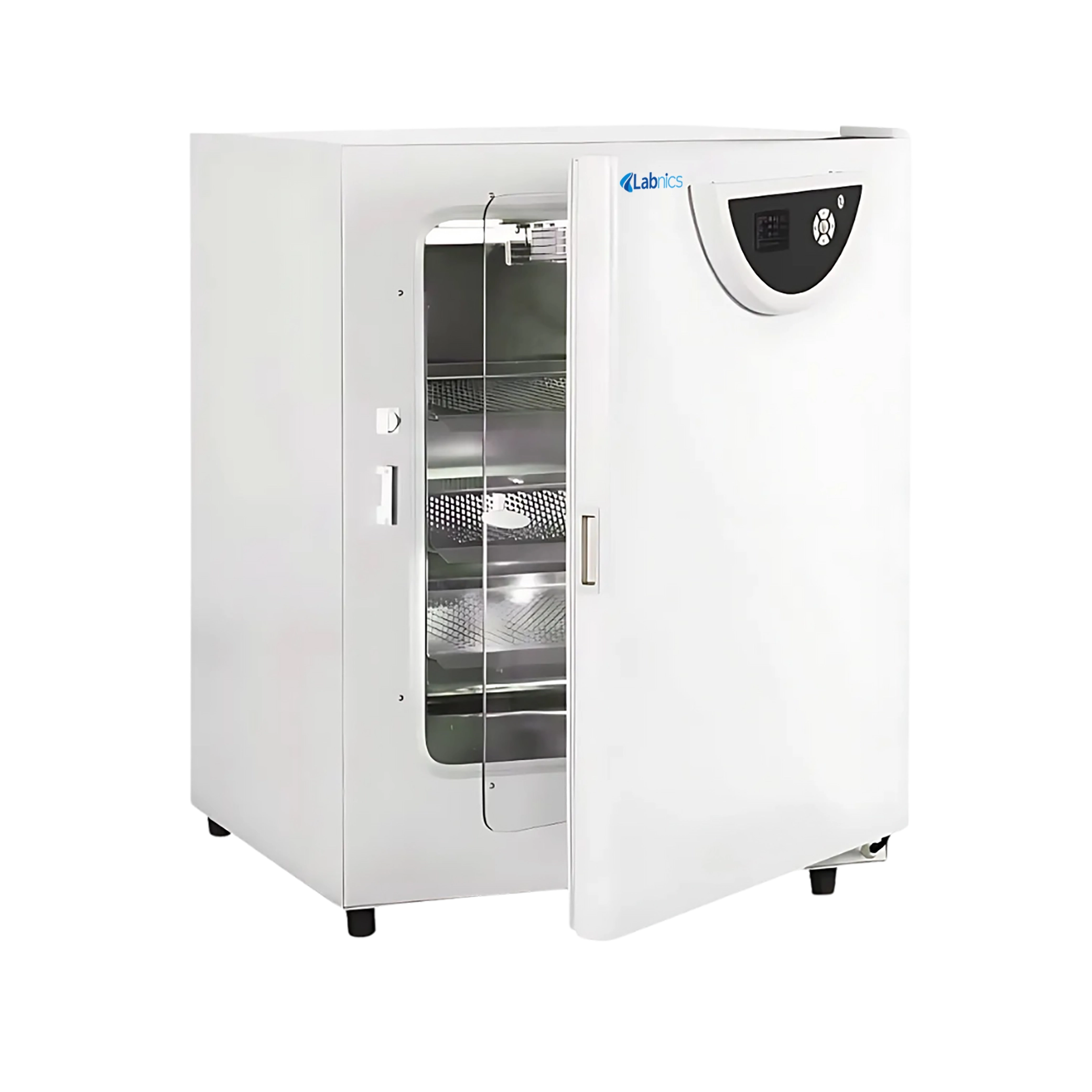

Air Jacketed CO2 Incubator NACI-103
Air Jacketed CO2 Incubator NACI-103 offers outstanding temperature stability. Available with heat decontamination function and optional UV disinfection. Equipped with colored touch screen controller for displaying temperature, humidity, CO2 concentration. In forced convection mode unit and offers heating function which prevents condensation on outer door.
| Model Name | NACI-103 |
| Chamber volume | 40L |
| Temperature range | Ambient+5℃ ~50℃ |
| Electrical requirement | 220V 50Hz |
| Power consumption | 350W |
| Ambient Temperature | +5~30℃ |
| Heating Method | Air-jacketed, PID Control |
| Temperature Resolution | 0.1 |
| Temperature Stability | ±0.1℃ |
| Temperature uniformity (37℃) | ±0.3℃ |
| CO2 Range | 0~ 20% V/V |
| CO2 Control Resolution | ±0.1% (IR sensor) |
| CO2 Recovery | (Door open 30s, recovery to 5%) ≤ 3min |
| Temperature Recovery | (Door open 30s, recovery to 37℃) ≤ 8min |
| Humidity Method | Natural vaporization ≥ 90% |
| Shelves | 2(pcs) |
| Interior dimension (W×H×D) mm | 400×286×350 |
| Exterior Dimension(W×H×D) mm | 590×440×576 |
| Sterilization method | 18hrs (90°C moist heat disinfection |
| Volume | 80 L |
| Type | Water-Jacketed |
| Shelves | 2 |
| Control Mode | Intelligent control |
| Volume | 160L |
| Type | Water-Jacketed |
| Shelves | 3 |
| Control Mode | Intelligent control |
| Volume | 240L |
| Type | Water-Jacketed |
| Shelves | 3 |
| Control Mode | Intelligent control |
| Chamber Volume | 160 L |
| Type | Water-Jacketed |
| Shelves | 3 |
| Control Mode | PID control |
| Chamber volume | 185 L/6. 5cu.ft |
| CO2 Control System | Microprocessor |
| CO2 Range | 0 to 20% |
| CO2 Inlet Pressure | 0.1MPa |
| Shaking Speed Range | 10 to 300 rpm |
| Shaking Control Accuracy | ± 1rpm |
| Orbit (diameter) | φ50mm (standard), φ26mm(optional) |
| Temperature Range | 4℃ to 60℃ (at 23℃ to 25 ℃) |
