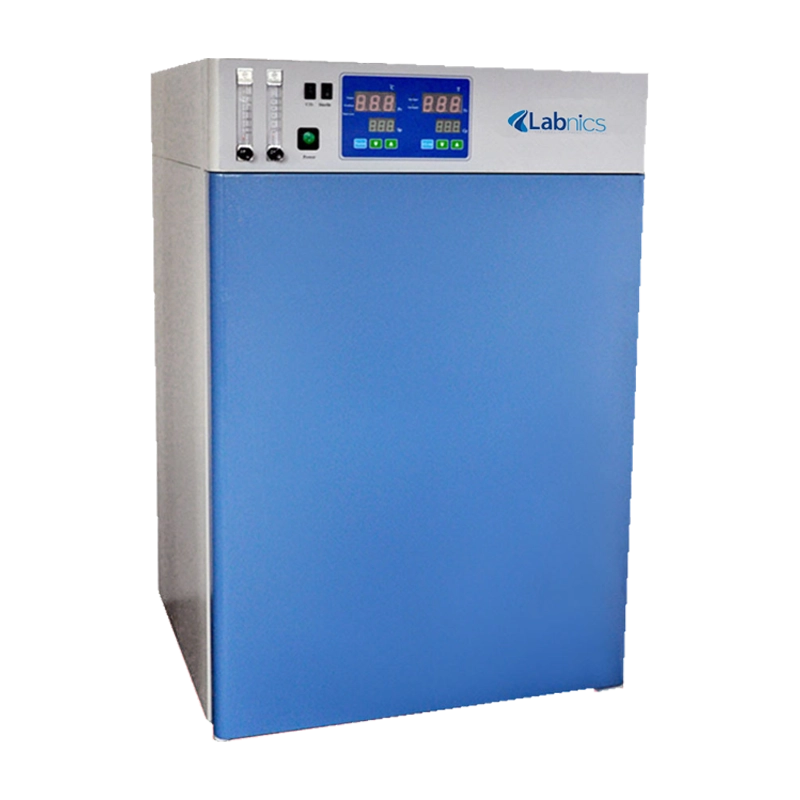

Air Jacketed CO2 Incubator NACI-101
Air Jacketed CO2 Incubator NACI-101 is a microprocessor-controlled chamber employed in conventional science labs that deal with cell or tissue culture. These incubators provide a stable environment intended to imitate a cell's regular habitat: pH of 7.2 to 7.5, temperature of 37°C, and a general humidity of around 95 percent. These chambers are frequently used for their rapid temperature recovery, decontamination methods efficiency, light-weight build and less required maintenance
Volume | 160L |
Type | Air-jacketed |
Shelves | 3 |
Control Mode | Intelligent control |
Temperature range | +5 °C ~ 60 ºC |
Temperature accuracy | ± 0.3ºC |
Temperature resolution | 0.1ºC |
CO2 Range | 0-20% |
Accuracy of CO2 | 0.001 |
Homogeneity of CO2 | At 5% CO2, ±0.1ºC |
CO2 Recovery | ≤ concentration value x 1.2min |
Humidification mode | Natural Evaporation |
Dimension | 500 × 500 × 650 mm |
Common fields of application include tissue building, in vitro preparation, neuroscience, cancer research and other mammalian cell research to offer sterile conditions.
Volume | 80 L |
Type | Water-Jacketed |
Shelves | 2 |
Control Mode | Intelligent control |
Volume | 160L |
Type | Water-Jacketed |
Shelves | 3 |
Control Mode | Intelligent control |
Volume | 240L |
Type | Water-Jacketed |
Shelves | 3 |
Control Mode | Intelligent control |
Chamber Volume | 160 L |
Type | Water-Jacketed |
Shelves | 3 |
Control Mode | PID control |
Chamber volume | 185 L/6. 5cu.ft |
CO2 Control System | Microprocessor |
CO2 Range | 0 to 20% |
CO2 Inlet Pressure | 0.1MPa |
Shaking Speed Range | 10 to 300 rpm |
Shaking Control Accuracy | ± 1rpm |
Orbit (diameter) | φ50mm (standard), φ26mm(optional) |
Temperature Range | 4℃ to 60℃ (at 23℃ to 25 ℃) |
