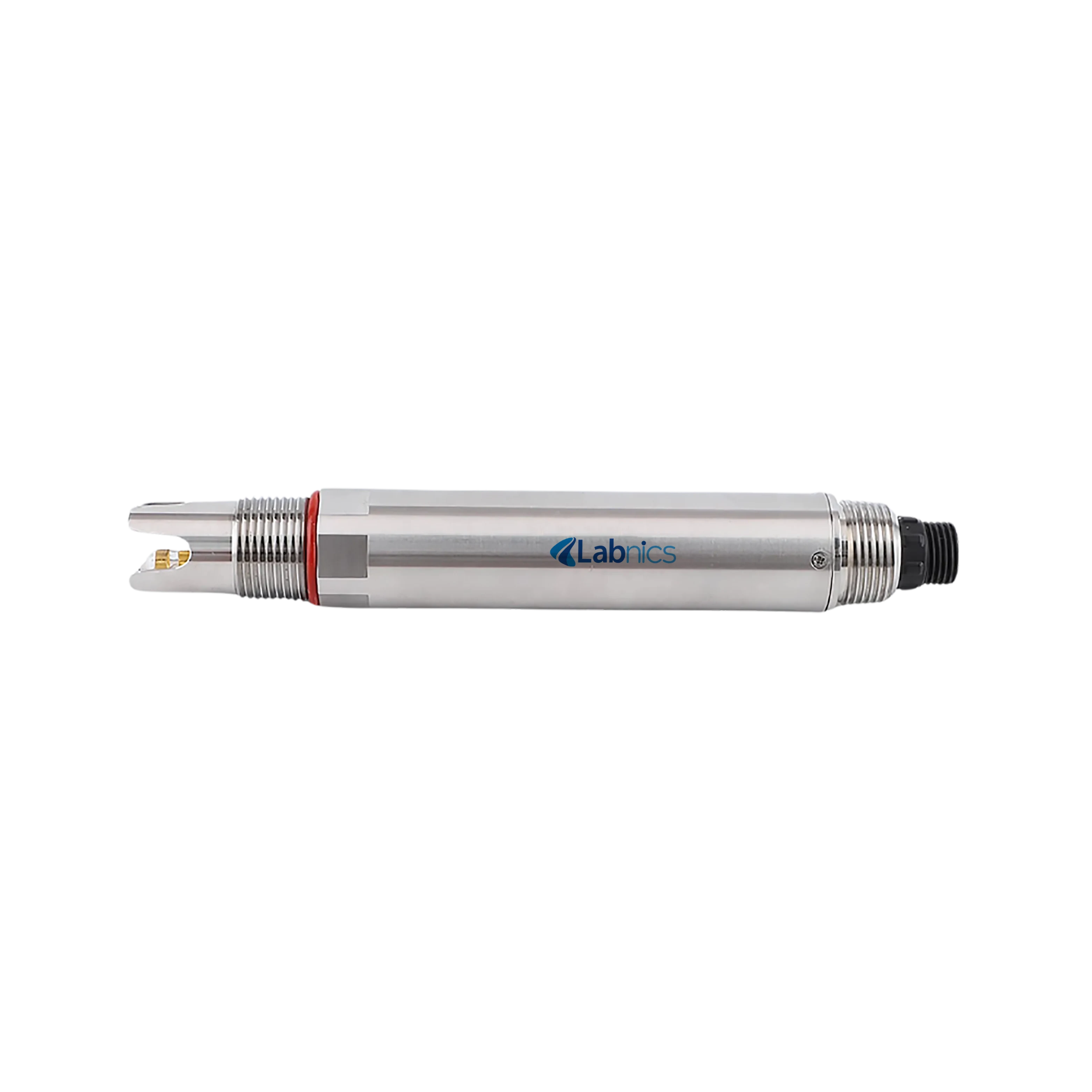

.png "Portable Chlorine Analyzer NCLA-100")

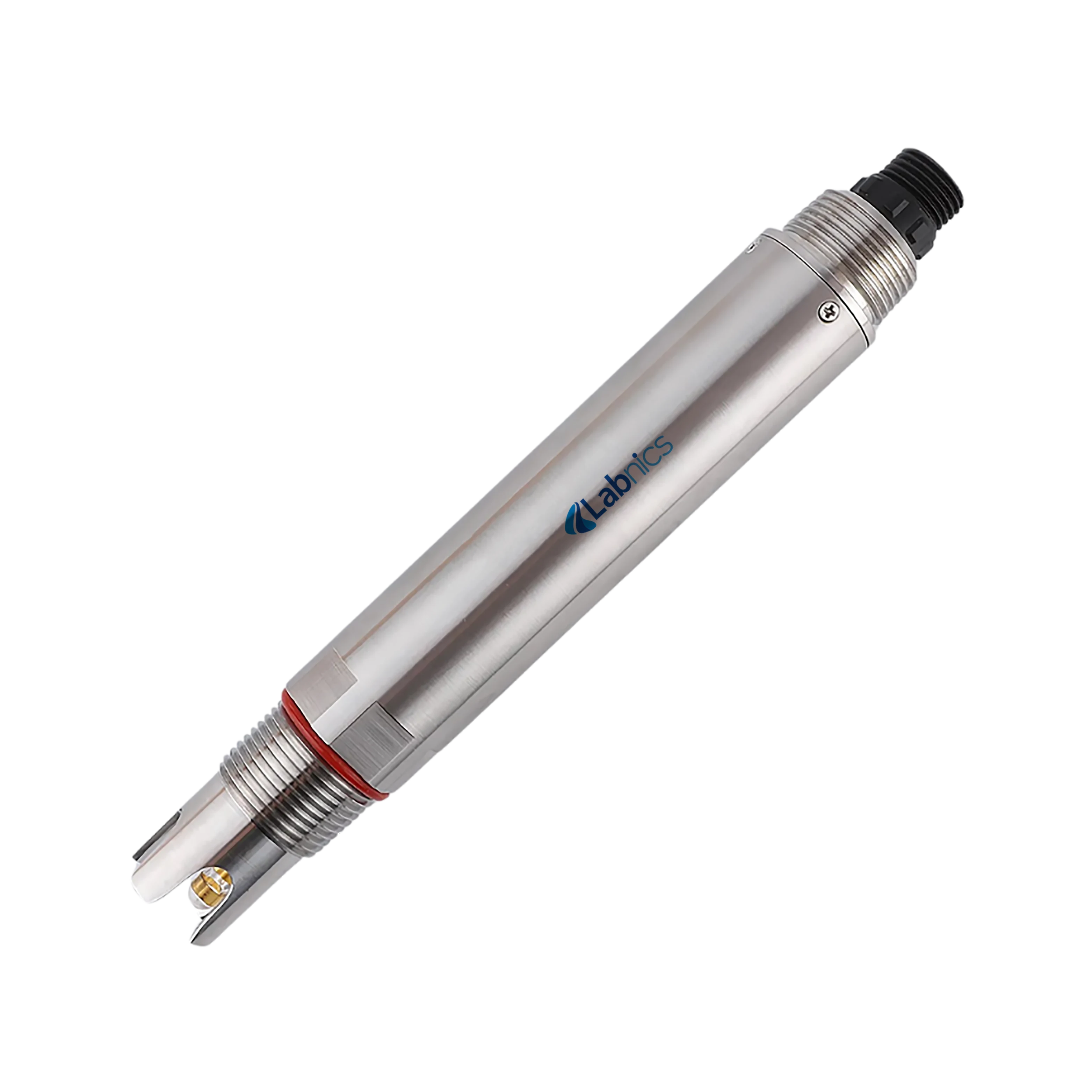

.png "Portable Chlorine Analyzer NCLA-100")

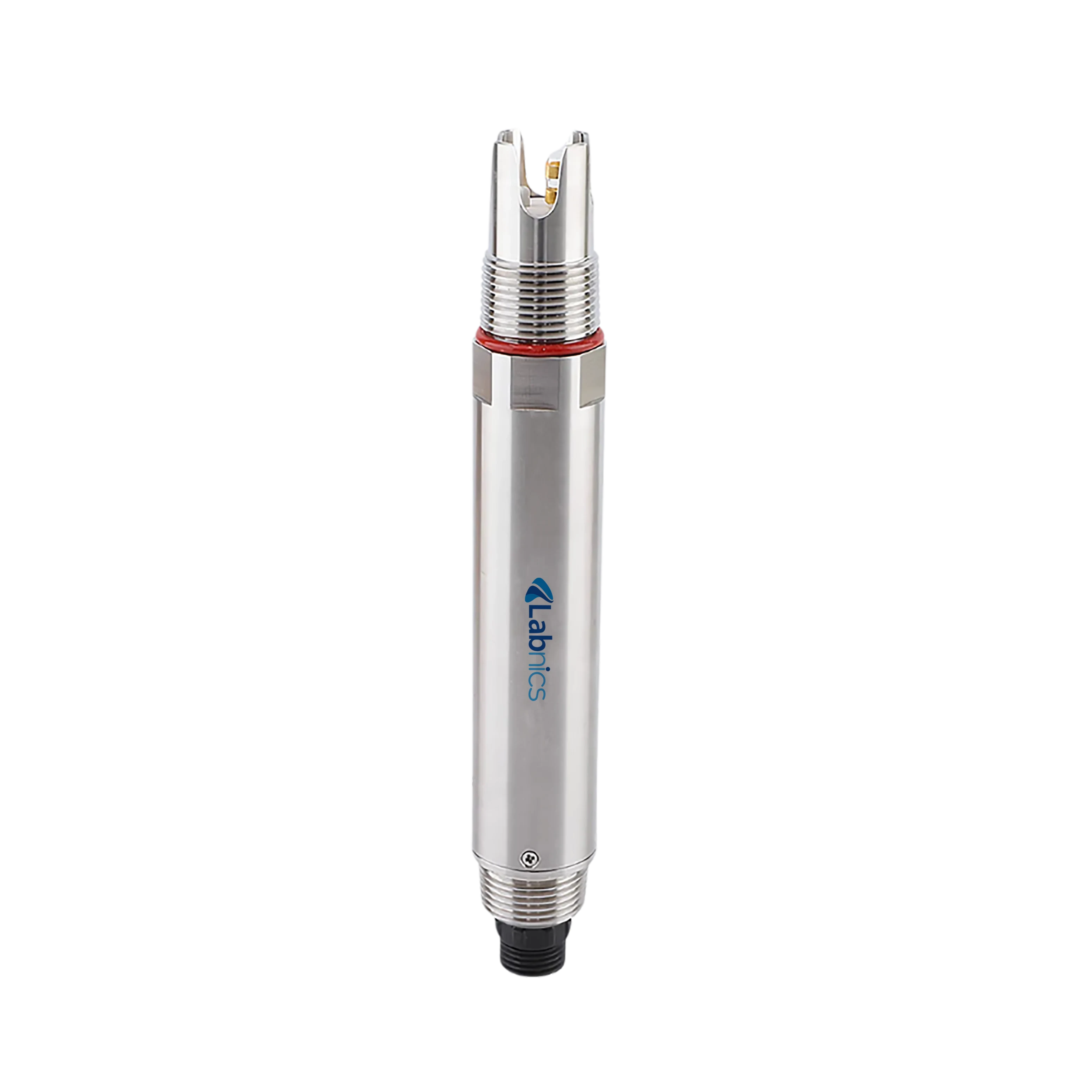

.png "Portable Chlorine Analyzer NCLA-100")
.png "Portable Chlorine Analyzer NCLA-100")
.png "Portable Chlorine Analyzer NCLA-100")
Portable Chlorine Analyzer NCLA-100 measures residual chlorine levels up to 20 mg/L, accommodating higher concentrations. It incorporates a Pt1000 sensor for automatic temperature compensation, ensuring accurate measurements. It uses a constant voltage method to accurately measure residual chlorine levels for reliable detection. This analyzer is designed for circulation pool installation, enabling continuous monitoring.
Specifications
| Measuring principle | Constant voltage method |
| Measuring range | 0 to 2.000mg/L; 0 to 20mg/l (HClO) |
| Resolution | 0.001mg/L; 0.01mg/ |
| Accuracy | ±5%; ±0.05mg/L，±0.3℃ |
| Working temperature | 0 to 60℃ |
| Working pressure | ＜0.2MPa |
| Calibration function | Two-point calibration |
| The pH range of the medium | 4 to 9 pH |
| Temperature compensation | Automaticity Temperature compensation (Pt1000) |
| Signal output | RS-485(Modbus/RTU), 4-20mA |
| Shell material | Stainless Steel |
| Mounting method | Circulation pool installation |
| Velocity of flow | 30 to 60L/h |
| Response Time | <30S |
| Protection level | IP68 |
| Power consumption | 0.2W@12V |
| Power supply | 12 to 24VDC±10% |
| Dimensions | φ30×185mm |
| Weight | 140g |
Features
Applications
Standard Accessories
Optional Accessories
Ask Expert
| Measurement range | 0 to 4000mg/L |
| Measuring error | ±10% |
| Cycle length | 5days |
| Measuring range | 0 to 4000 mg/L |
| Measuring error | ±10% |
| Resolution | 2 mg/L |
| Measurement range | 0-4000mg/L |
| Measuring error | ±10% |
| Cycle length | 5 days |
| High COD Range | 20 to 10000mg/L |
| Low COD Range | 2 to 150mg/L |
| Accuracy for COD < 50mg/L | ≤ ±5% |
| Digestion capacity | 9 vials |
| Vial volume | Maximum 10ml |
| Vial dimension | ф16 × 100 mm |
| Digestion capacity | 16 vials |
| Vial volume | Maximum 10ml |
| Vial dimension | ф16 × 150 mm / ф20mm × 150 mm |
| Model no | NCCA-100 |
| Measuring range | k= 1 0~2000μS/cm |
| Resolution | 0.01μS/cm , 0.1μS/cm , 1μS/cm , 0.01mS/cm 0.1mS/cm |
Labnics Portable Conductivity Meters provide accurate and reliable conductivity measurements for various applications. They feature automatic and manual temperature compensation for accurate readings. These units offer data storage and USB transfer for efficient record management. They come with a high-brightness backlit display for clear visibility in any environment. These meters have an auto power-off function to conserve battery life and extend usage time.
| Conductivity specifications:- Conductivity range | 0.000µS/cm ~ 1000mS/cm |
| Conductivity resolution | 0.001µS/cm |
| Conductivity accuracy | ± 1.0% (FS) |
.png "Portable Conductivity Meter NCM-200")
| Measurement Range | 0 to 400 mS/cm |
| Resolution | 0.001 μS/cm to 0.1 mS/cm |
| Indication Error | ±0.5% F.S |
.png "Portable Conductivity Meter NCM-201")
| Conductivity range | 0.000 μS/cm to 500 mS/cm |
| Conductivity resolution | 0.001 μS/cm minimum, various range selection |
| Conductivity accuracy | ±1.0% FS |
