Semi-automatic Chemistry Analyzer NSCA-102

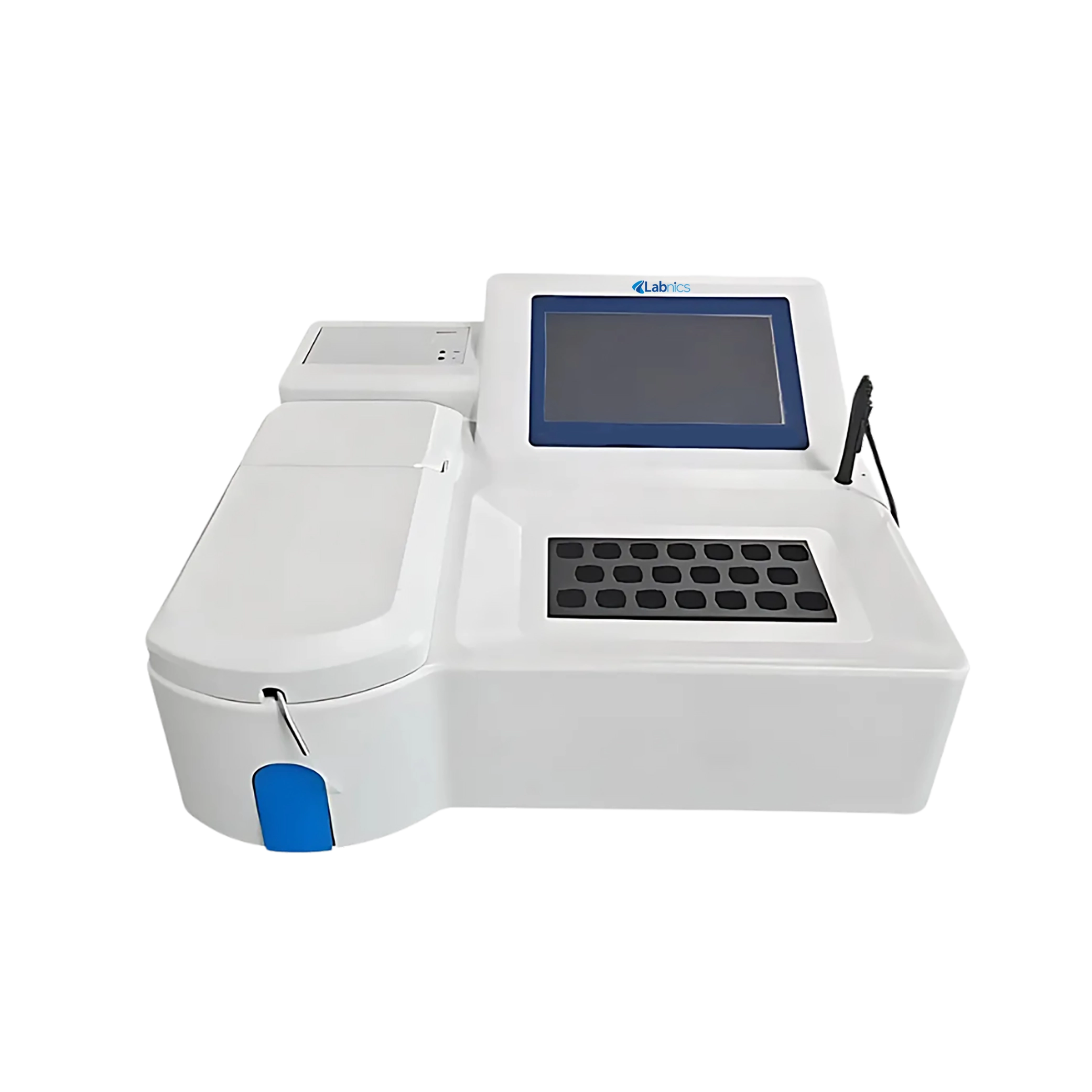

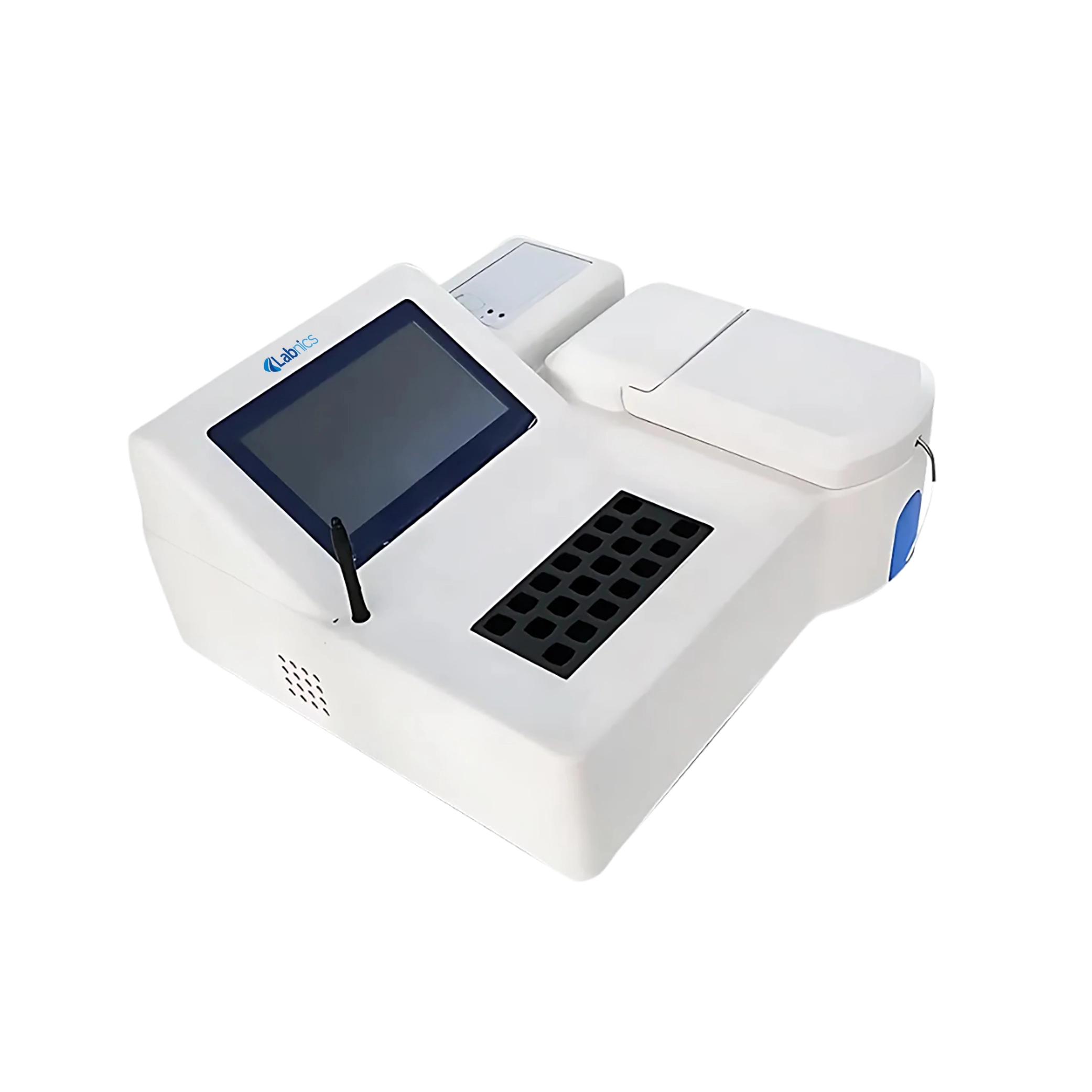

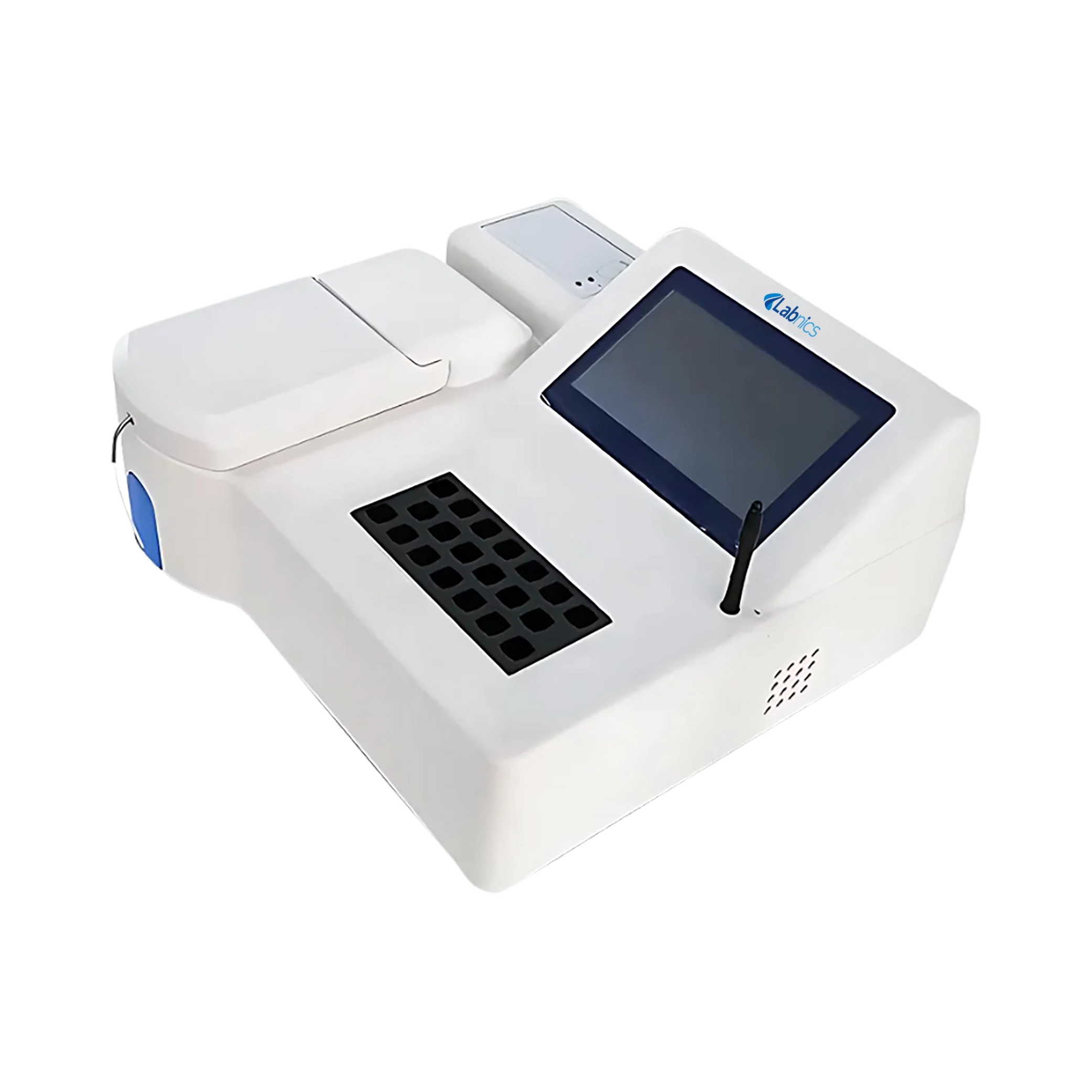

Semi-automatic Chemistry Analyzer NSCA-102 is a compact and tabletop unit with filter wavelengths of 304 nm, 405 nm, 450 nm, 510 nm, 546 nm, 578 nm, 630 nm and 2 open filter positions. It has a touch-screen monitor, a built-in thermal printer, and halogen illumination. It features superior QC functions, 20 incubating positions offering RT, 25°C, 30°C, and 37°C of incubation temperature, as well as a huge memory for data storage. With one-button operation and assays for end point, kinetic, and fixed time, it provides real-time graph display and printing, as well as RS232 and USB interface support for easy data processing
| Measuring System | Measuring Range: 0 to 3.500 OD Method: End Point, Fixed Time, Rate etc. Photometric linearity: ±2% (0 to 2.500 OD) Photometric accuracy: ±2% (0 to 2.500 OD) Drift <0.005 OD |
| Photometric System | Light source: 6 V, 10 W long life halogen lamp Filters: 304 nm, 405 nm, 450 nm, 510 nm, 546 nm, 578 nm, 630 nm and 2 open filter positions Wavelength Accuracy: ±2 nm |
| Thermostatic Control | Temperature: RT, 25˚C, 30˚C, 37˚C Precision: ±0.1˚C |
| Reading Cuvette | Quartz Cuvette; Both Cell and Direct reading cuvette |
| Incubating positions | 20 incubation positions |
| Quality Control | QC function with storage, display, and printing |
| Display | Touch Screen |
| Storage | 144 test programs, 5600 test results |

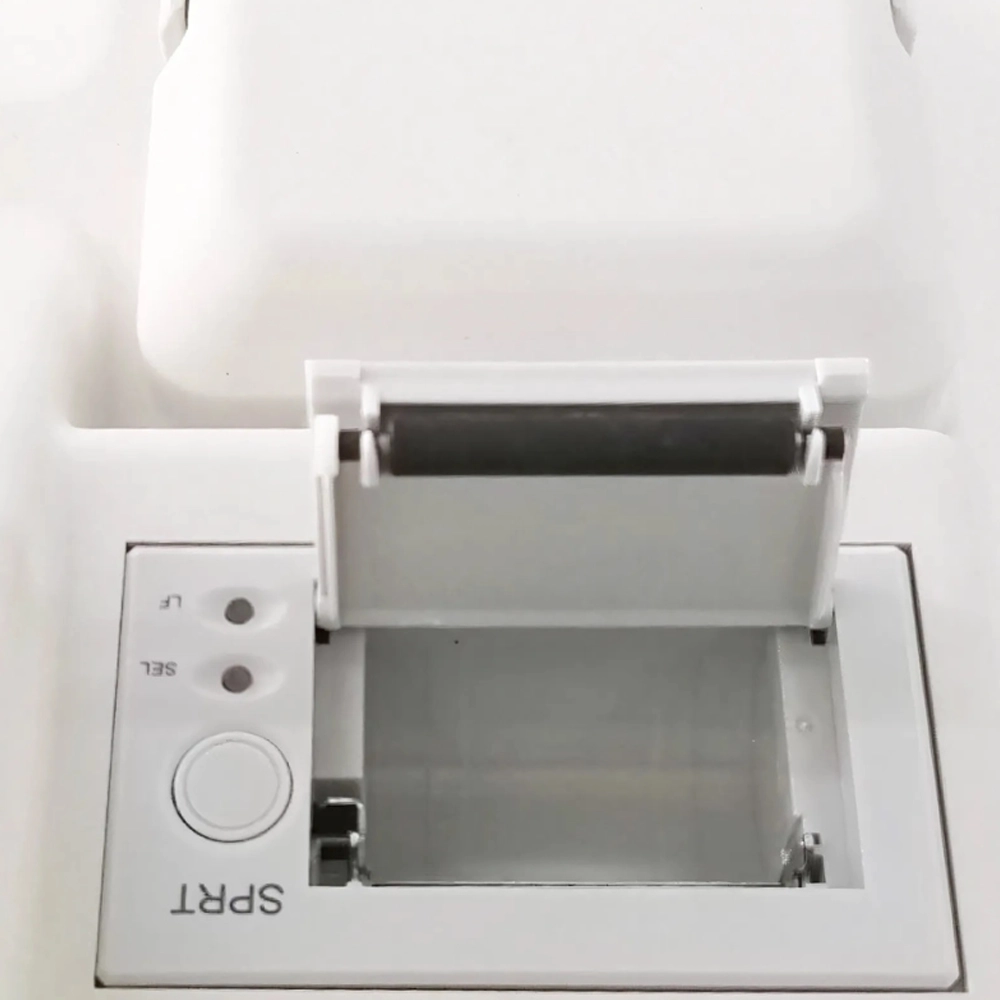

| Printer | Built-in thermal printer |

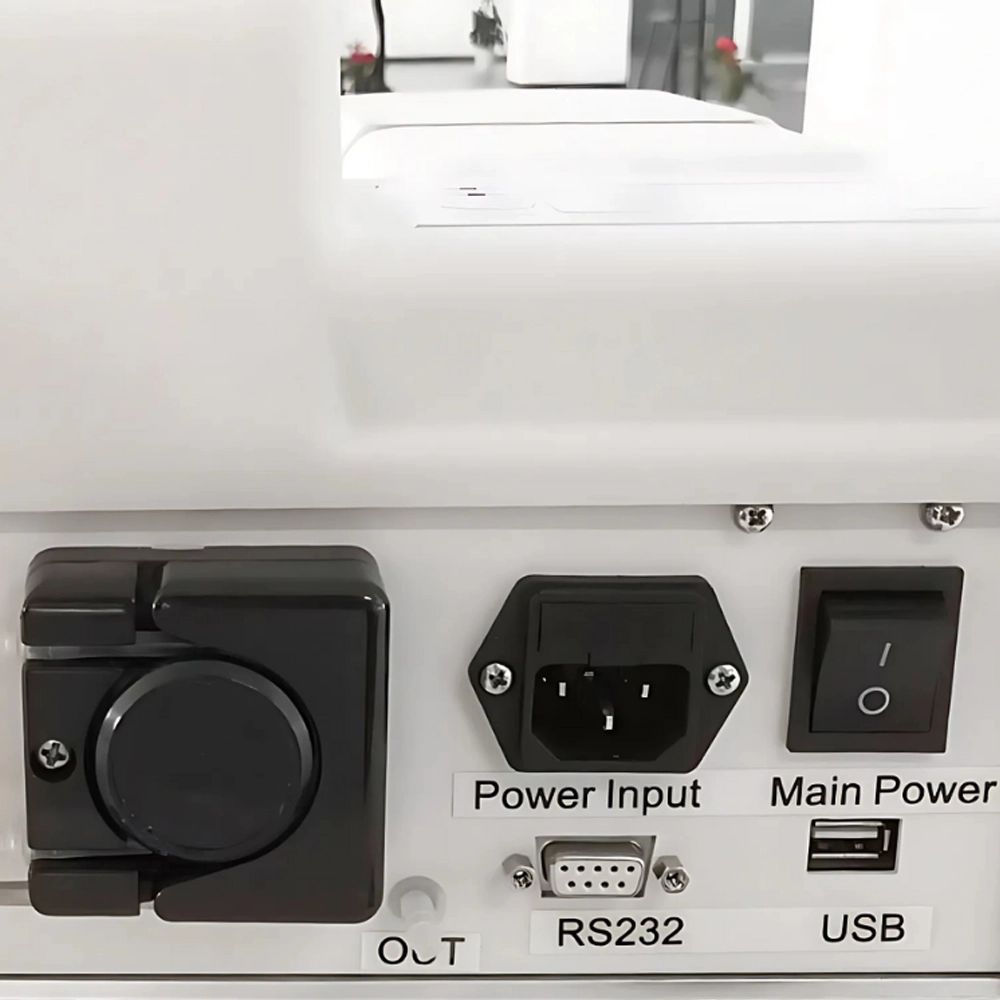

| Interface | RS-232, USB |
| Power Supply | AC 110/220 V ± 10%, 50/60 Hz |
| Dimension (W×D×H) | 400×380×200 mm |
| Packaging Dimension (W×D×H) | 500×530×350 mm |
| Gross Weight | 12 kg |
It is widely Used for the analysis of various biological components in fields such as pathology, medical microbiology, and research purposes
| Assay | 80 assay |
| Throughput 1 Reagent | 400 tests / h |
| Throughput 2 Reagent | 400 tests / h |
| Throughput with ISE | + 120 tests/h |
| Assay | 40 assay |
| Throughput 1 Reagent | 300 tests / h (max) |
| Throughput 2 Reagent | 240 tests / h |
| Throughput with ISE | + 120 tests/h |
| Assay | 40 assay |
| Throughput 1 Reagent | 240 tests / h (max) |
| Throughput 2 Reagent | 150 tests / h |
| Throughput with ISE | + 120 tests/h |
| Assay | 36 assay |
| Throughput 1 Reagent | 200 tests / h (max) |
| Throughput 2 Reagent | 150 tests / h (max) |
| Throughput with ISE | + 100 tests/h |
