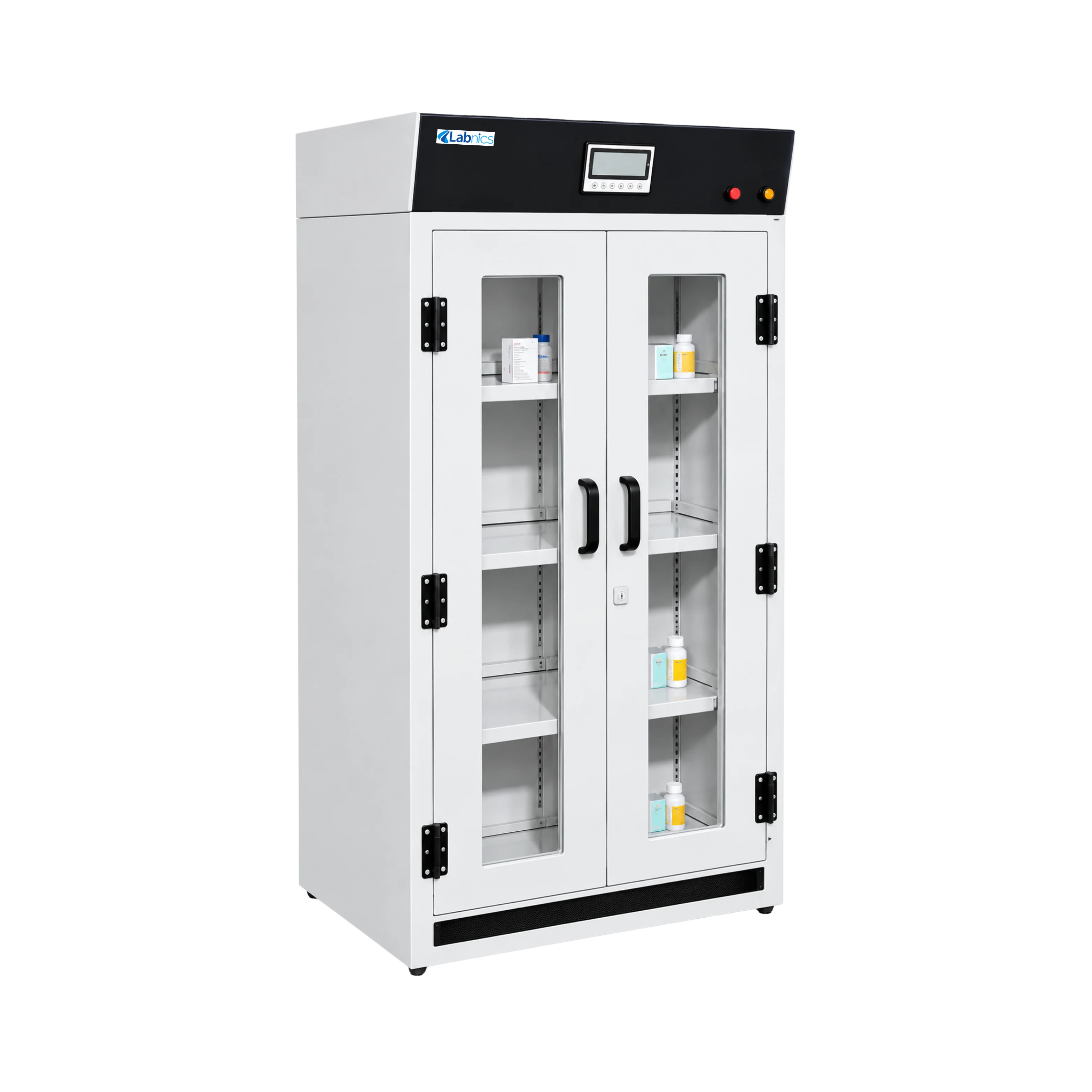

Chemical Storage Cabinet NCSC-100
Chemical Safety Cabinet NCSC-100 is designed to accommodate up to 120 bottles, each with a capacity of 500ml, providing ample storage. It includes a high-efficiency filtration system with HEPA filters, providing 99.995% efficiency for particles over 0.3μm. Our unit is made of durable 8mm polypropylene with welded joints for strength and corrosion resistance. It features a 5-inch LCD touchscreen with a high-definition resolution for easy and clear monitoring.
| Storage capacity | 120 bottles (500ml) |
| Shelves | 3 pieces |
| Cabinet volume | 0.5 m³ |
| Load bearing of laminate | ˃ 70 kg / m² |
| Air handling capacity | 220m³ / h |
| Display | 5-inch LCD touchscreen, 1024 × 600 high-definition resolution |
| Noise | 40dBA |
| Current | 2A |
| Power Consumption | 42W |
| Power supply | 220V/50Hz |
| Molecular filter dimensions | 370 × 395 × 50 mm |
| Primary filter dimensions | 370 × 396 × 21 mm |
| Internal dimensions | 760 × 420 × 1540 mm |
| External dimensions | 800 × 460 × 1830 mm |
| Weight | 98kg |
Chemical Storage Cabinet NCSC-100 is used for safely storing chemicals in laboratories and industrial settings. It ensures secure containment and organization of hazardous substances, preventing contamination and accidents.
| Accessory | Quantity |
| Molecular filter | 2 sets |
| Primary filter | 1 pc |
| Fan | 1 pc |
| Shelves | 3 pcs |
| Display (Five-inch LCD) | 1 pc |
| Touchscreen | 1pc |
| Control system | 1 set |
| Filter saturation alarm system | 1 pc |
| Temperature and humidity alarm system | 1 set |
Organic filter
| Door type | Double door/self-close |
| Storage Volume | 45/170 (Gal/L) |
| Fire resistance | 90 min |
| Color | Yellow |
| Cabinet type | Corrosive cabinet |
| Volume | 170 L |
| Shelf Loading Capacity | 100 Kg |
| Door type | Self-latching door |
