Product Data Sheet · Laboratory Equipment

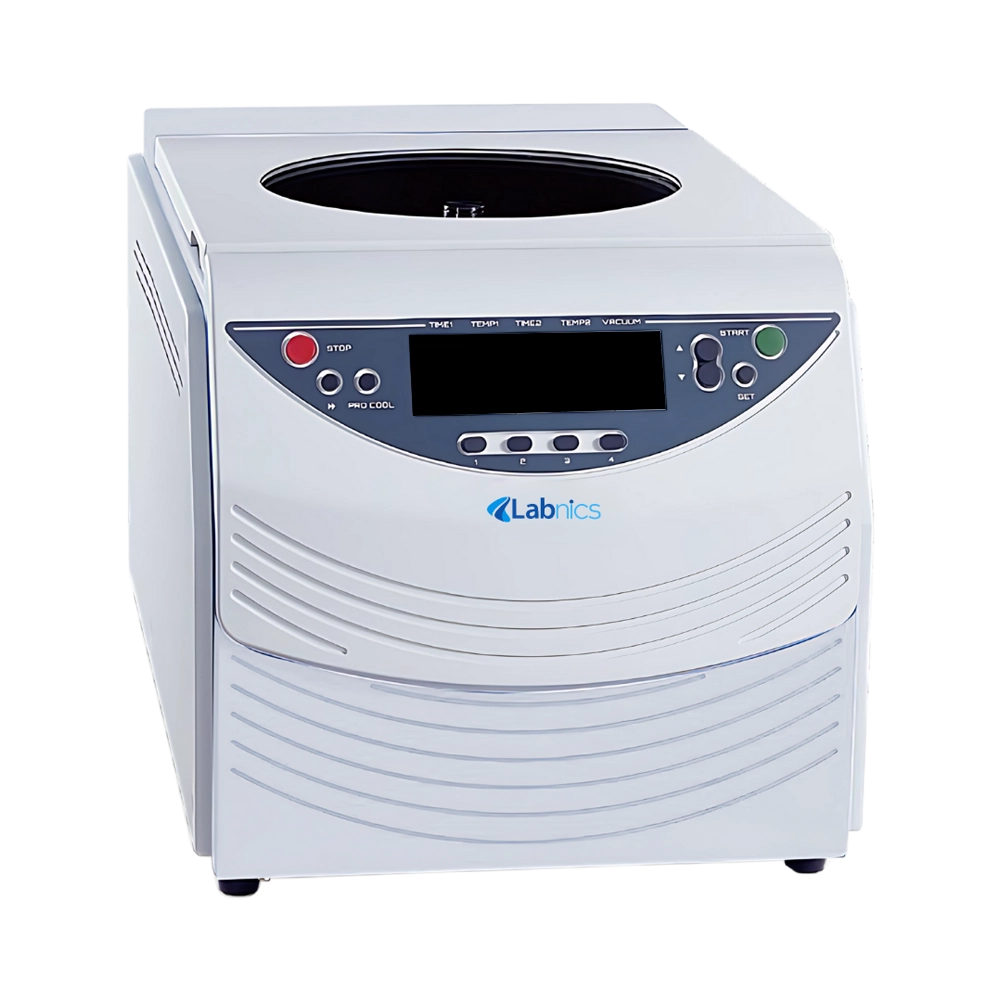

Vacuum Concentrator Centrifuge NVCC-102 delivers a maximum centrifugal force of 530×g for effective sample processing. It operates within a speed range of 800 to 2000 rpm, allowing versatile applications. This unit uses an automated vacuum control system with a range of 0.1 to 100 mbar for precise vacuum management. It features a 2-stage temperature control to ensure sample safety. Our centrifuge runs at a low noise level, maintaining a quieter working environment.
| Speed range | 800 to 2000 rpm |
|---|---|
| Maximum centrifugal force | 530×g |
| Timer range | 1 to 9999 min |
| Vacuum control range | 0.1 to 100 mbar |
| Centrifugal imaging function | Yes |
| Temperature control range | +5°C to 100°C |
| Temperature control precision | RT±1°C |
| Ultimate vacuum | ≤0.2 mbar |
| Noise | ≤55 dB |
| Power consumption | 1100W |
| Dimension | 481×370×294mm |
| Net weight | 28.5 kg |
Accessory | Description | Quantity |
Cold trap (-50°C) | Temperature: -50°C Cold trap capacity: 2000 ml Coil method: External coil | 1 |
Ultralow cold trap (-80°C) | Temperature: -80°C Cold trap capacity: 4500 ml Coil method: Internal coil | 1 |
Diaphragm pump | MPS: 2.0 m3/h (33L/min) Ultimate vacuum: 7 mbar | 1 |
Oil pump | MPS: 4.0 m3/h (66L/min) Ultimate vacuum: 0.01 mbar | 1 |
Imported diaphragm pump 1 | MPS: 2.6 m3/h (43L/min) Ultimate vacuum: 5 mbar | 1 |
Imported diaphragm pump 2 | MPS: 3.3 m3/h (55L/min) Ultimate vacuum: 2 mbar | 1 |
Corrosion-resistant diaphragm pump | MPS: 2.1 m3/h (35L/min) Ultimate vacuum: 8 mbar | 1 |
Centrifugal imaging device |
| 1 |
Capacity | Speed Range | Maximum RCM |
90×1.5ml | 800 to 2000 rpm | 530×g |
24×5ml + 66×1.5ml | 800 to 2000 rpm | 530×g |
54×1.5ml + 48×0.6ml | 800 to 2000 rpm | 530×g |
72×5ml (Round bottom) | 800 to 2000 rpm | 530×g |
24×8×0.2ml | 800 to 2000 rpm | 530×g |
40×10ml | 800 to 2000 rpm | 530×g |
8×50ml (Conical bottom) | 800 to 2000 rpm | 530×g |
18×15ml (Conical bottom) | 800 to 2000 rpm | 530×g |
64×2ml (Loading vials) | 800 to 2000 rpm | 530×g |
16×20ml (Penicillin bottle) | 800 to 2000 rpm | 530×g |
10×30/40ml (Penicillin bottle) | 800 to 2000 rpm | 530×g |
6×100ml (Phial with chicken core) | 800 to 2000 rpm | 530×g |
2×96ml (ELISA plate) | 800 to 2000 rpm | 530×g |
