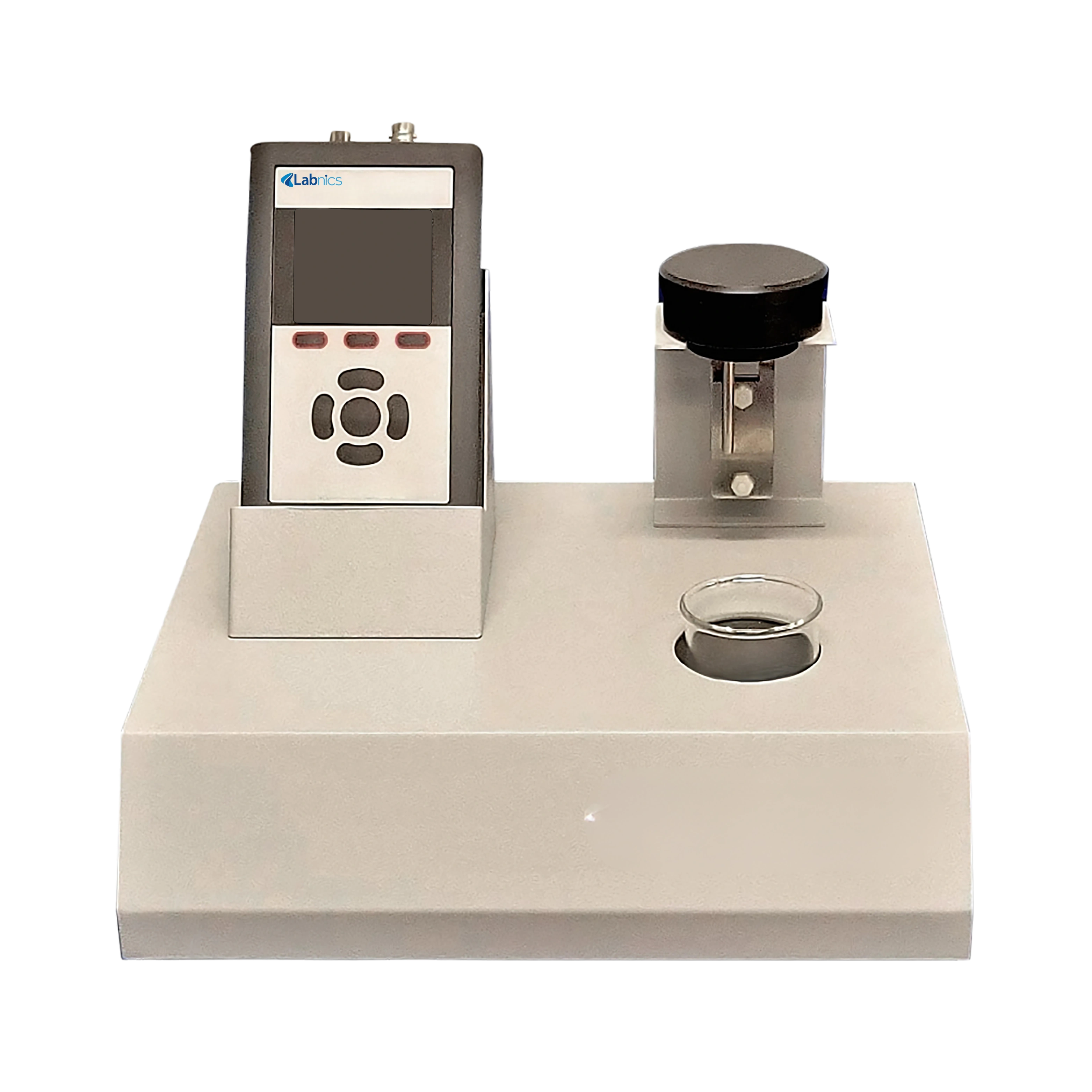

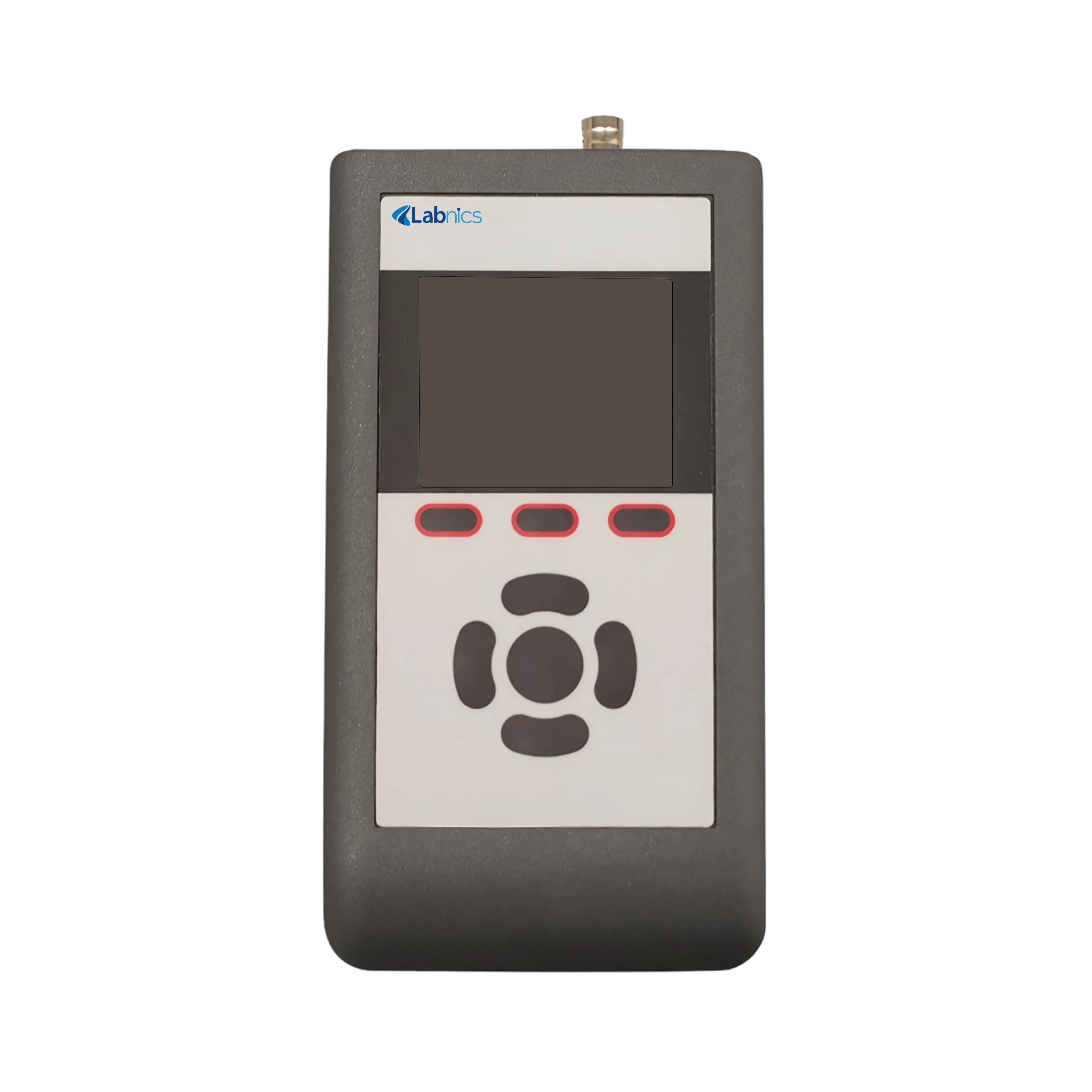

Salts in Crude Analyzer NSICA-100

Name: Salts in Crude Analyzer NSICA-100
Brand: Fison
SKU: NSICA-100
Rating: 4.9 (680 reviews)

Salts in Crude Analyzer NSICA-100 measures salt concentration in crude oil samples from 0 to 150 PTB (lb/1000 bbl), ensuring accurate analysis. It includes a self-calibration function for precise and reliable results. This unit stores up to 12 test results for convenient record keeping. It operates with a LiPo battery that offers up to 4 hours of continuous use. Our analyzer includes an easy-to-read LCD for quick and clear parameter monitoring.

$16,238.00

Catalog

Specifications

Salt concentration range	0 to 150 PTB (lb/1000 bbl)
Measured parameters	Salt content, conductivity, temperature (crude oil); pH (aqueous samples)
Test standard	ASTM D3230
Display	2.6” TFT-LCD, shows up to 4 parameters at once
Data storage	Up to 12 test results
Power supply	CE Approved Battery, 100 to 240V
Dimensions	230 × 1080 × 650 mm
Product weight	1 kg
Shipping weight	2.75 kg

Features

High-accuracy thermistor array
Low-voltage conductivity detection
Automatic salt calculation
Multi-parameter display
User-friendly operation
Lightweight and portable

Applications

Salts in Crude Analyzer NSICA-100 is used to accurately determine the salt content, conductivity, and pH of crude oil and aqueous samples, ensuring quality control and preventing processing issues. It is applied in oil refineries, laboratories, and field testing environments for reliable analysis.

Standard Accessories

100ml borosilicate beaker

Cable, 5-Pin, Male, 1 Meter

Salt in crude case

Electrode cap assembly

Dual power adapter and USB cable assembly 115/230V

Integrated software

Calibration jacks

Optional Accessories

Benchtop stand

ASTM D3230 mixed salts solution, 100ml

ASTM D3230 mixed salts solution, 500ml
