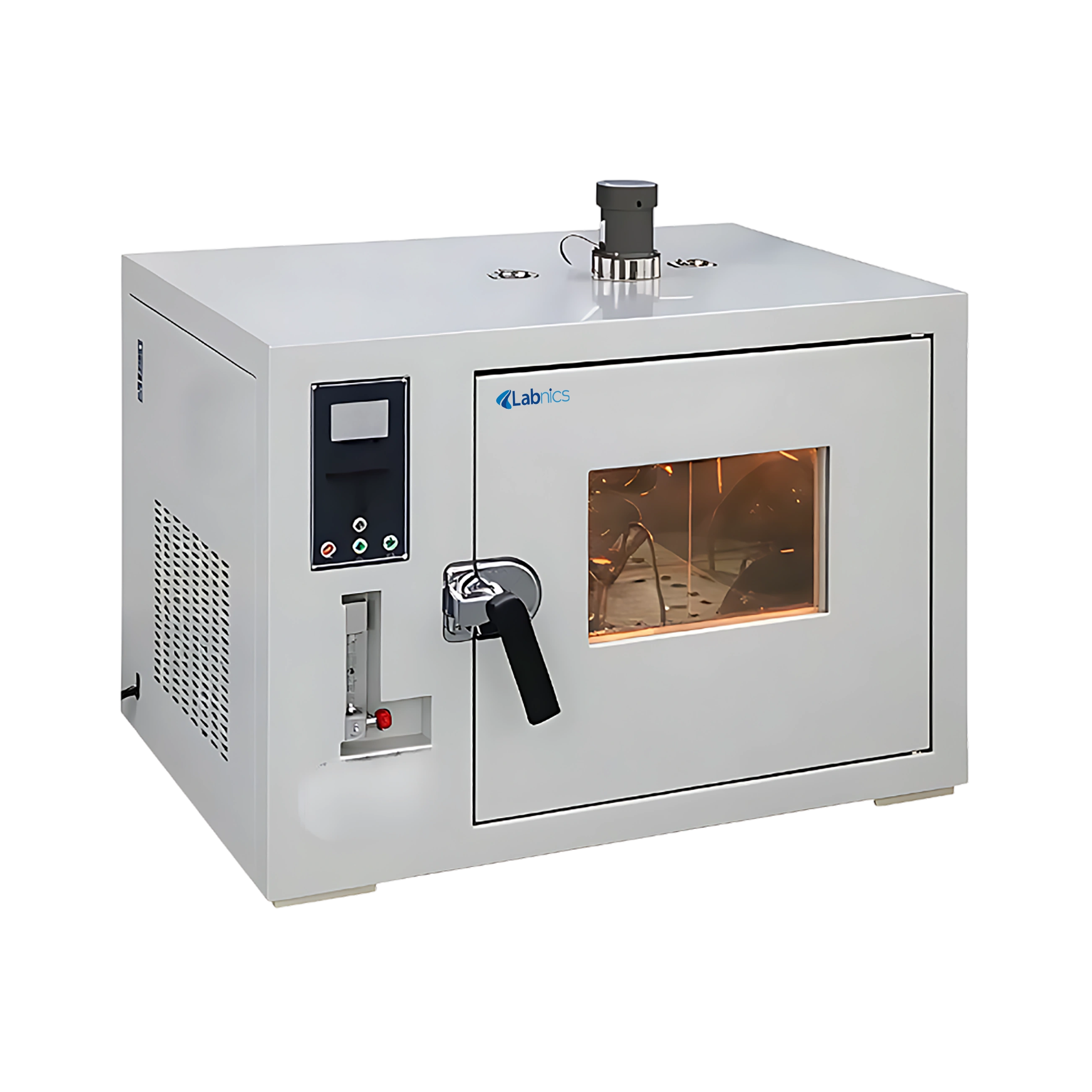

Thin Film Oven NTFO-100 operates at a working temperature of 163 °C with ±0.5 °C precision for reliable asphalt binder testing. It features a built-in air compressor for consistent airflow regulation. This has an alert timer at 85 minutes improves testing accuracy and process control. Our robust construction and compact footprint make it ideal for laboratory environments. It has an energy-efficient design that reduces operational costs while maintaining high performance.
| Working Temperature | 163 °C |
| Temperature Control Precision | ± 0.5 °C |
| Rotating Speed of Turn Plate | 15 ± 0.2 r/min |
| Air Flow Rate | 4000 ± 200 mL/min |
| Timing Unit | Alert at 85 min |
| Ambient Temperature | 15 – 35 °C |
| Relative Humidity | ≤ 85% |
| Power Consumption | ≤ 2.6 kW |
| Power Supply | AC (220 ± 10%) V, 50 Hz |
| Dimensions (L × W × H) | 930 × 800 × 820 mm |
| Net Weight | 152 kg |
Thin Film Oven NTFO-100 is used for determining the effects of heat and air on asphalt materials by simulating short-term aging. It is widely used in road construction laboratories, material testing centers, and quality control departments.
