Product Data Sheet · Laboratory Equipment

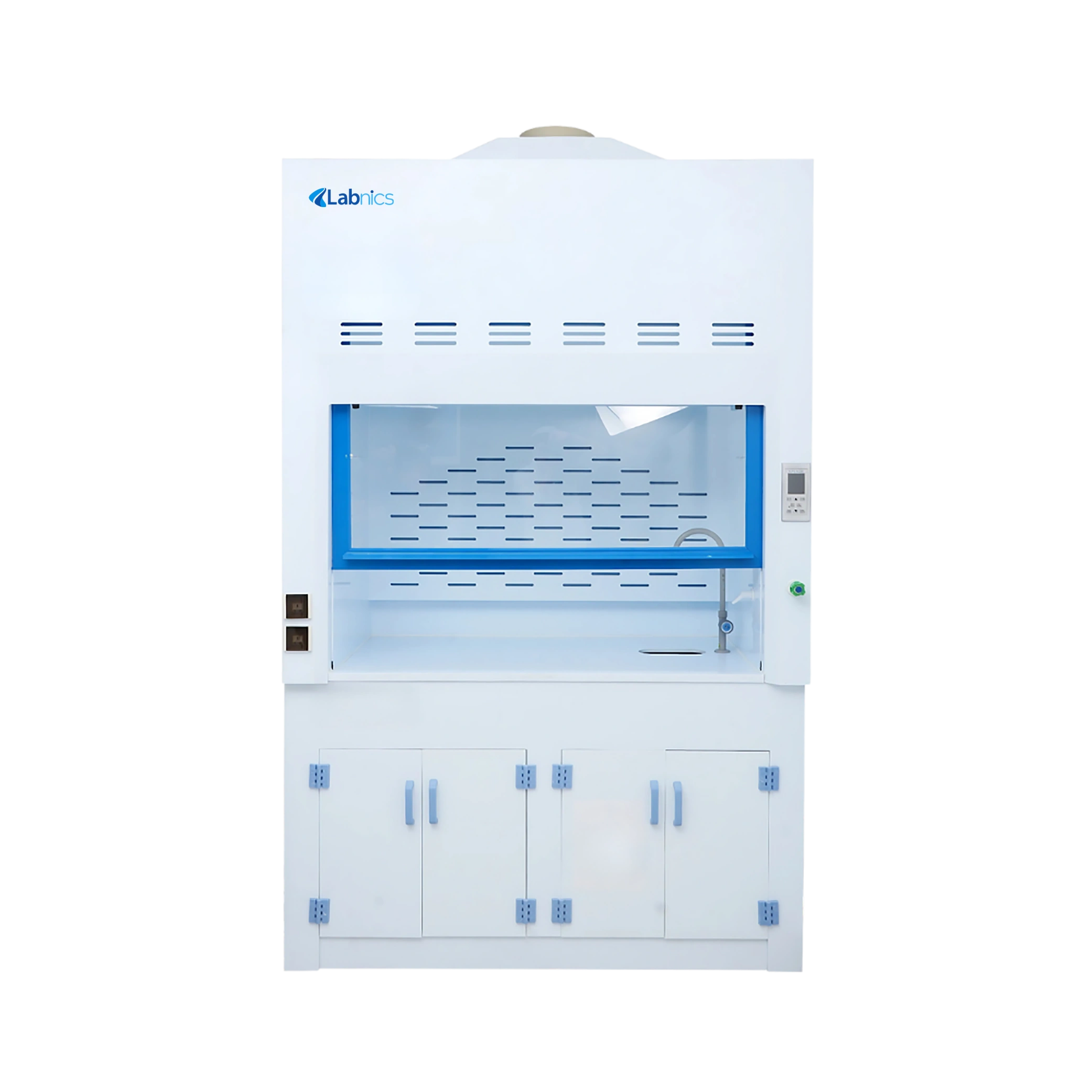

Polypropylene Fume Hood NPFH-100 is constructed with an 8 to 12 mm white PP body and a 5 mm tempered glass sash for chemical resistance and safety. It features a digital control panel for fan, light, sockets, sterilizer, and damper operations. This is equipped with a 30W LED light for bright illumination and smooth sash movement with a weight-balanced mechanism. It is integrated PP liner and baffle enhance durability and resistance to corrosive chemicals. Our junction box supports multiple for flexible use in laboratories.
| Hood Body and Base | 8–12 mm white PP, one-piece welded with matching electrodes |
|---|---|
| Work Surface | 12 mm white PP |
| Controller | Digital switch for fan, light, socket, sterilizer, damper |
| Glass Sash | 5 mm tempered glass, PP handle, weight-balanced mechanism |
| Lighting | 30W LED lamp, ≥300 LUX |
| Liner & Baffle | 8 mm white PP sheets |
| Junction Box | With circuit board & AC contactor, supports 110–230V |
| Exhaust air volume | 700-1300m³/h |
| Dimension (W × D × H) | 1200 × 850 × 2350 mm |
Optional Worksurface:
Phenolic Resin, Epoxy Resin, Stainless Steel, Ceramic, Trespa, Granite, Marble
Water Tap x1 pc
PP Cupsink x1 pc
Sockets x4 pcs
250/315 mmφ Hood x1 pc
