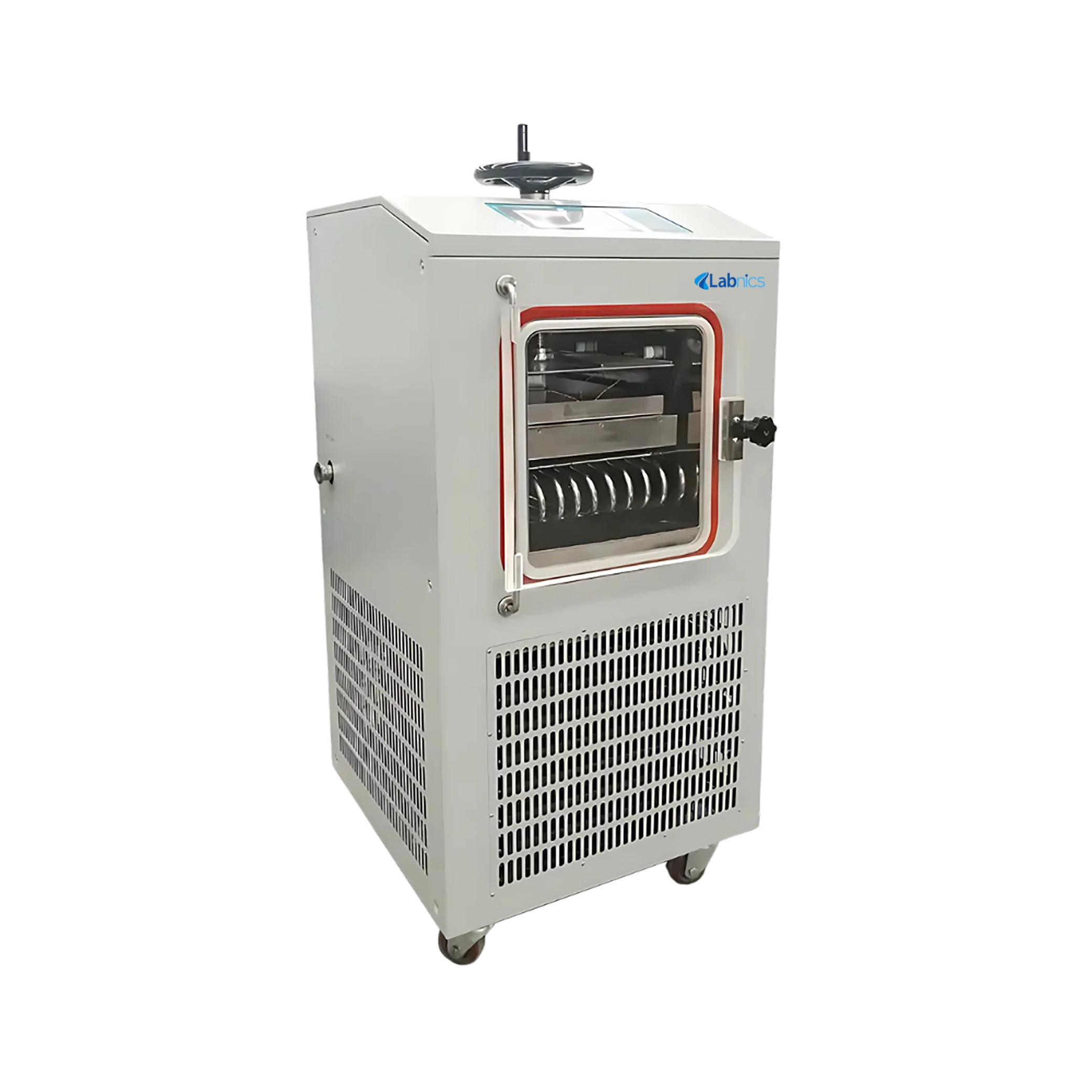

Pilot Freeze Dryer NPFD-201 provides a 0.1 m² drying area and operates at a vacuum level of 10 Pa or lower. It offers a high-efficiency compressor for optimal performance. This pilot freeze dryer includes a sensor calibration function to ensure long-term measurement accuracy. It features a transparent acrylic door that allows clear observation. This unit has a colour LCD screen for real-time monitoring with enhanced visibility.
| Drying Area | 0.1 m² |
| Shelf Temperature Range | -50°C to +80°C |
| Shelf | 1 layer |
| Shelf Spacing | 70 mm |
| Bulk Liquid Capacity | 1 L |
| Vacuum Degree | Less than or equal to 10 Pa |
| Condenser Capacity | 5 kg/24 hours |
| Condenser Temperature | Up to -55°C |
| Vacuum Pump Flow Rate | 4 L/S |
| Cooling | Air cooling, draughty, ambient temperature ≤ 25°C |
| Vial Capacity | Φ12mm: 777 pcs Φ16mm: 434 pcs Φ22mm: 220 pcs |
| Style of Press | Manual |
| Power consumption | 1700 W |
| Power supply | 220V/50 Hz |
| Dimension | 605 × 610 × 1330 mm |
| Weight | 245 kg |
Our Pilot Freeze Dryer is used in the pharmaceutical, biotechnology, and food industries for moisture removal, sample preservation, and long-term storage while maintaining structural integrity.
