Vacuum Drying Oven NVDO-100

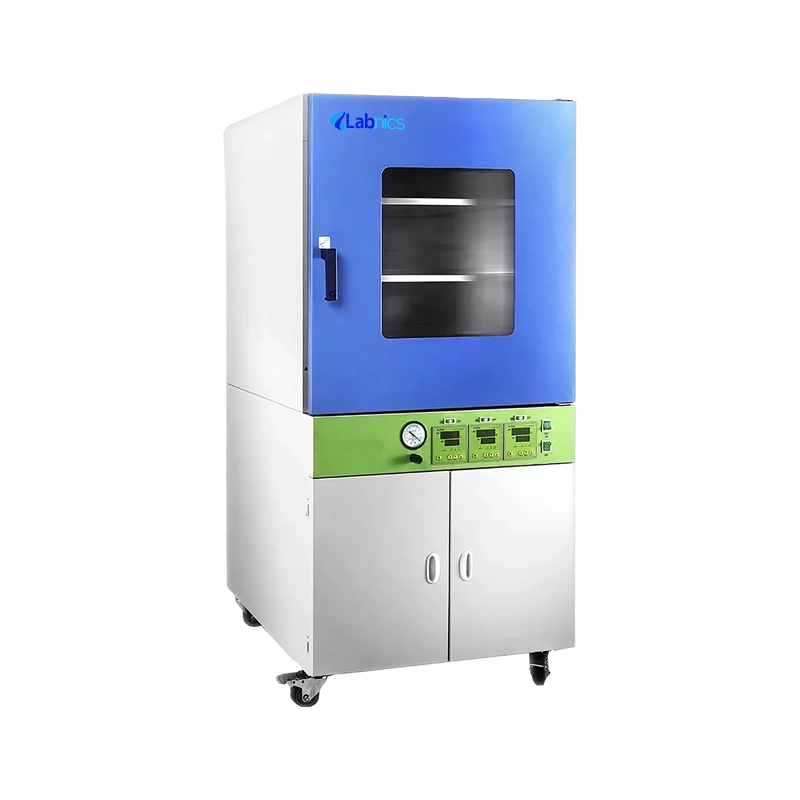

Name: Vacuum Drying Oven NVDO-100
Brand: Labnics
SKU: NVDO-100
Rating: 5 (16 reviews)

Vacuum Drying Oven NVDO-100 is a microprocessor-controlled instrument with built-in printer. Designed with polished stainless-steel chamber and tempered bulletproof double glass door with adjustable silicon sealing. Equipped with LCD display, small vacuum pump, inert gas valve, and RS485 connector. It offers a temperature range of RT +5 ˚C to 250˚C (up to 200 ˚C for NVDO-101). The unit is leakage-proof and is an ideal for heating, testing, and drying as well as storage.

Get Quote Download Catalog

Specifications

Temperature Range	RT + 5 to 250 ˚C
Temperature Fluctuation	± 1 ˚C
Vacuum Pressure	< 133 Pa
Display Resolution	0.1 ˚C
Volume	54 L
Chamber Size (W × D × H)	42 × 35 × 37 cm
Power Supply	AC 220 V, 50 Hz
Power Rating	1.4 W
Packaging Dimension (W × D × H)	80 × 70 × 69 mm
Net/Gross Weight	75/105 Kg

Features

✔ Microprocessor-controlled instrument, accurate and reliable operation
✔ Temperature range RT + 5 to 250 ˚C
✔ Sturdy ergonomic design, polished stainless-steel chamber; durable and easy to clean
✔ Tempered bulletproof double glass door with adjustable silicon sealing; leak-proof
✔ RS485 connector enables easy connection for quick data processing and analysis
✔ Vacuum inside the chamber fills it with inert gas, inflation pressure 0.1 MPa
✔ Incorporates small vacuum pump and inert gas valve
✔ Ideal unit for heating, drying, and testing, convenient for storage
