Metallurgy Microscope NMM-101 Catalog

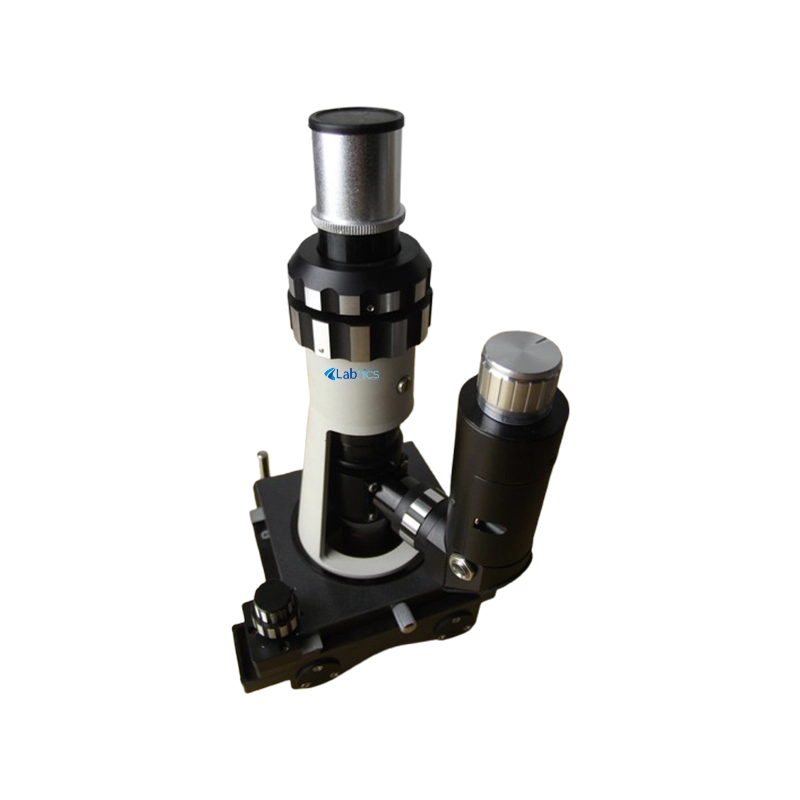

Metallurgy Microscope NMM-101 offers total magnification of 40X, 50X, 100X, 125X, 400X, 500X through various combinations of objective lenses and eyepieces. It features a 160mm mechanical tube length and a 25mm focusing range for clear observation of samples. Equipped with a vertical LED light source for improved illumination of specimens. Our portable microscope is powered by a 3.6V battery, ensuring reliable operation in field settings.

FEATURES

⇋ Compact and lightweight
⇋ Low heat emission
⇋ Long service life
⇋ User-friendly design
⇋ Interchangeable eyepieces and objectives

SPECIFICATIONS

Objective	Achromatic: 10X/0.25 N.A./7.3mm Plan: 40X/0.65 N.A./0.5mm
Eyepiece	10X/Φ18mm 12.5X/Φ13mm
Total Magnification	40X, 50X, 100X, 125X, 400X, 500X
Mechanical Tube Length	160mm
Focusing Range	25mm
Power Voltage	3.6V
Dimensions (H×W×T)	230 × 110 × 70 mm
Packing Dimensions	400 × 250 × 350 mm
Net Weight	750 gms
Gross Weight	4 kg

APPLICATIONS

Metallurgy Microscope is used to inspect jade, pottery, and bronze artifacts, facilitating surface observations, institutional framework analyses, and metallographic testing of metal materials.

STANDARD ACCESSORIES

Eyepiece: 10X, 12.5X

Objective: 10X,40X

Aluminum box

OPTIONAL ACCESSORIES

Magnetic stage

Ordinary USB camera
