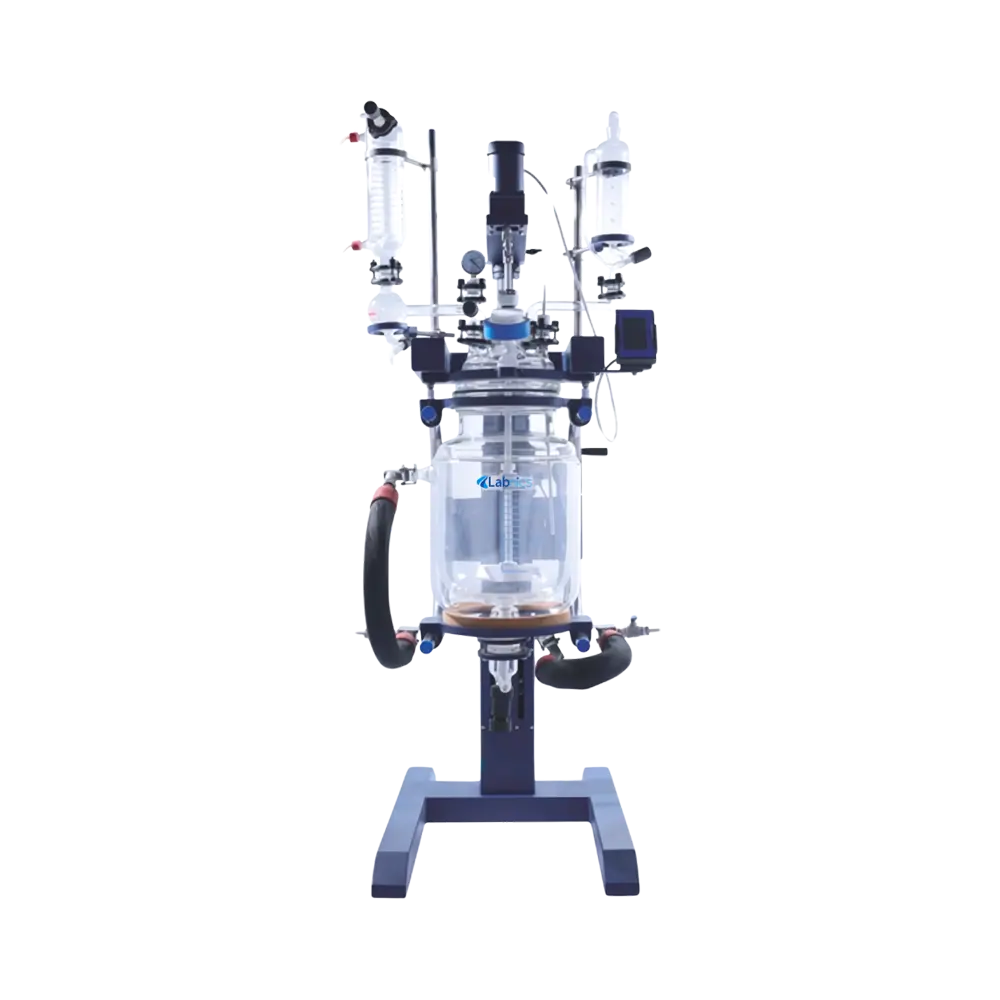

Jacketed Glass Reactor NJGR-301 has a 20-liter capacity for efficient laboratory-scale reactions. It offers a wide temperature range from -80°C to +250°C for versatile applications. This unit includes a 0.4 m² condensation area to ensure effective vapor condensation. It provides 360° kettle rotation for easy loading, observation, and cleaning. Our reactor is made of high borosilicate glass for superior thermal and chemical resistance.
| Capacity | 20L |
| Jacket capacity | 6L |
| Temperature range | -80°C to +250°C |
| Temperature accuracy | ±1°C |
| Vacuum level | 0.098MPa |
| Stirring speed | 120rpm |
| Stirring port | Φ50mm flange mouth |
| Condensation reflux | DN25 ball grinding mouth |
| Constant pressure funnel port | DN25 ball grinding mouth |
| Pressure relief port | 35mm flange mouth |
| Temperature measuring port | 35mm flange mouth |
| Solid closing opening | Φ80mm flange mouth, inner diameter 60mm |
| Condensation area | 0.4m2 |
| Mix paddles | Φ15×700H (mm) leafing 160mm |
| Condenser | Φ100×420H (mm), lower Φ50mm flange mouth |
| Return elbow | Lower Φ50mm flange mouth, left 50mm ball grinding mouth |
| Constant pressure funnel | 1L |
| Relief value | 35mm standard plug valve bleed nozzle (pagoda point) outer diameter 12mm |
| Inlet and outlet circulation ports | Φ35mm flange mouth is equipped with a 6-point buffer device, an external interface with 6 points of filament mouth |
| Discharge opening | Φ80mm flange, Φ33mm discharge hole |
| Vacuum pumping nozzle | Pagoda joint outer diameter 12mm |
| Inlet and outlet nozzle of the condenser oil | Pagoda joint outer diameter 12mm |
| Host lifting stroke | 320mm |
| Rotation of the kettle body | 360° |
| Kettle inner diameter | 290mm |
| Kettle outer diameter | 330mm |
| Kettle inner length | 386mm |
| Stirring motor power consumption | 120W |
| Lifting motor power consumption | 120W |
| Overall power consumption | 240W |
| Power supply | AC220V/50Hz |
| Dimension | 1100×860×2200mm |
| Packaging dimension | 1510×1150×650mm |
| Net weight | 140kg |
| Packaging weight | 200kg |
Jacketed Glass Reactor NJGR-301 is used for controlled chemical reactions requiring precise temperature and vacuum conditions to ensure safety and efficiency. It is applied in laboratories, pharmaceutical research, chemical synthesis, and petrochemical testing.
