Product Data Sheet · Laboratory Equipment

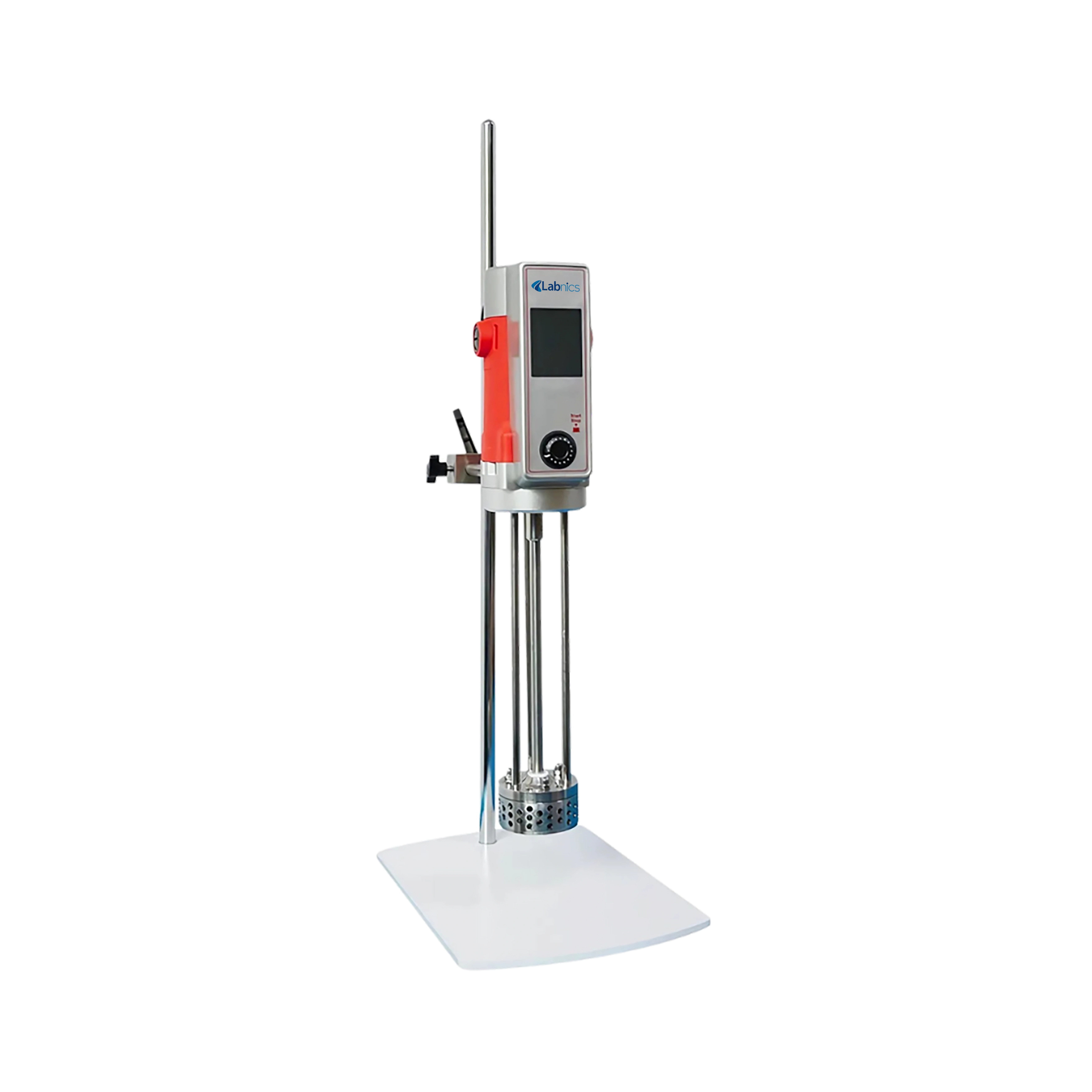

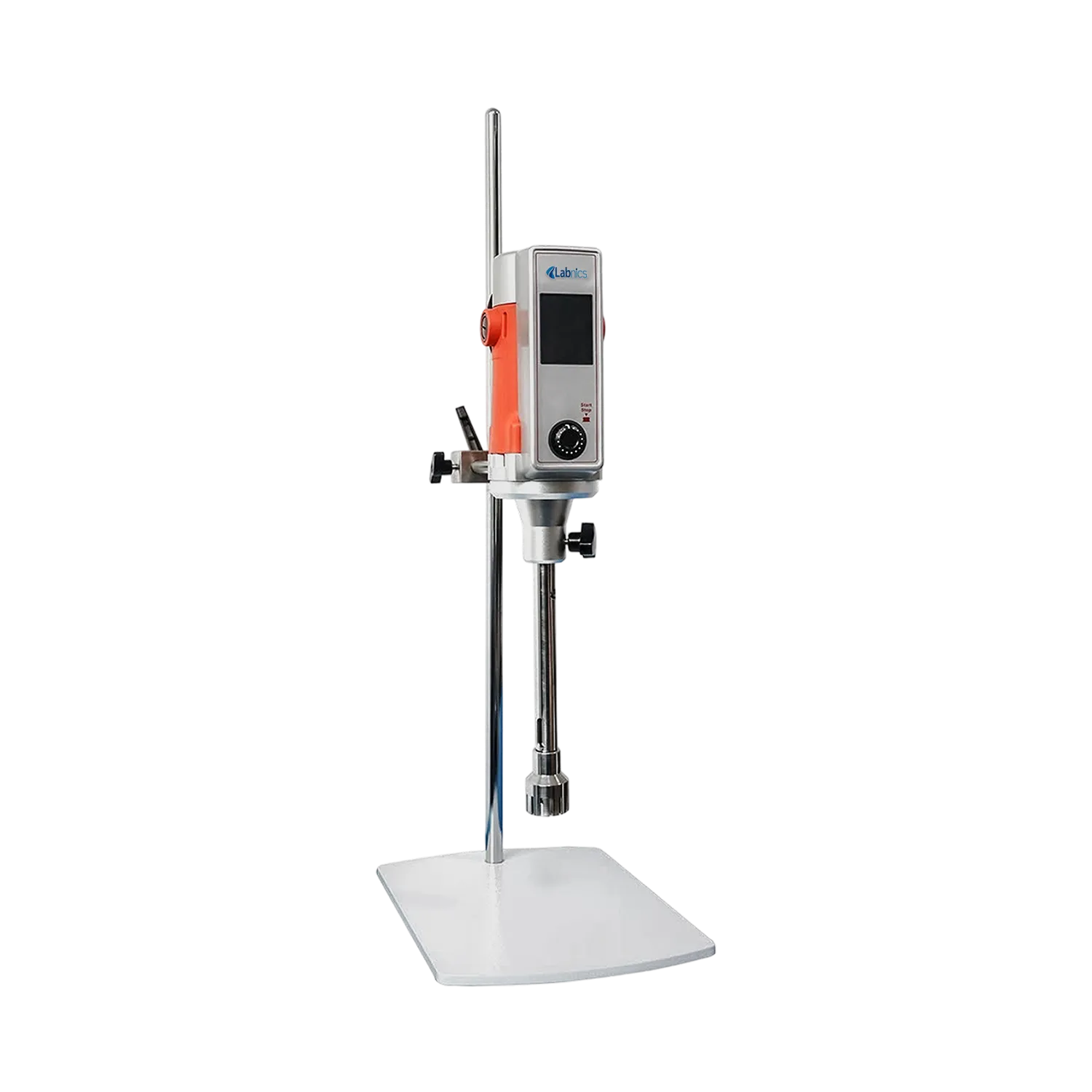

High Shear Homogenizer NHISH-100 provides a speed range of 1000–28000 RPM with a torque capacity of 35 N·cm. It offers adjustable speed control for precise and efficient operation. The unit supports continuous processing for uninterrupted applications. Its compact design, overload protection, and TFT-LCD display ensure reliable and convenient operation.
| Speed Range | 1,000–28,000 rpm |
|---|---|
| Speed Control | Digital stepless |
| Output Power | 500 W |
| Timer Range | 1–1,000 min |
| Display | 2.8-inch TFT display / TFT-LCD |
| Dynamic Speed Detection | Yes |
| Overload Protection | Yes |
| Real-Time Torque Curve Display | Yes |
| Wetted/Head Material | SS316L Stainless Steel |
| Standard Head | 25G |
| Optional Head Sizes | 8/10/12/18/25/30/36G |
| Maximum Ambient Temperature | ≤40 °C |
| Maximum Relative Humidity | ≤80% |
| Maximum Material Viscosity | Up to 8,000 cP |
| Maximum Rotor Linear Speed | Up to 27 m/s |
| Maximum Processing Volume | Up to 13,000 mL / 13 L |
| Overall Dimensions | 215 × 310 × 720 mm |
| Net Weight | 9.2 Kg |
| Gross Weight | 11 Kg |
