Laboratory Equipment
Product Data Sheet · Laboratory Equipment

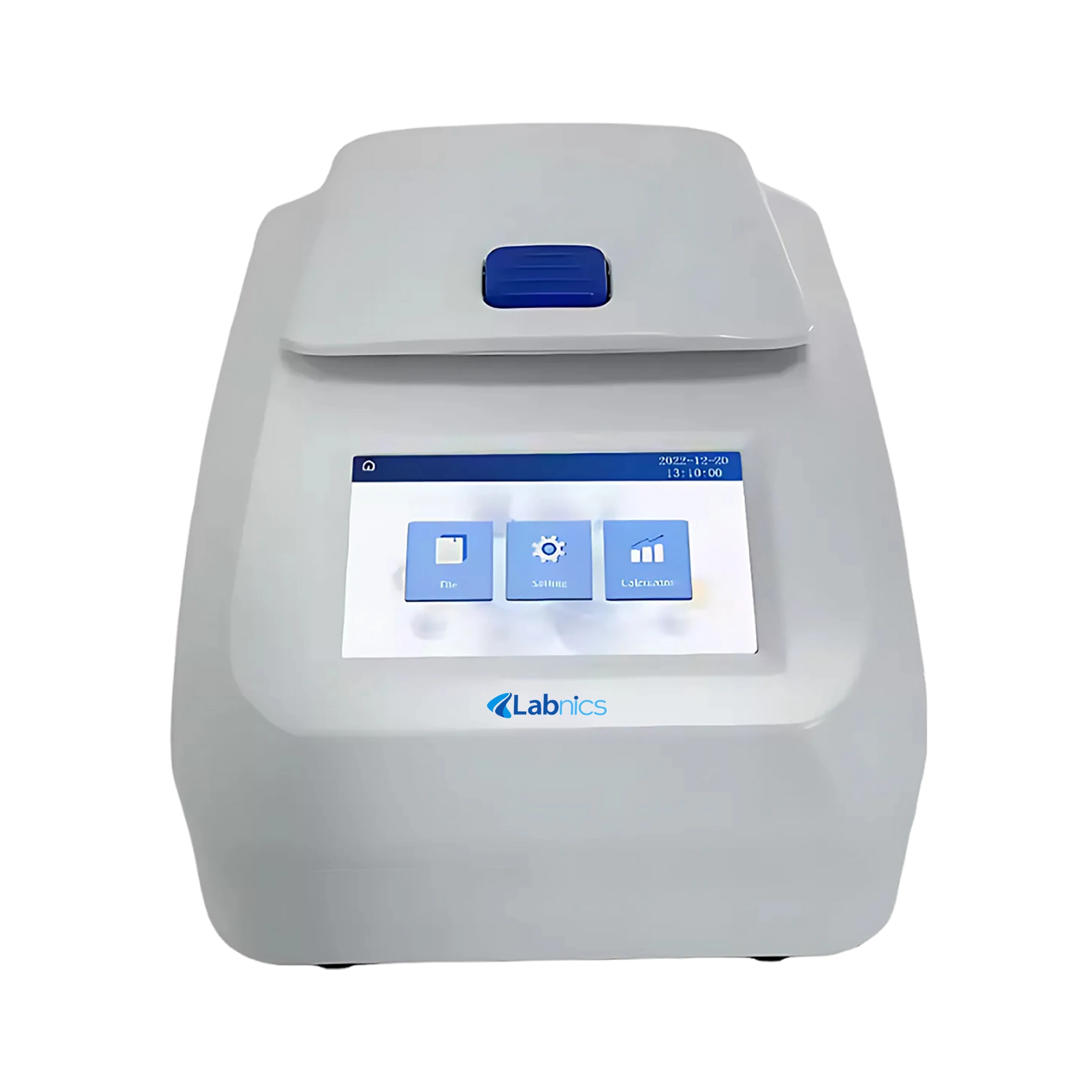

Gradient Thermal Cycler NGTC-500 supports 32×0.2 ml capacity with a temperature range of 4 to 105°C for PCR compatibility. This cycler ensures precise thermal control to support a variety of DNA amplification protocols. Our unit includes a gradient function, allowing efficient optimization. It features a user-friendly 4.3-inch color touch screen for easy navigation. It enables fast cycling performance and supports high-throughput workflows with reliable results.
| Capacity | 32×0.2ml |
|---|---|
| Block Temperature Range | 4 to 105℃ |
| Temperature Display Accuracy | 0.1℃ |
| Block Temperature Uniformity | ≤±0.25℃ |
| Numbers of Peltier | 2 |
| Block Temperature Accuracy | ±0.2℃ |
| Timer | 1s to 59min59sec/0 Infinite |
| Heating Lid Temperature Range | 30 to110℃ |
| Heating Up Rate | 5℃/s |
| Cooling Down Rate | 4℃ /S |
| Gradient Temperature Range | 30 to 105℃ |
| Gradient Set Span | Maximum 30℃ |
| Gradient Temperature Accuracy | ±0.3℃ |
| Gradient Temperature Uniformity | ±0.3℃ |
| Temperature Control ways | Block or Tube |
| Timer Increasing / Decreasing | - 599 to 599 S for Long PCR |
| Temperature Increasing / Decreasing | -9.9 to 9.9℃ for Touchdown PCR |
| LCD display | Touch screen display |
| Programs stored | 200 |
| Maximum Cycles | 99 |
| Maximum Steps | 30 |
| Power Failure Recovery | Yes |
| Pause Function | Yes |
| 16℃ Temperature Holding Function | Infinite |
| Real-time operation status | Image-text displayed |
| Power | 225W |
| Voltage Range | AC110V to 220V 50 to 60Hz |
| Dimension (L×W×H) | 172×243×145 mm |
| Net Weight | 2.3 kg |
