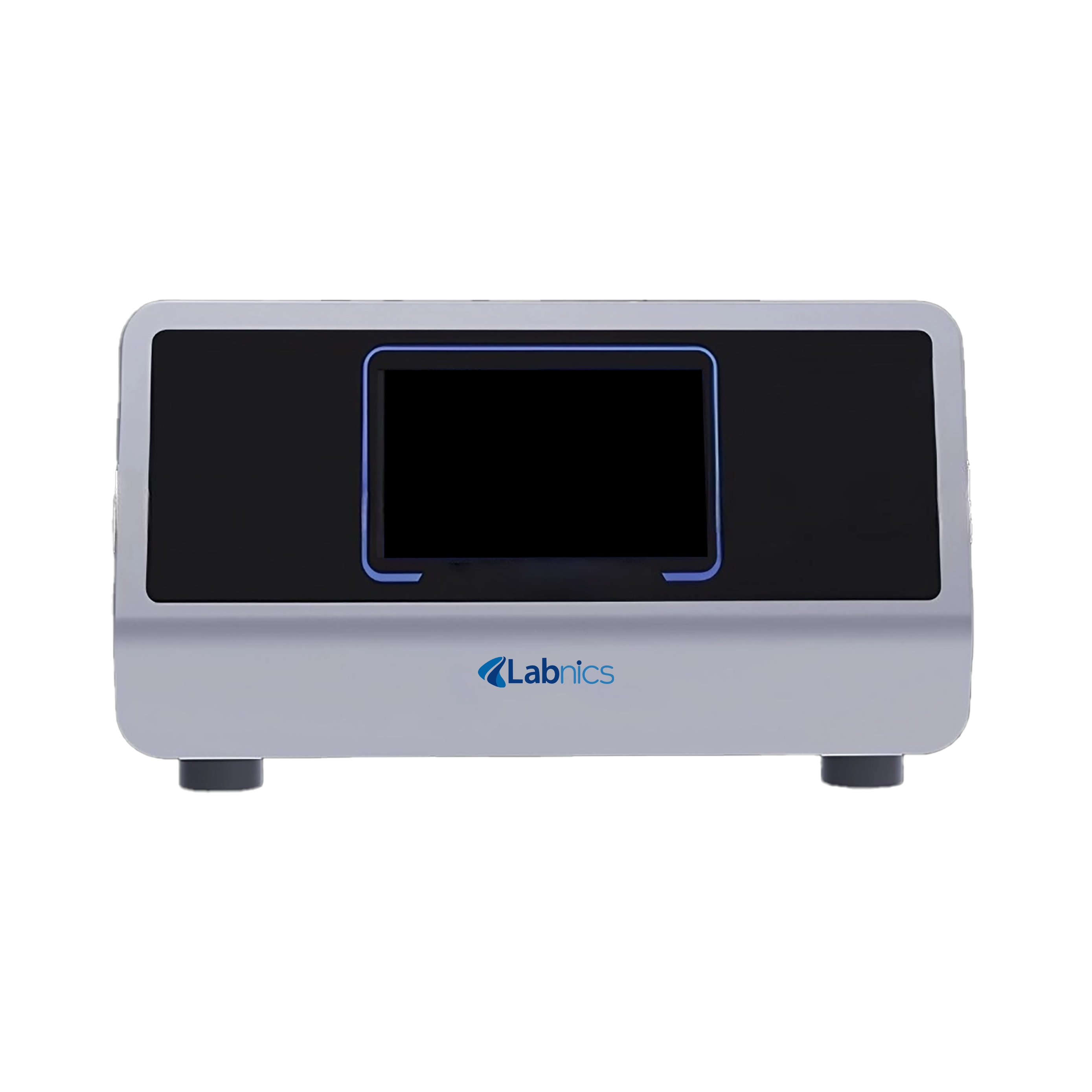

Differential Scanning Calorimeter NDSC-101 operates from room temperature to 600℃, covering a broad range of thermal tests. It features a DSC range of 0 to ±2000mW for accurate heat flow measurements. This unit incorporates a high-frequency core control processor for faster data processing and efficient control. It has independent atmosphere control for flexible air path settings. Our calorimeter supports a USB interface for easy data transfer and automatic baseline correction.
| DSC range | 0 to ±2000mW |
| Temperature range | Room temperature to 600℃ |
| Temperature resolution | 0.001℃ |
| Temperature fluctuation | ±0.01℃ |
| Temperature repeatability | ±0.01℃ |
| Toggle rate | 16.6Hz |
| Heating rate | 0.1 to 100℃/min |
| DSC noise | 0.001mW |
| DSC resolution | 0.01uW |
| DSC accuracy | 0.001mW |
| DSC sensitivity | 0.001mW |
| Experimental mode | FTC and STC can be set arbitrarily |
| Program temperature control | Flexible setting of 12-stage temperature control throughout the entire stage |
| Temperature control method | Heating, constant temperature, cooling |
| Scan type | Heating, cooling, and isothermal scanning |
| Display mode | 24-bit color 7-inch LCD touchscreen display |
| Data interface | Standard USB interface |
| Sampling rate | 1 to 10Hz programmable settings |
| Power supply | AC220V/50Hz or customized |
Differential Scanning Calorimeter NDSC-101 is used to analyze thermal properties, phase transitions, and material behaviors under controlled temperature. It is widely applied in materials science, pharmaceuticals, food, and chemical industries for research, development, and quality control.
