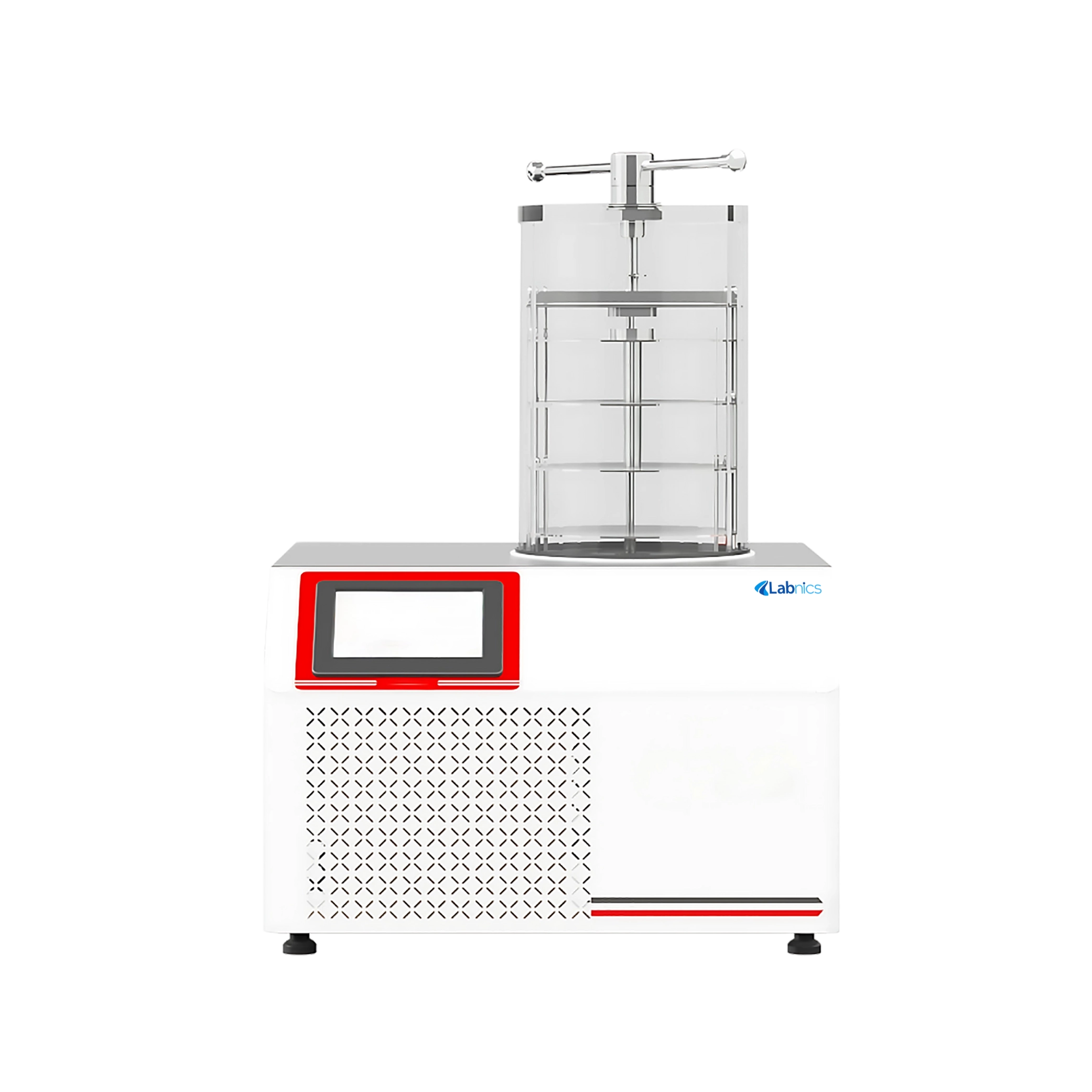

Benchtop Freeze Dryer NBFD-202 offers a tray size of Φ195×24 mm with a height of 40 mm between trays. It features a USB interface for easy backup and data export. This unit features a frequency conversion refrigeration system for enhanced efficiency. It includes a noise-reducing compressor for stable and quiet performance. Our Freeze Dryer ensures reliable freeze-drying with precise control and monitoring.
| Type | Stoppering chamber |
| Freeze Area | 0.09 m² |
| Water Capture Capacity | 4 kg/24h |
| Cold Trap Size | Φ215×220 mm |
| Tray Size | Φ195×24 mm |
| Tray | 4 (A, B), 3 (C, D) |
| Loading Capacity | 1500mL (A, B); 1200mL (C, D) |
| Height Between Trays | 40 mm |
| Freezer Rack Size | Φ214×85 mm |
| Limit Vacuum | Less than 1Pa |
| Cold Trap Temperature | -60°C |
| Optimal Temperature Range | 10°C to 30°C |
| Power Consumption | 0.9 kW |
| Power Supply | AC220V±10%, 50Hz |
| Dimensions | Main unit: 600 × 545 × 375 mm Chamber : 480 × 635 × 850 mm |
| Net Weight | 85 kg |
| Gross Weight | 100 kg |
Benchtop Freeze Dryer NBFD-202 is ideal for laboratories and research facilities requiring precise sample drying. It supports pharmaceutical, biological, and chemical applications by preserving sample integrity.
