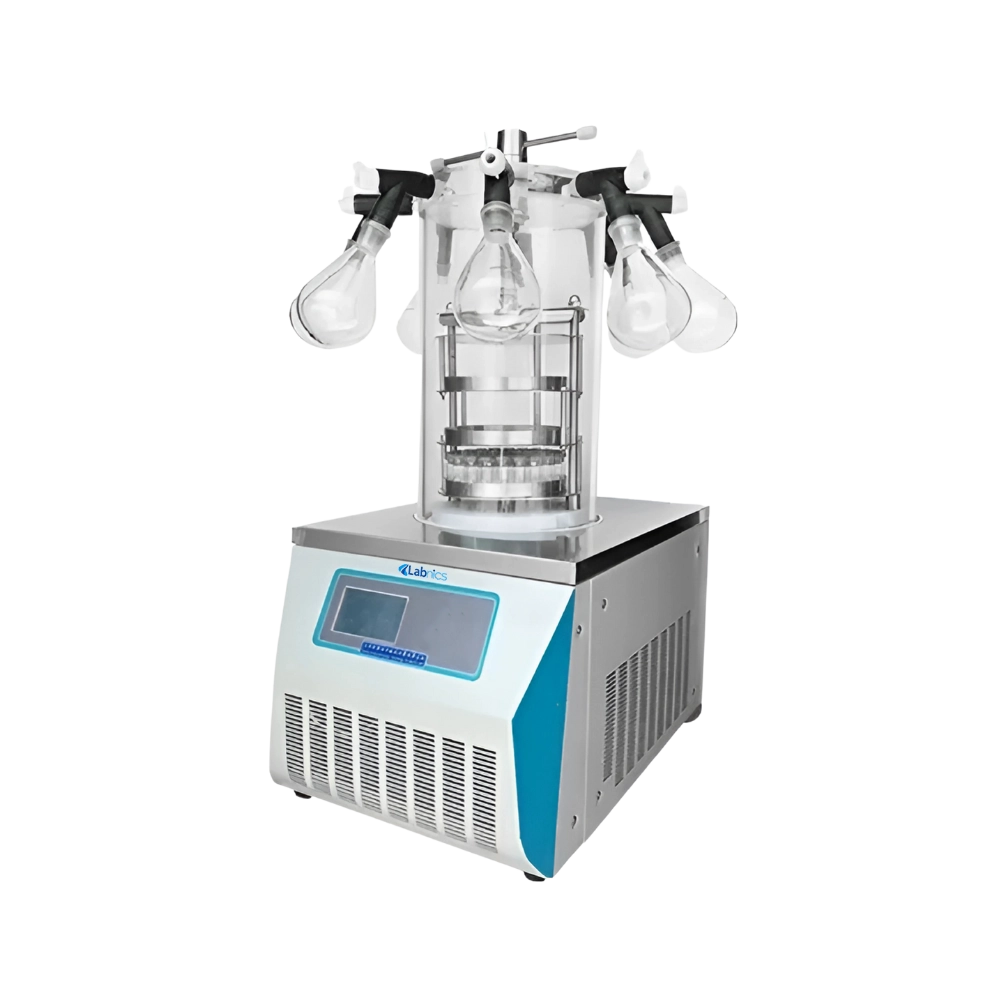

Benchtop Freeze Dryer NBFD-103 has a sample tray of Φ180 × 3 and a shelf spacing of 70 mm. It includes a large-opening condenser with external coils and pre-freezing functionality. This unit is equipped with a USB port for easy data transfer. It features a colour LCD touchscreen for clear display and easy operation. Our benchtop freeze dryer ensures reliable performance with a stainless steel internal structure.
| Drying area | 0.08 m² |
| Condenser temperature | -50°C or -80°C |
| Vacuum degree | Less than 10 Pa |
| Condenser capacity | 3 to 4 kg/24h |
| Sample tray | Φ180 × 3 |
| Shelf spacing | 70 mm |
| Shelf temperature range | Ambient temperature to +25°C |
| Bulk liquid capacity | 0.8 L |
| Vial capacity | Φ12mm: 492 pcs Φ16mm: 279 pcs Φ22mm: 147 pcs |
| Vacuum Pump Flow Rate | 2 L/S, 7.2 m³/h |
| Defrosting | Off Cycle Defrosting |
| Manifold | 8 ports |
| Flask | 1000 ml, 500 ml, 250 ml, 100 ml, 50 ml |
| Power Consumption | 970W |
| Power Supply | 220V/50 Hz |
| Dimension | 610 × 450 × 910 mm |
| Weight | 80 kg |
Benchtop Freeze Dryer NBFD-103 is used for efficient moisture removal under low temperatures and vacuum, and it is ideal for pharmaceuticals, food, and biological samples.
