Product Data Sheet · Laboratory Equipment

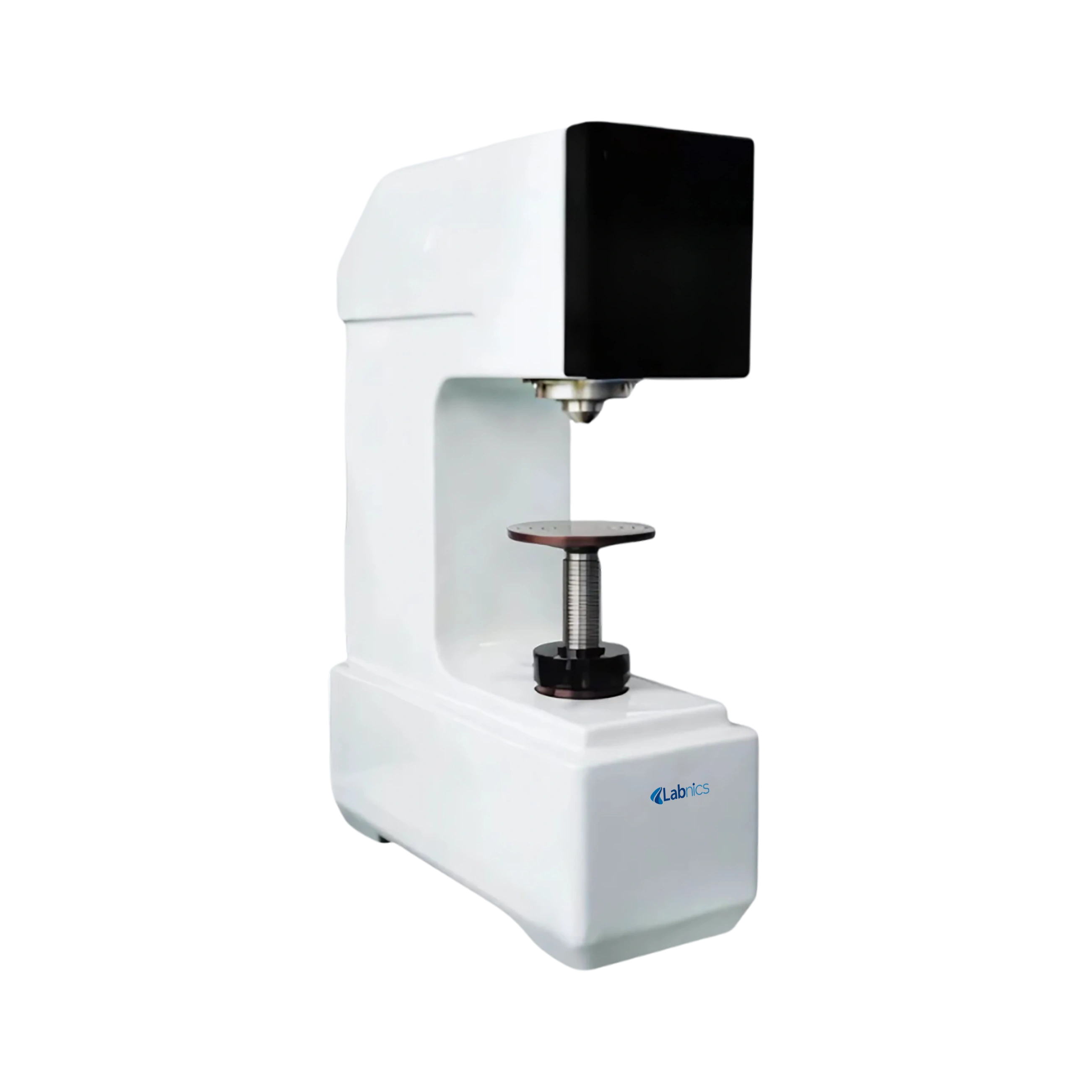

Automatic Double Rockwell Hardness Tester NADRHT-100 offers a test force range from 3 kgf to 150 kgf with an automatic unloading system. It features Z-axis automatic rising and homing with one-key completion. Our built-in printer provides instant data transfer and record keeping. It offers a high resolution, ensuring precise and dependable hardness measurements. This has a wide specimen capacity suitable for advanced research applications in laboratories.
| Initial Test Force | 3kgf (29.42n), 10kgf (98.07n) |
|---|---|
| Total Test Forces | 15 kgf (147.1 N), 30 kgf (294.2 N), 45 kgf (441.3 N), 60 kgf (588.4 N), 100 kgf (980.7 N), 150 kgf (1471 N) |
| Loading Method | Automatic Test (Loading / Dwell / Unloading) |
| Table Operation | Z-axis Automatic Rising and Homing, One-Key to Complete |
| Test Scales | HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| Conversion Scales | HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBW |
| Data Output | Built-in Printer, RS232 Interface |
| Resolution | 0.1 HR |
| Dwell Time | 0 to 99 s |
| Maximum Height of Specimen | 220 mm |
| Throat Depth | 200 mm |
| Standards Executed | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension | 780 x 465 x 920 mm |
| Weight | 106 kg |
Diamond rockwell indenter -1pc
ф1.588mm ball indenter - 1pc
Large,midlle plane test table- 1 pc,
V-shaped test table - 1 pc
Standard hardness test block-3 pcs
Standard superficial rockwell hardness block- 2 pcs
Fuse 2A - 2 pcs
Power cable - 1 pc
Anti-dust cover- 1 pc
