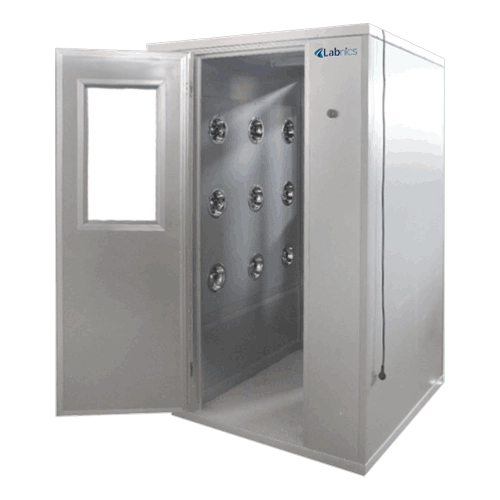

Air Shower NAS-206 Catalog

Air Shower NAS-206, commonly known as "clean room air shower" or "product air shower" is a novel structure which bathes the object/person with filtered air that passes through it. Air shower is self-contained with low energy consumption and easy maintenance usually located between clean room and outside environment. Equipped with HEPA-filtered air jets enables decontamination by clearing off dust and dirt particles from the bodies of Cleanroom personnel. The adaptable nozzle angle effectively blows out dust attached on the person/object surface.

FEATURES

⇋ Air shower is partial purifying equipment of strong universality
⇋ HEPA high efficiency air filter that filters about 0.3 micron dust particles up to 99.99
⇋ An automatic interlocking barrier is placed between clean room and un-clean room
⇋ LCD control screen with intelligent alarm, timing, air shower and lighting
⇋ Stainless steel nozzle consists of corrosion resistance, cleaning resistance, cleaner blowing
⇋ Floodlight is attached for easy use
⇋ Designed with, low consumption, energy saving and convenient maintenance
⇋ Blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower
⇋ Air shower is often formed with stainless steel, powder coated mild steel or high grade thermoplastic

SPECIFICATIONS

Number	Six person-Two side air blow
Nozzle Number	48
Diameter of nozzle	Diameter 30 mm
Caliber of nozzle	15-20 m/s
Type of filter	HEPA
Efficiency of filter	Granularity is less than 0.5 µm, dust must be 99.99%. (sodium flame)
Size of air shower area	700×3600×1900 mm
Size of air shower	1300×3600×2050 mm
Power	AC 220 V 50 Hz
Max power	2200 W
Weight	700 kg

APPLICATIONS

Air shower series are used in various field such as colour packing, brewage, biological engineering, foodstuff, machinery, electron, medicine, and other industries as well as scientific research fields.
